Product details

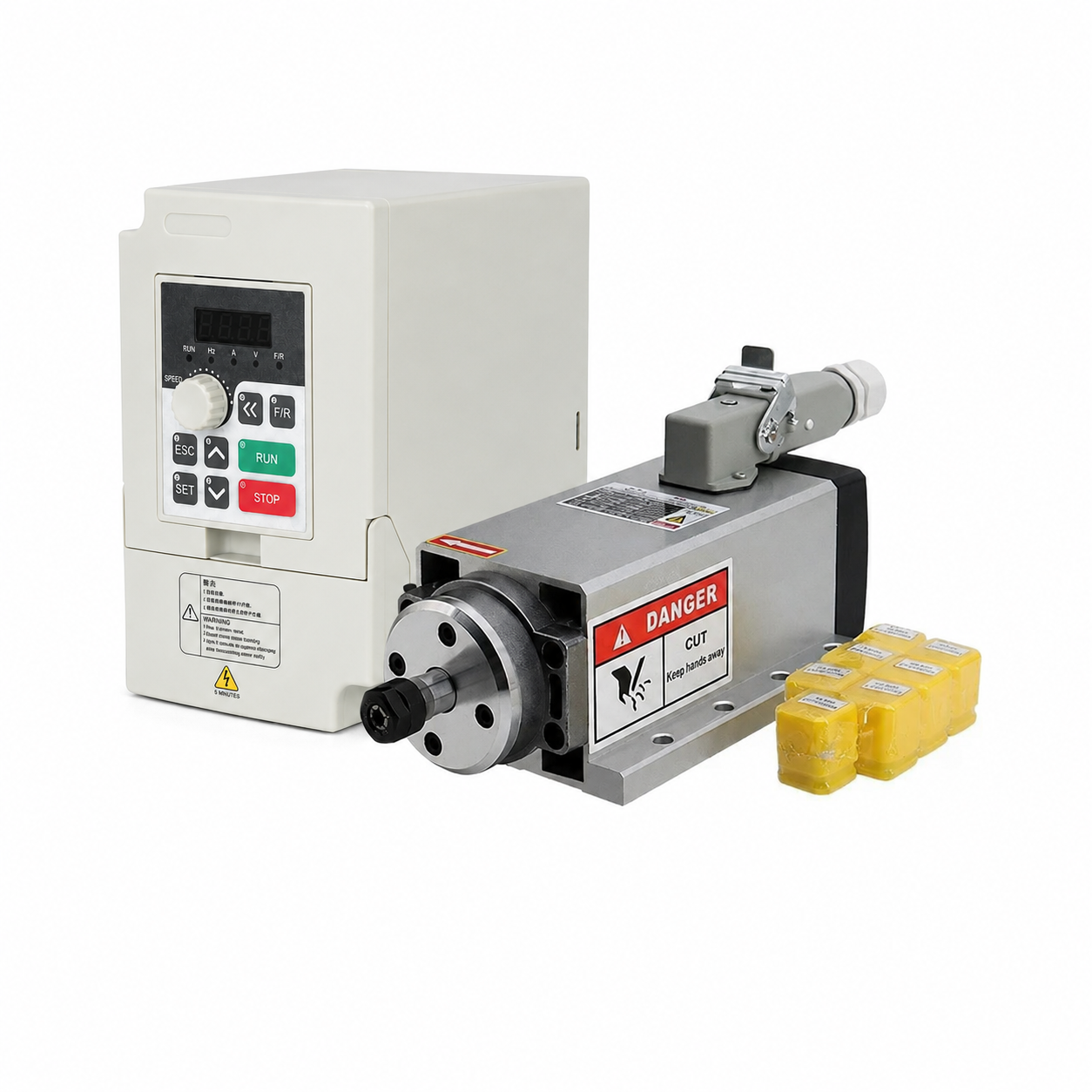

This 1.5kW spindle and VFD kit is a compact, reliable solution for CNC routers and engraving machines. The air cooled square spindle provides stable cutting performance without the need for pumps or coolant, and the included 1.5kW VFD (H100 Mini or YL Series) allows precise control of spindle speed for different materials.
This kit also includes a 7-piece ER11 collet set, making it ready for a wide range of tool sizes.
Includes:
-
1× 1.5kW Air Cooled Square Spindle
-
1× 1.5kW VFD (H100 Mini or YL Series)
-
7× ER11 Collets (1mm, 2mm, 3mm, 4mm, 5mm, 6mm, 7mm)
Spindle Specifications:
-
Power: 1.5kW
-
Voltage: 220V
-
Current: 6A
-
Collet System: ER11 (7-piece set included)
-
Bearings: C7002 × 2 + C7005 × 2
-
Speed: 0–24,000 RPM
-
Frequency: 0–400Hz
-
Runoff: < 0.005mm
-
Cooling: Air Cooled
-
Body Style: Square
VFD Specifications (YL Series):
-
Power Rating: 1.5kW
-
Input Voltage: 220V (Single Phase)
-
Output Voltage: 220V (Three Phase)
-
Frequency Range: 0–400Hz
-
Use: CNC spindle speed control
VFD Specifications (H100 Mini Series):
-
Power Rating: 1.5kW
-
Input Voltage: 220V (Single Phase)
-
Output Voltage: 220V (Three Phase)
-
Frequency Range: 0–650Hz
-
Use: CNC spindle speed control
