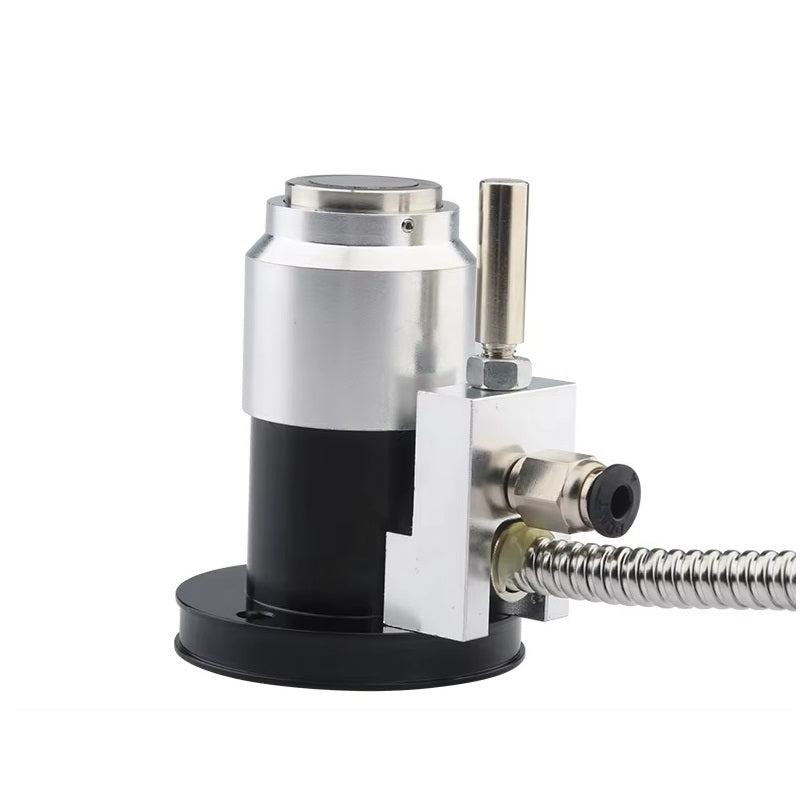

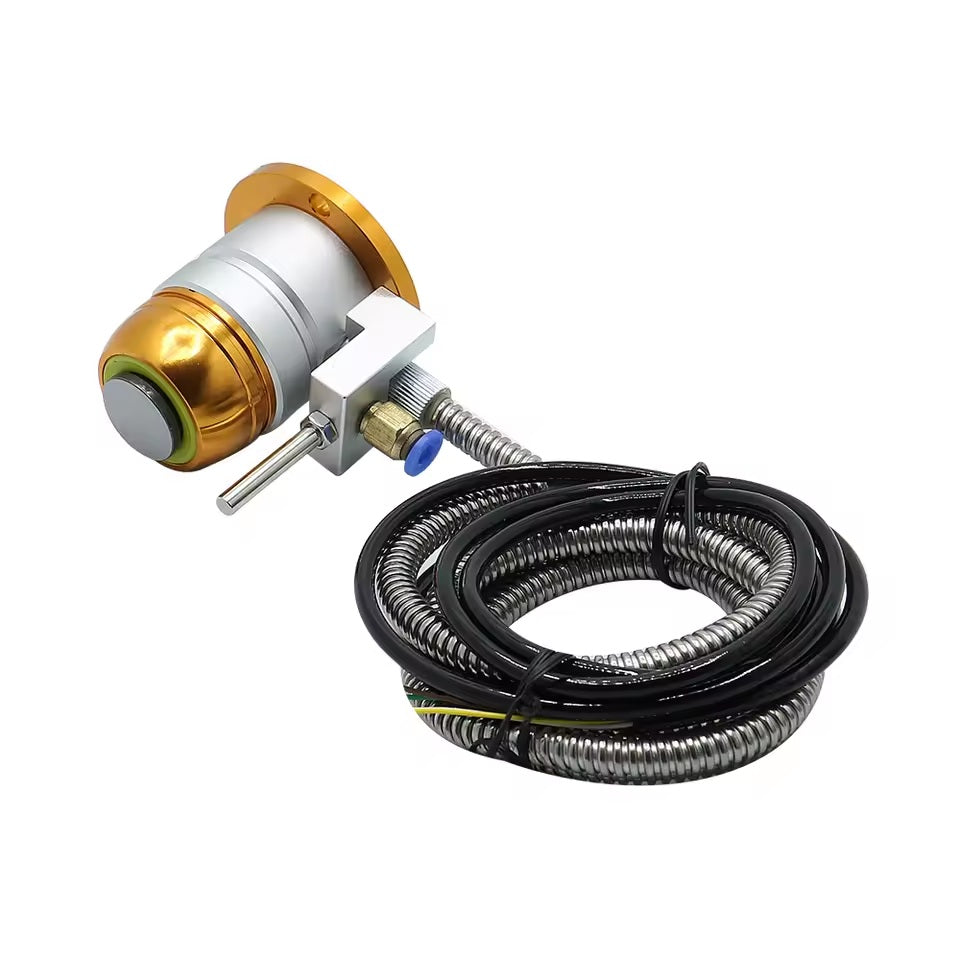

Improve your CNC workflow with this Z-Axis Automatic Tool Height Sensor, designed to quickly and accurately reset tool height after tool changes. This device increases efficiency, reduces setup time, and improves machining consistency by ensuring precise Z-axis referencing.
With high repeatability and durable contact materials, it is ideal for CNC routers, milling machines, and automated tool setting systems.
Includes:

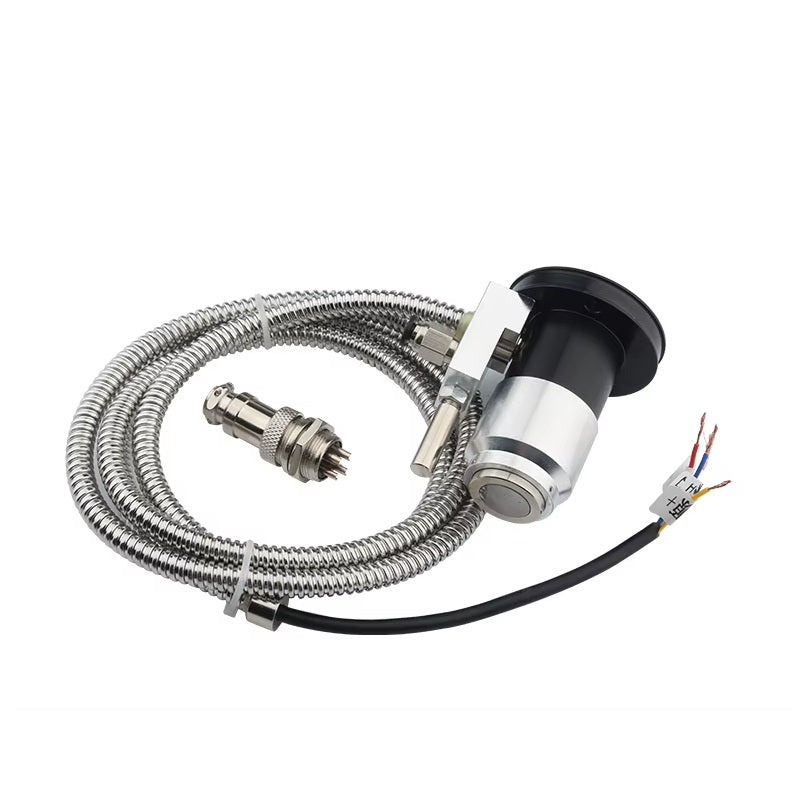

1× Z-Axis Automatic Tool Height Setter (3m cable attached)
Specifications:
-
Switch Type: Normally Open (NO)
-
Repeatability: 0.001mm
-
Contact Force: 1.5N
-
Contact Material: Cemented Carbide
-
Stroke: 5mm
-
Cable: 3m Oil-Resistant 4-Core Cable
-
Operating Voltage: 24V
-
Current: 10mA
