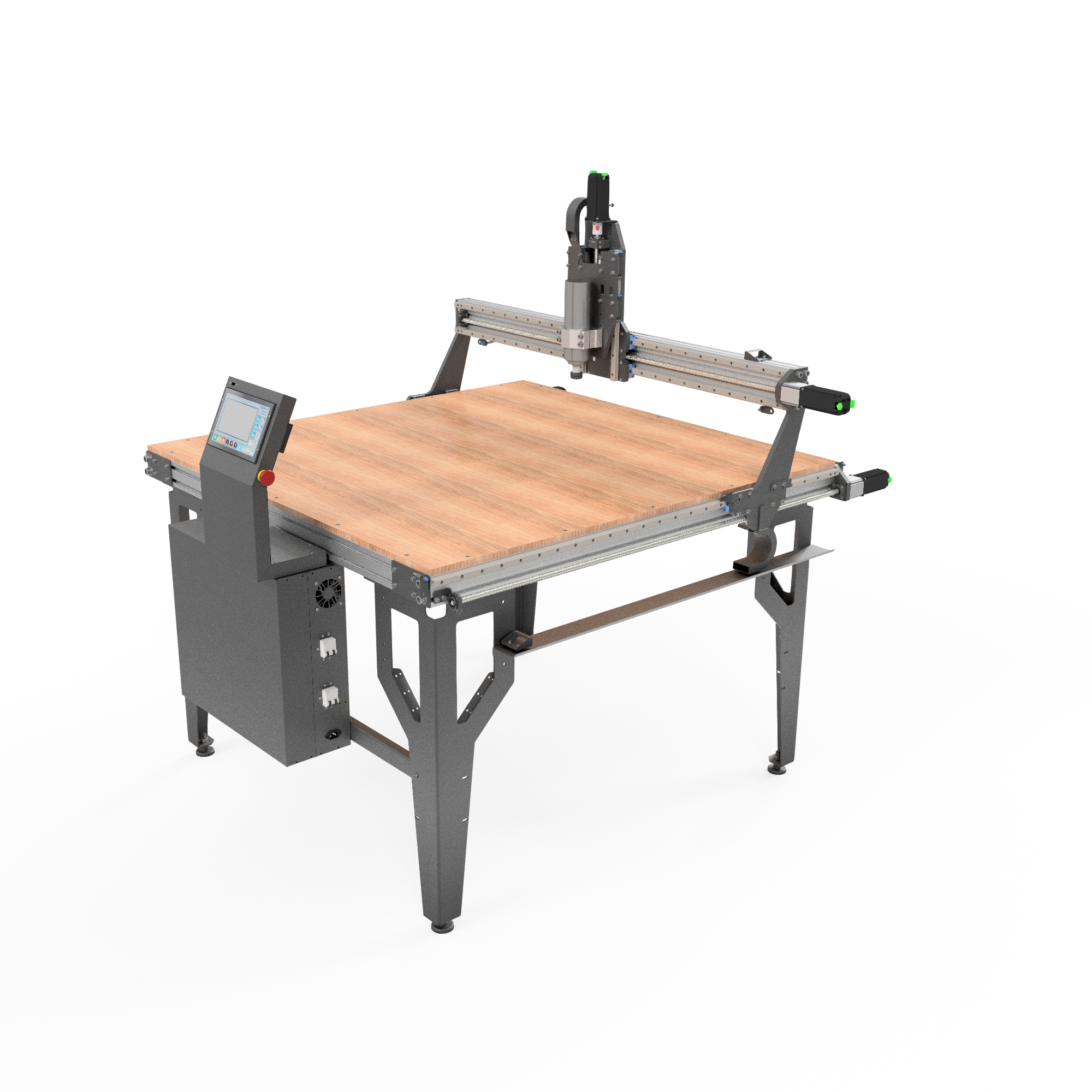

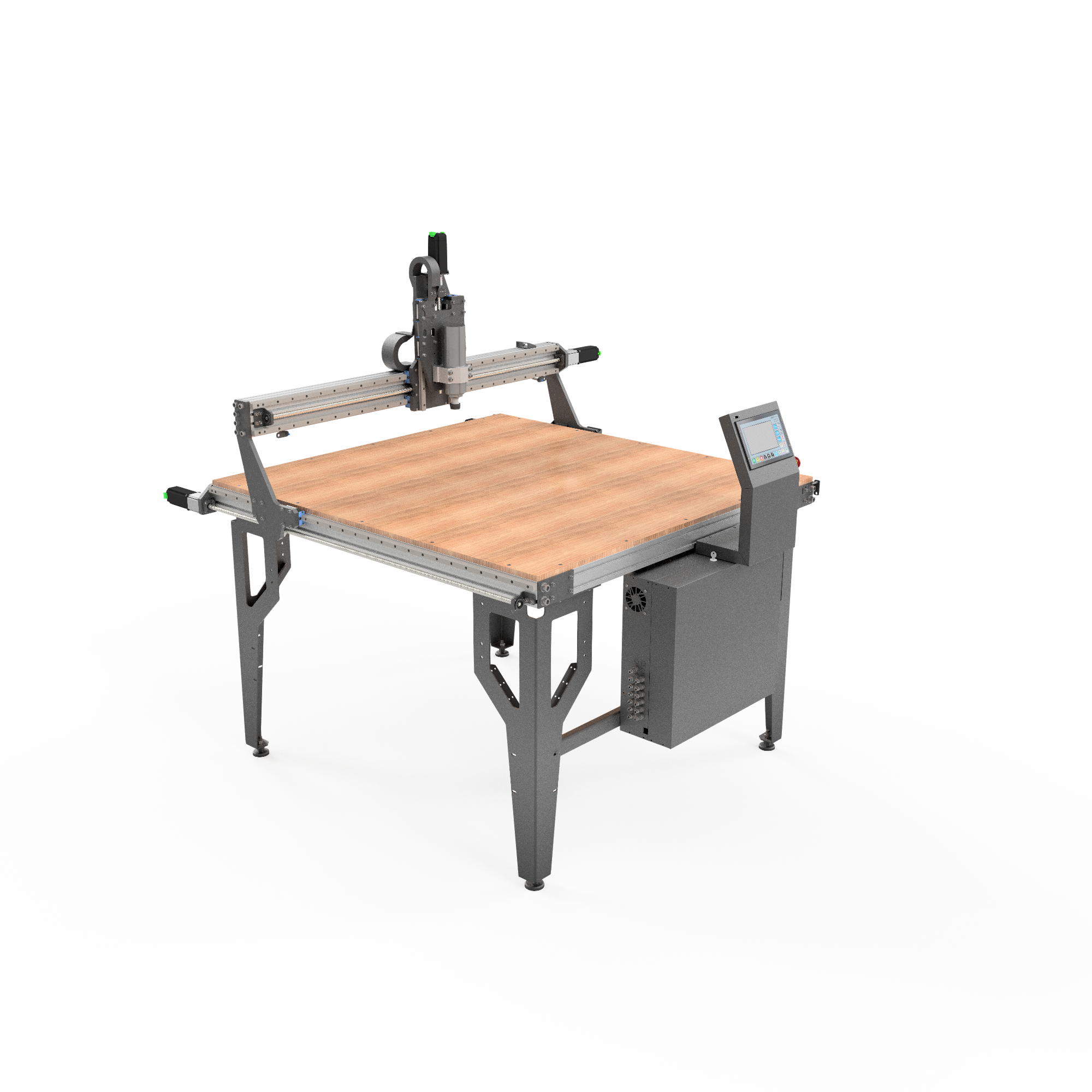

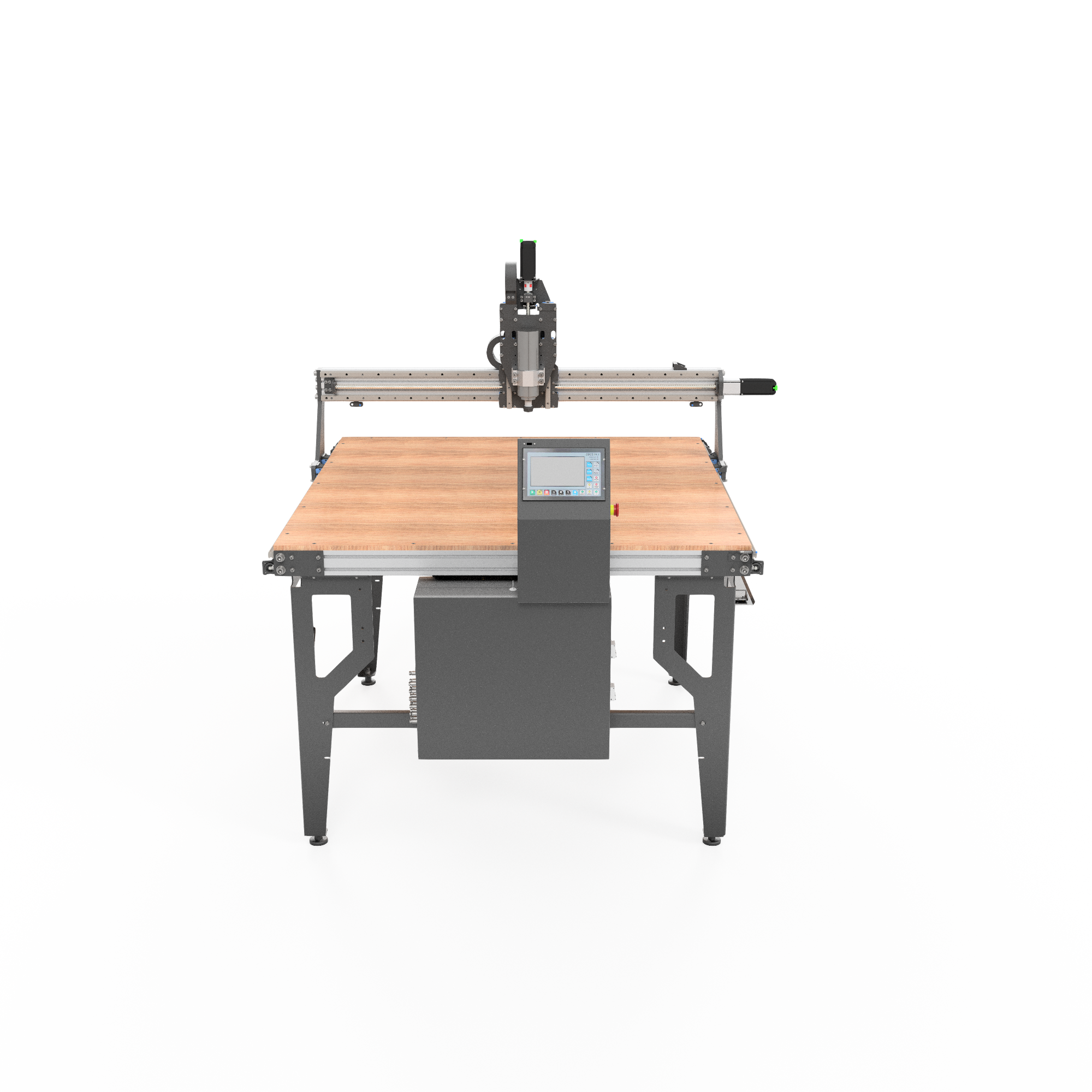

Pro Series 1515 CNC Router

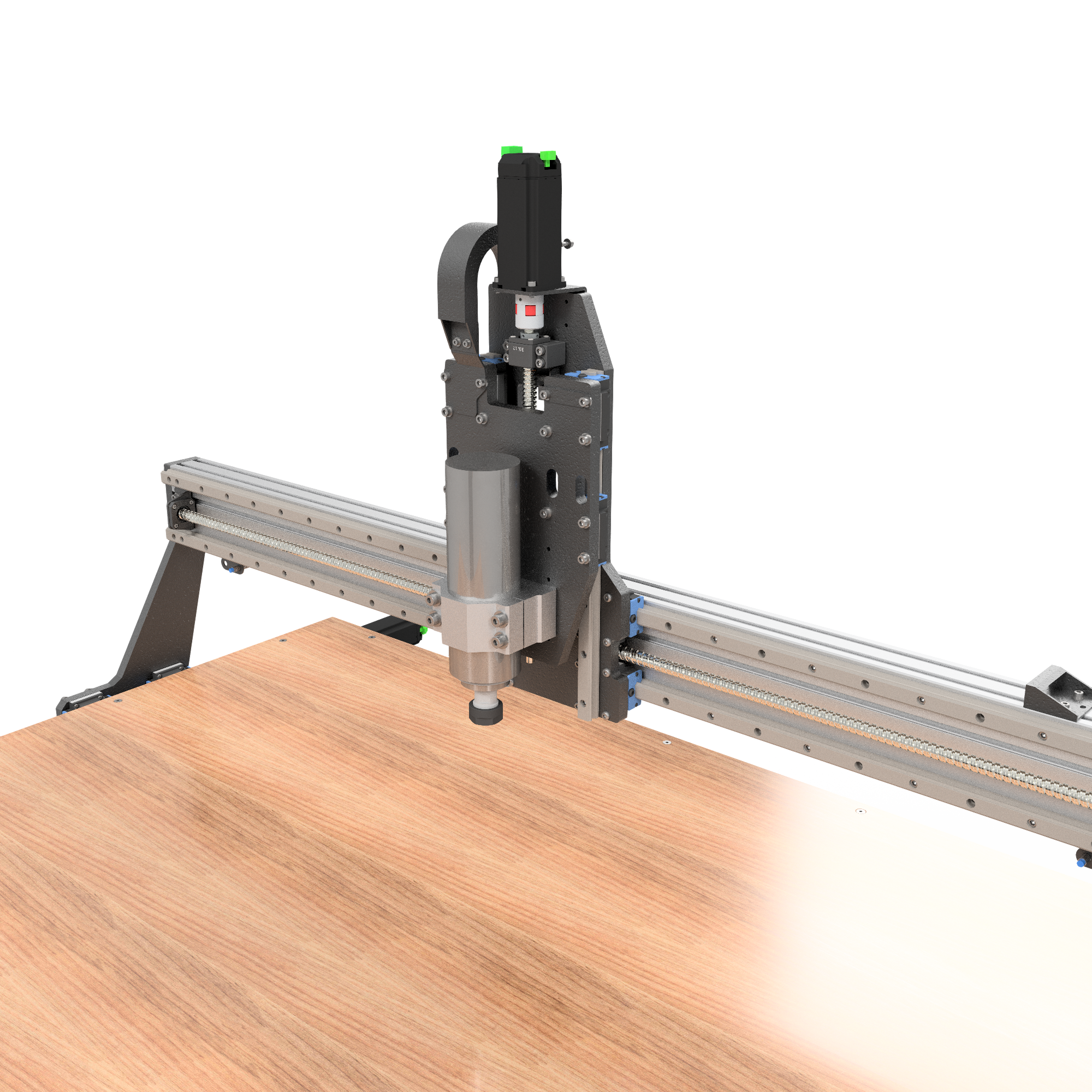

The Pro Series 1515 CNC Router is a versatile mid-range CNC machining solution designed for workshops, businesses and manufacturers that require a larger working area without moving into a full industrial-scale machine. With HGR20 linear guide rails paired with HGW20CC bearing blocks on all axes, precision ball screw drive systems and a 2.2kW water-cooled spindle, the Pro Series 1515 delivers a strong balance of rigidity, accuracy and performance for routing, cutting, engraving and general CNC machining applications.

As part of CNC Online’s Pro Series, the 1515 sits between our entry-level CNC machines and our top-of-the-range Elite Series. Its larger 1440mm × 1500mm bed provides additional capacity for larger materials and projects, while 3Nm Nema 23 closed-loop motors with integrated drivers provide reliable motion control. The X and Y axes use SFE1616 ball screws, while the Z axis uses an SFU1605 ball screw for accurate vertical positioning.

Machine control is handled by the DDCS V4.1 3-Axis Offline CNC Controller, allowing the router to operate independently without requiring a dedicated computer during machining. Adjustable mounting feet allow the machine to be levelled correctly during installation for improved stability and consistent machining performance.

Please note that machines include a 6-8 week lead time.

Includes:

• 1 × Pro Series 1515 CNC Router

Specifications
