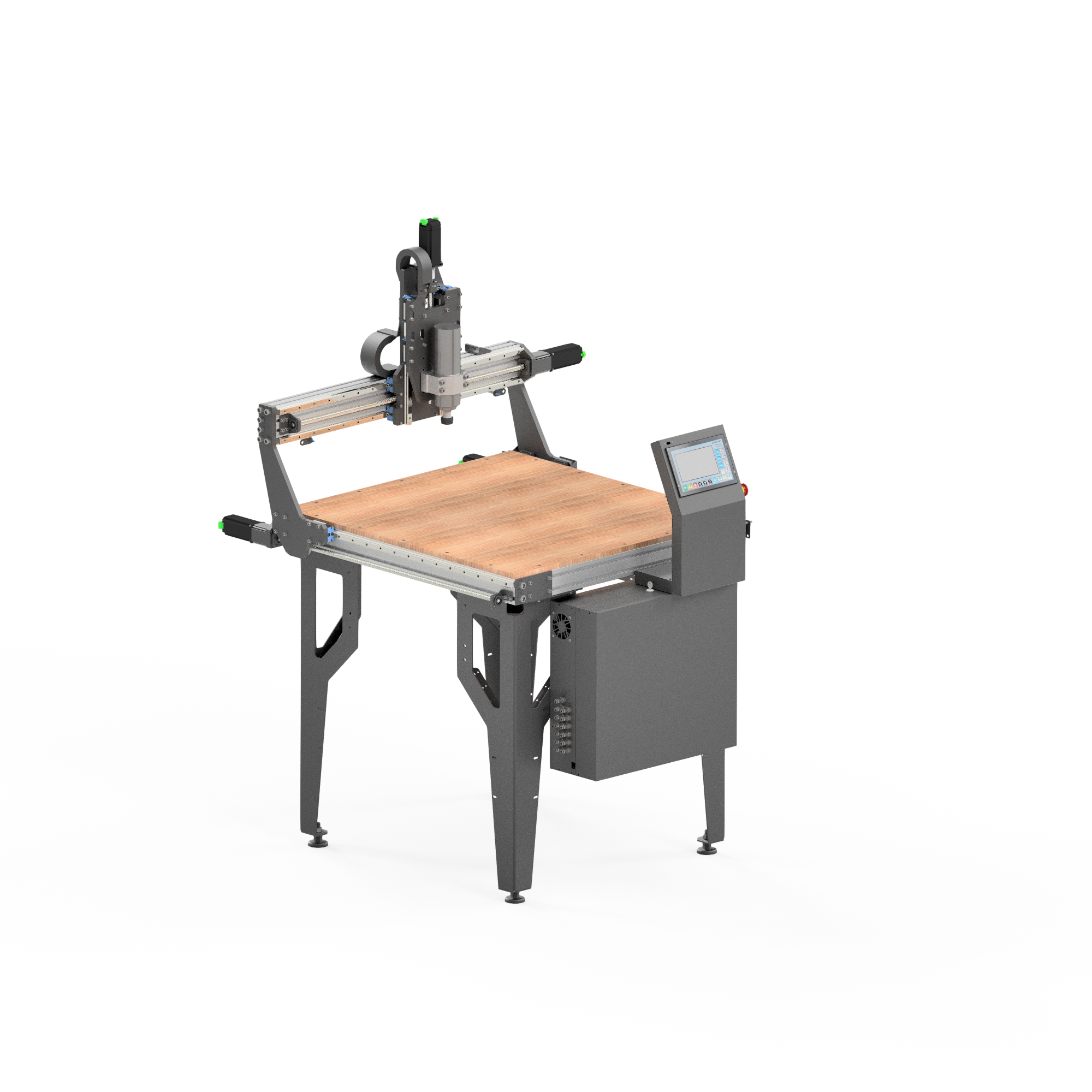

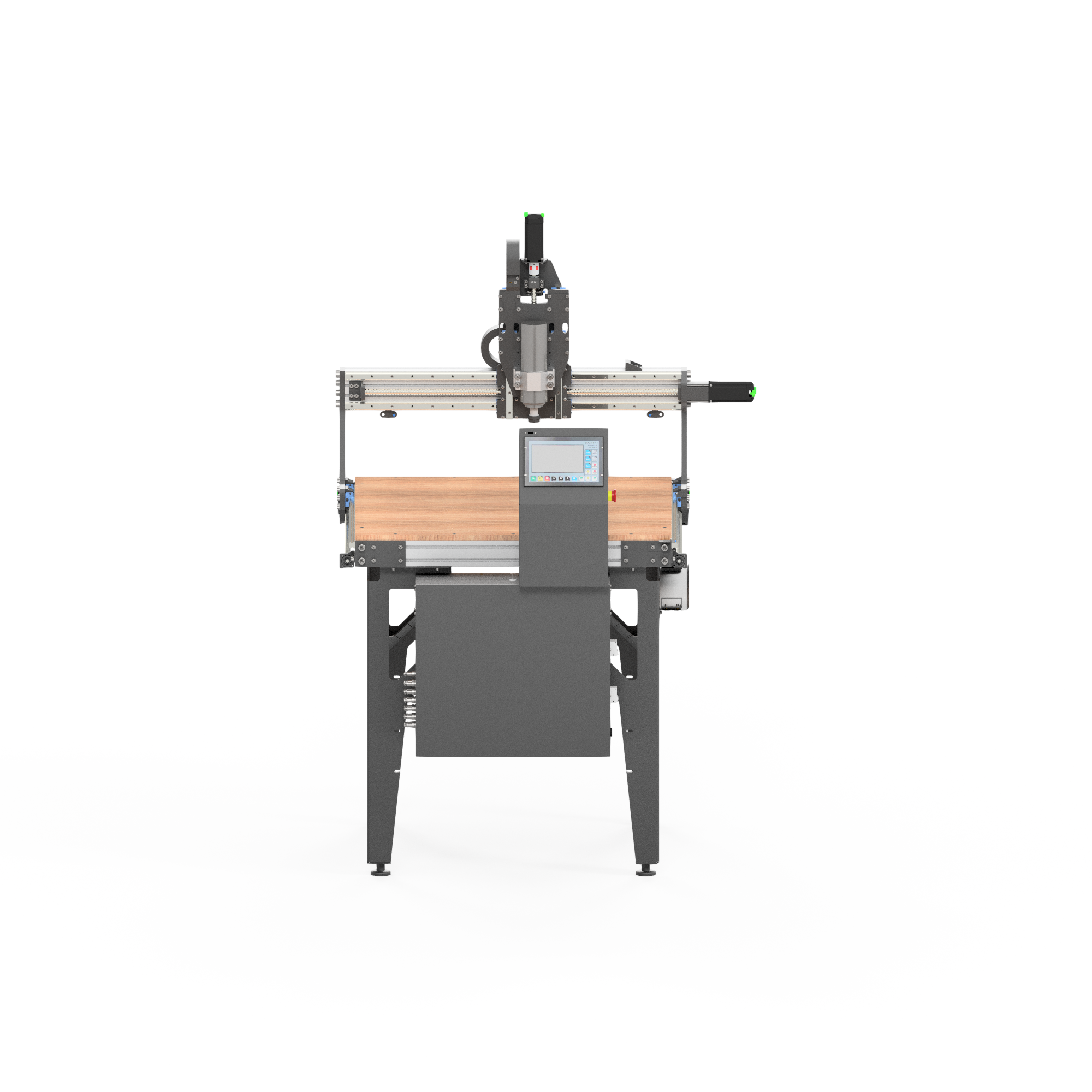

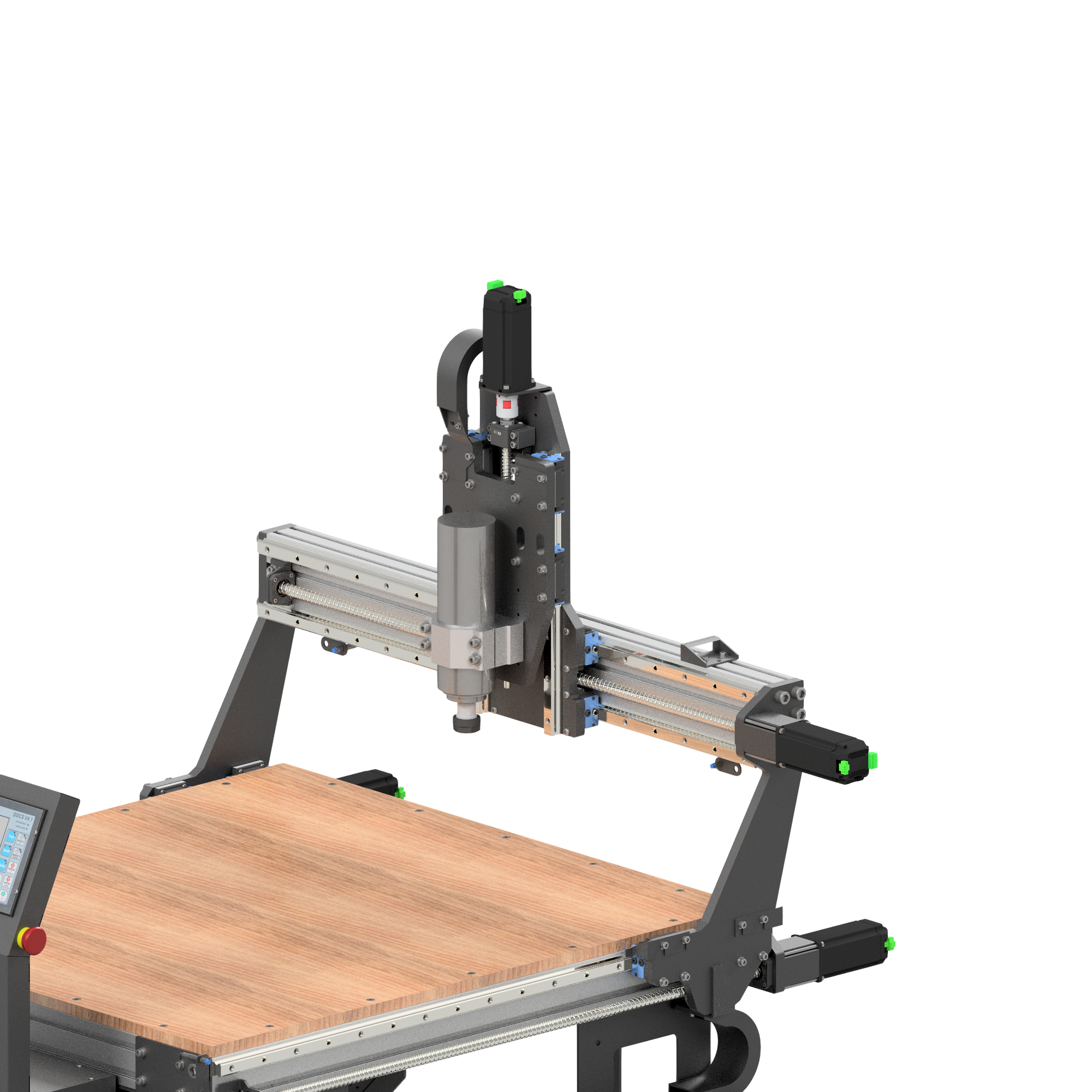

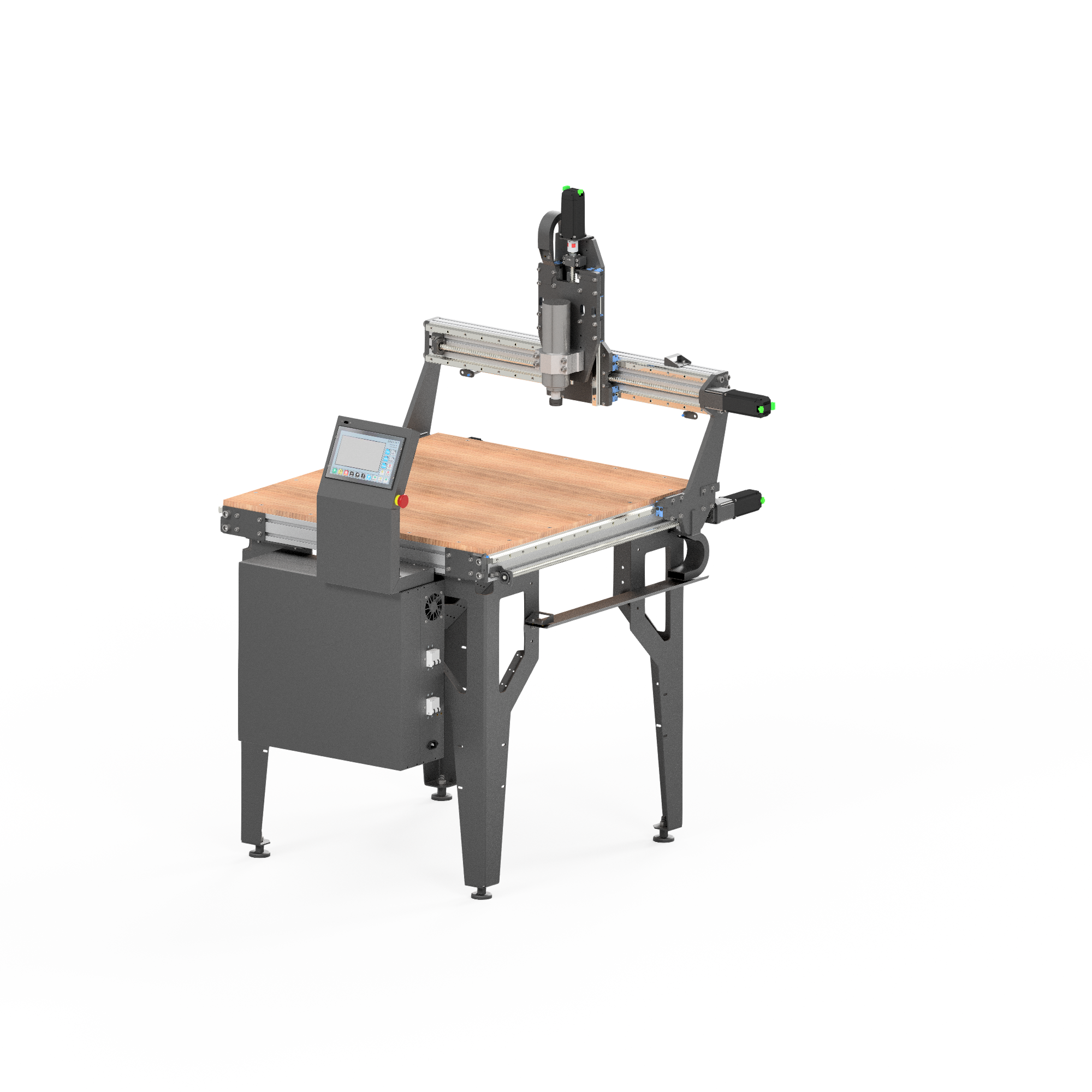

Pro Series 1010 CNC Router

The Pro Series 1010 CNC Router is a robust mid-range CNC machining solution designed for workshops, businesses and manufacturers that require greater rigidity, accuracy and performance than an entry-level machine, while maintaining a compact footprint. Built with HGR20 linear guide rails paired with HGW20CC bearing blocks on all axes, closed-loop motion control and a powerful 2.2kW water-cooled spindle, the Pro Series 1010 is suited to demanding routing, cutting, engraving and general CNC machining applications.

As part of CNC Online’s Pro Series, the 1010 sits between our entry-level machines and our top-of-the-range Elite Series, offering a strong balance of professional-grade components, performance and value. All three axes are driven by 3Nm Nema 23 closed-loop motors with integrated drivers, while SFE1616 ball screws on the X and Y axes provide fast and efficient linear movement. The Z axis uses an SFU1605 ball screw for controlled and precise vertical positioning.

Machine operation is handled by the DDCS V4.1 3-Axis Offline CNC Controller, allowing the router to operate independently without requiring a dedicated computer during machining. Adjustable mounting feet allow the machine to be properly levelled during installation for improved stability and accuracy.

Please note that machines include a 6-8 week lead time.

Includes:

• 1 × Pro Series 1010 CNC Router

Specifications
