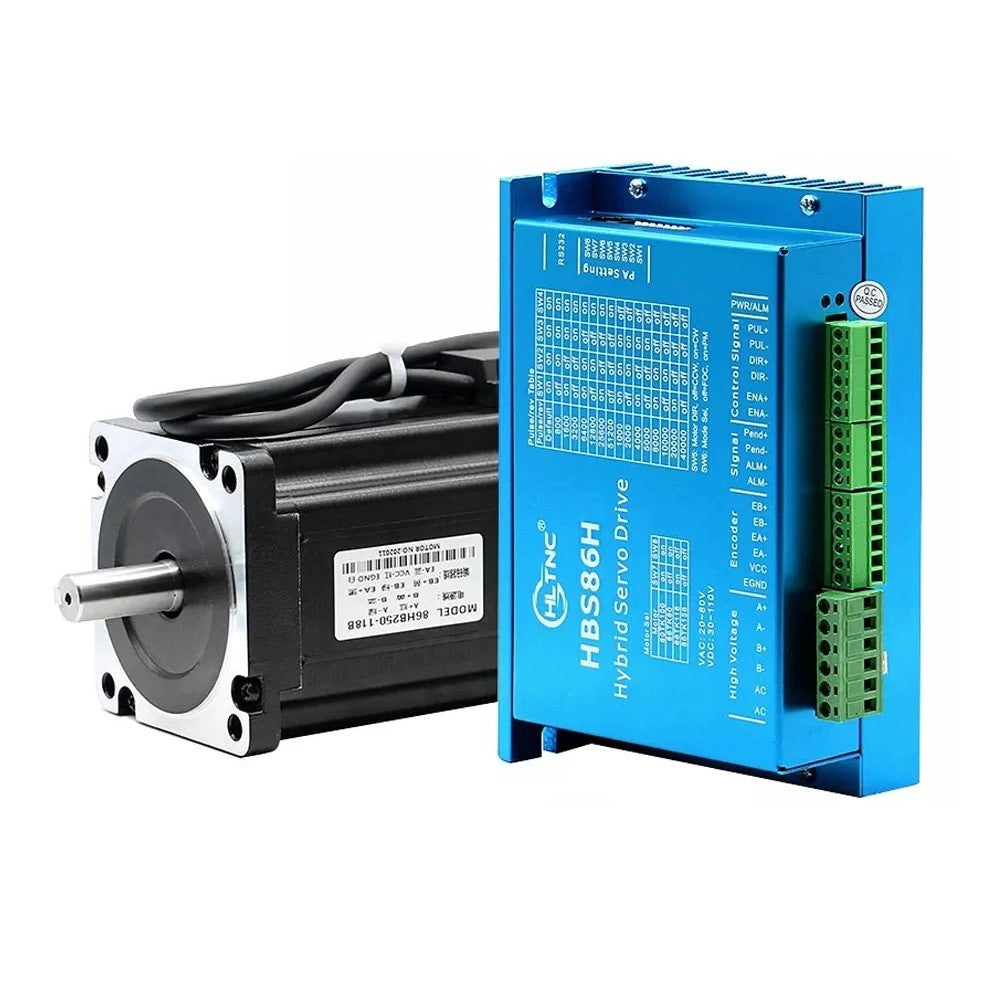

Nema 34 and HBS86H Driver
Nema 34 8.5NM Closed Loop Stepper Motor with Hybrid HBS86H Servo Drive Encoder
HBS86H Sepper Driver

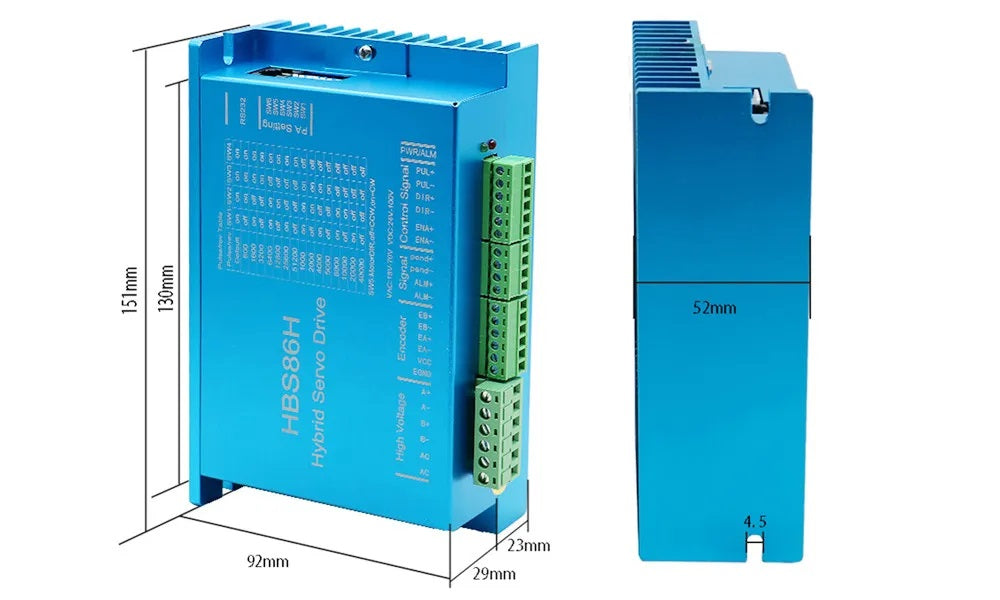

HBS86H Stepper Driver Dimensions

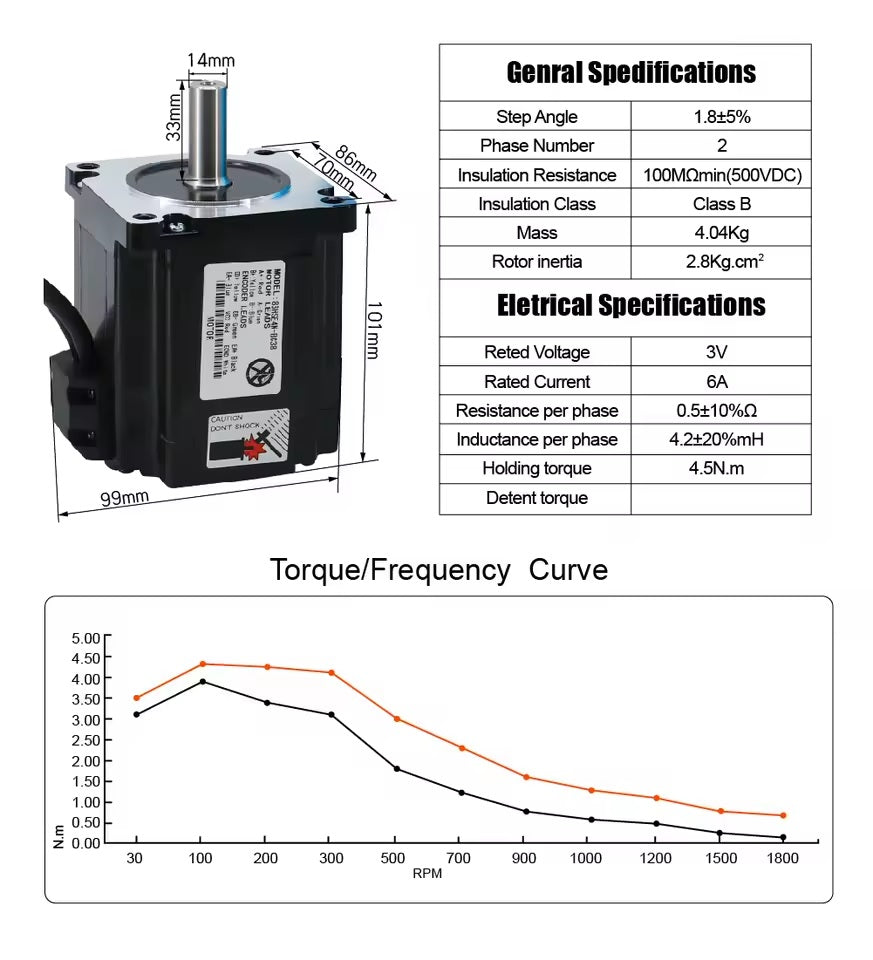

8.5nm nema 34 closed loop stepper motor
12Nm nema 34 closed loop stepper motor
  • Load image into Gallery viewer, Nema 34 and HBS86H Driver
  • Load image into Gallery viewer, Nema 34 8.5NM Closed Loop Stepper Motor with Hybrid HBS86H Servo Drive Encoder
  • Load image into Gallery viewer, HBS86H Sepper Driver
  • Load image into Gallery viewer, HBS86H Stepper Driver Dimensions
  • Load image into Gallery viewer, 8.5nm nema 34 closed loop stepper motor
  • Load image into Gallery viewer, 12Nm nema 34 closed loop stepper motor

Nema 34 Closed Loop Stepper Motor with HBS86H Driver (Multiple Torque Options)

Regular price
R 3,659.00
Sale price
R 3,659.00
Regular price
Sold out
Unit price
per
Including VAT. Shipping - R100 flat rate for orders under R1000, orders over R1000 qualify for free shipping. T&Cs apply.

The NEMA 34 Closed Loop Stepper Motor with HBS86H Driver provides exceptional torque, precision, and reliability for CNC machines, milling equipment, robotics, and industrial automation. Featuring real-time encoder feedback, this hybrid servo system combines servo accuracy with stepper simplicity, ensuring smooth motion, zero lost steps, and efficient performance even under heavy loads.

Built from high-quality, durable materials, this motor and driver set delivers long-lasting performance, low noise, and optimal torque control, making it ideal for high-precision and heavy-duty motion applications.

Includes: 1× NEMA 34 Closed Loop Stepper Motor, 1× HBS86H Hybrid Servo Driver, 1× 3-Meter Driver Cable

Motor Specifications:

  • Size: NEMA 34 (86mm × 86mm)

  • Length: 118mm

  • Shaft Diameter: 14mm

  • Rated Speed: 1000 RPM (2000 RPM No-Load Speed)

  • Holding Torque Options: 8.5Nm / 12Nm

  • Rated Current: 6A

  • Type: Closed Loop Stepper Motor (Hybrid Servo)

  • Phases: 2

Driver Specifications:

  • Model: HBS86H Hybrid Servo Drive (Driver Included)

  • Input Voltage: 18–70V AC or 24–100V DC

  • Control: Closed Loop with Encoder Feedback

  • Included Cable: 3-Meter Driver Cable


Please note custom stepper motors up to Nema 52 and servo motors can be ordered (approximately 10 weeks lead time). Please email us at sales@cnconline.co.za for more info.
