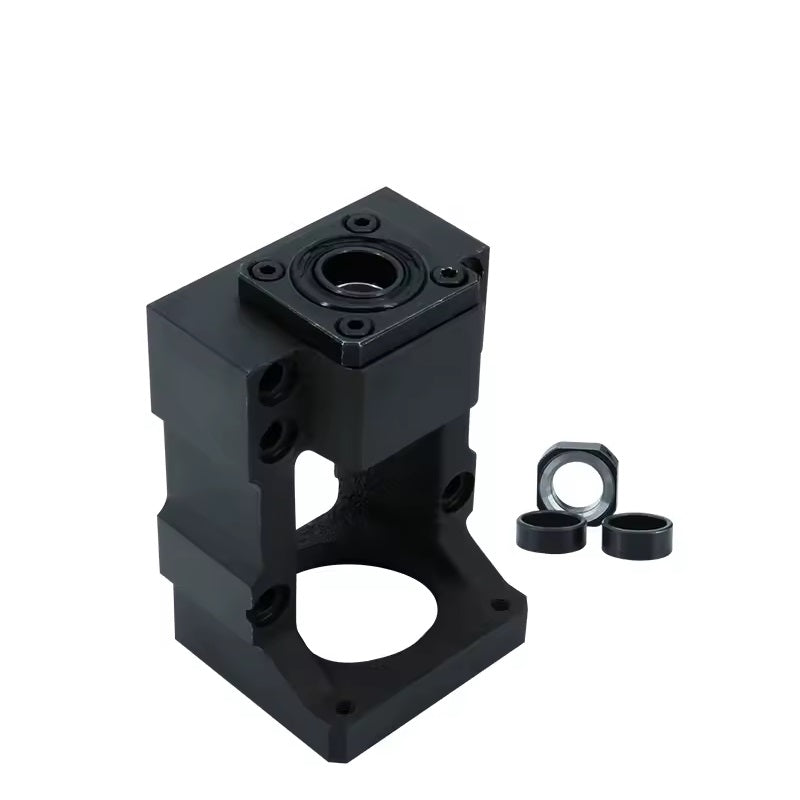

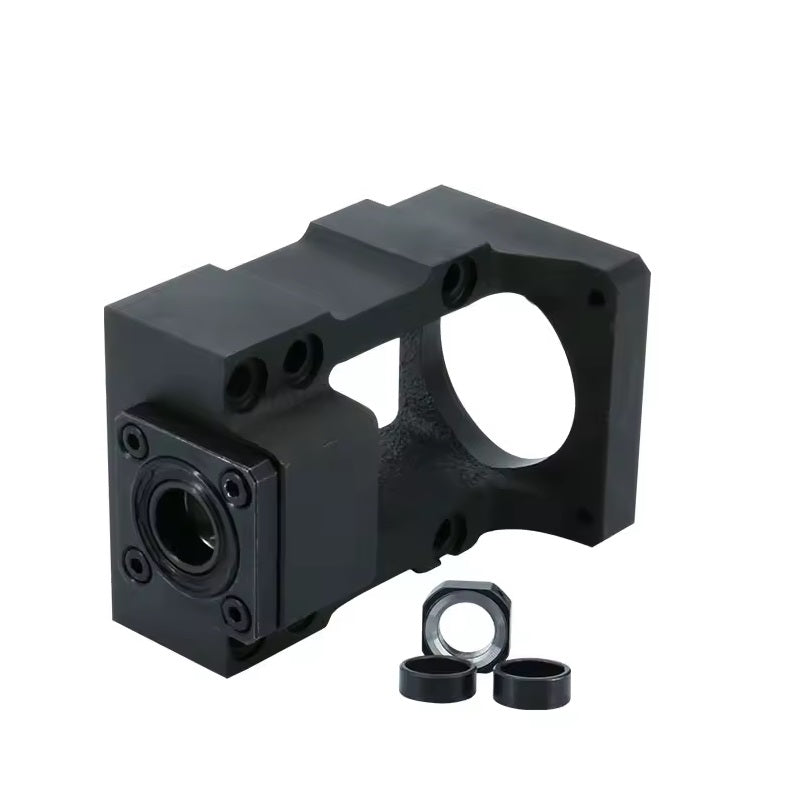

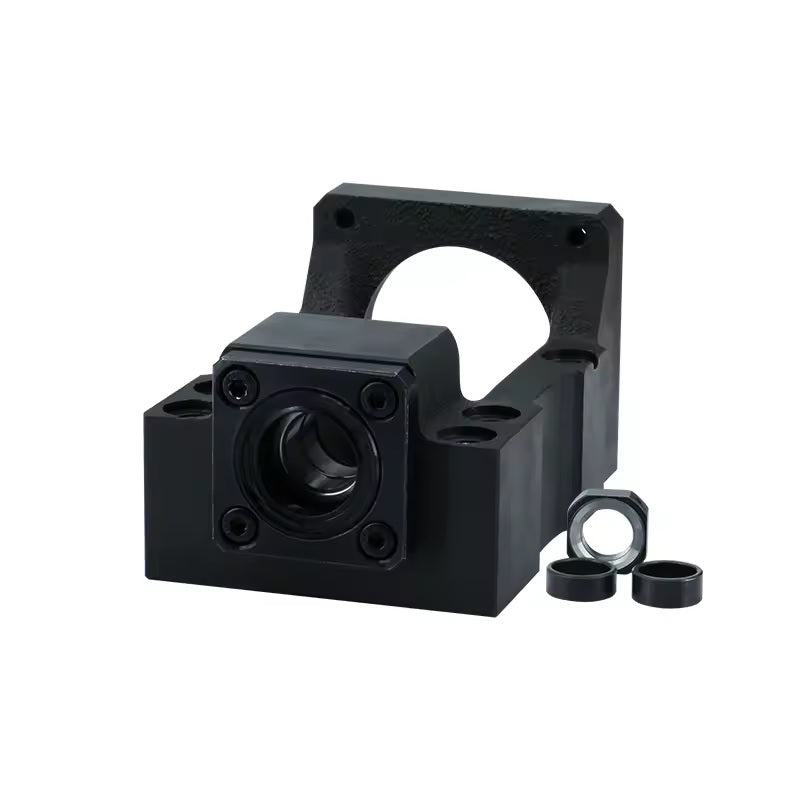

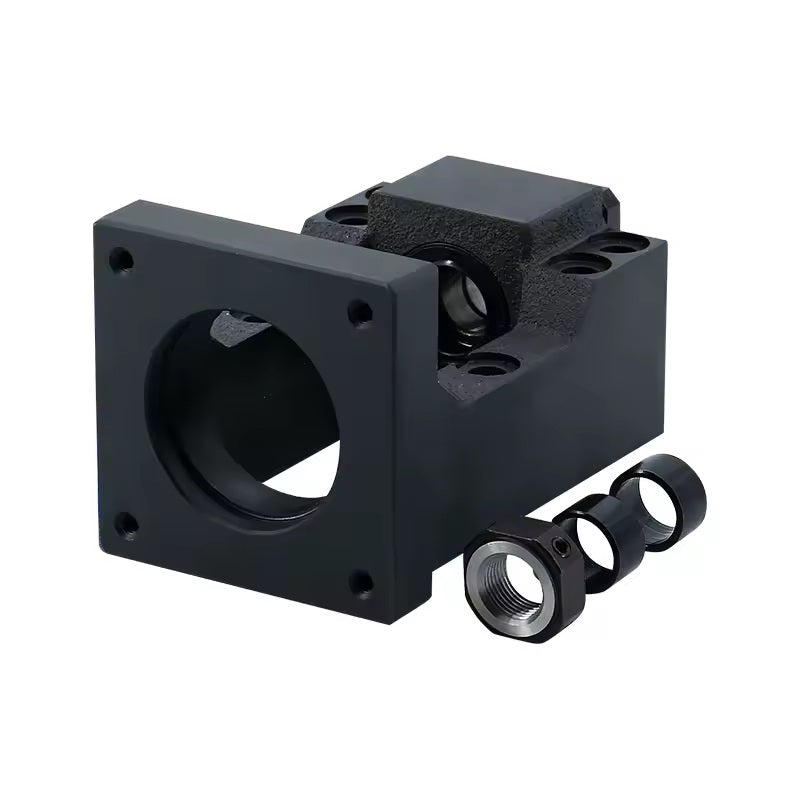

The NEMA 23 Motor Mount with Integrated BK Bearing Block is a space-saving, all-in-one mounting solution designed to simplify the installation of NEMA 23 stepper motors and CNC ball screws. By combining the motor mount and BK bearing block into a single precision-machined component, it eliminates the need for separate mounting brackets, making machine assembly faster, easier, and more accurate.
Manufactured from high-quality 45 Steel and fitted with C7 standard bearings, this integrated motor mount provides exceptional strength, excellent rigidity, and precise ball screw alignment for demanding CNC applications. The integrated design reduces installation time, minimises alignment errors, and delivers smooth, reliable rotation, helping to improve overall machine stability and long-term performance.
Available in BK10, BK12, and BK15 variants, each motor mount is supplied with its matching BF support bearing block (BF10, BF12, or BF15), providing a complete ball screw support solution straight out of the box. Whether you're building a new CNC router, upgrading an existing machine, or designing a custom automation system, this integrated assembly offers simplified installation, reduced assembly time, and professional-grade performance.
Includes: 1× NEMA 23 Motor Mount with Integrated BK Bearing Block, 1× Matching BF Support Bearing Block
Specifications
- Motor Compatibility: NEMA 23 Stepper Motors
- Bearing Type: C7 Standard Bearings
- Integrated Bearing Block Options: BK10, BK12, BK15
- Included Support Bearing Block: BF10, BF12, or BF15 (to match selected variant)
- Material: 45 Steel
- Type: NEMA 23 Motor Mount with Integrated BK Bearing Block
- Applications: CNC routers, CNC milling machines, laser cutters, engraving machines, automation systems, ball screw drive systems, and precision linear motion equipment
