Product details

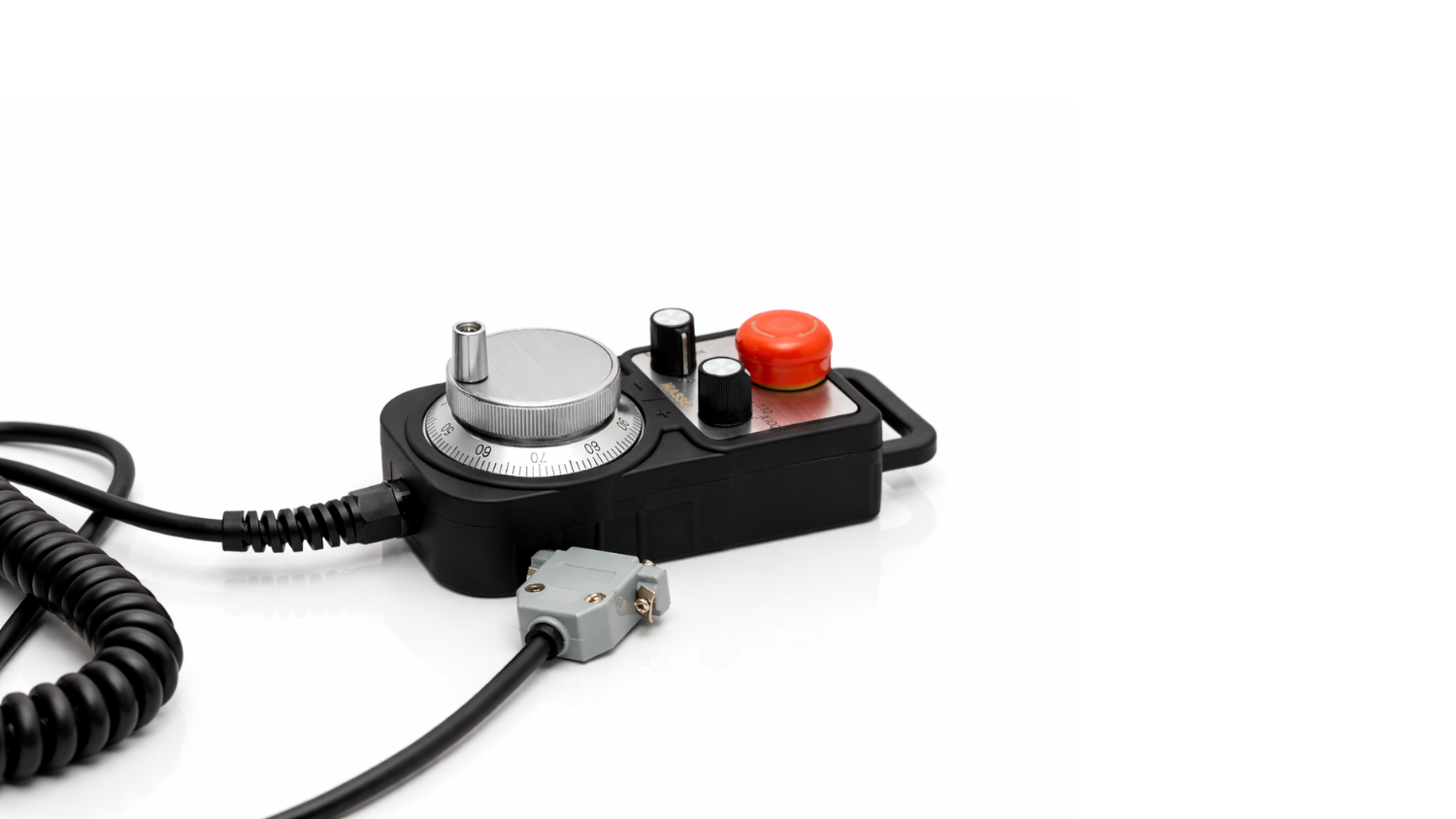

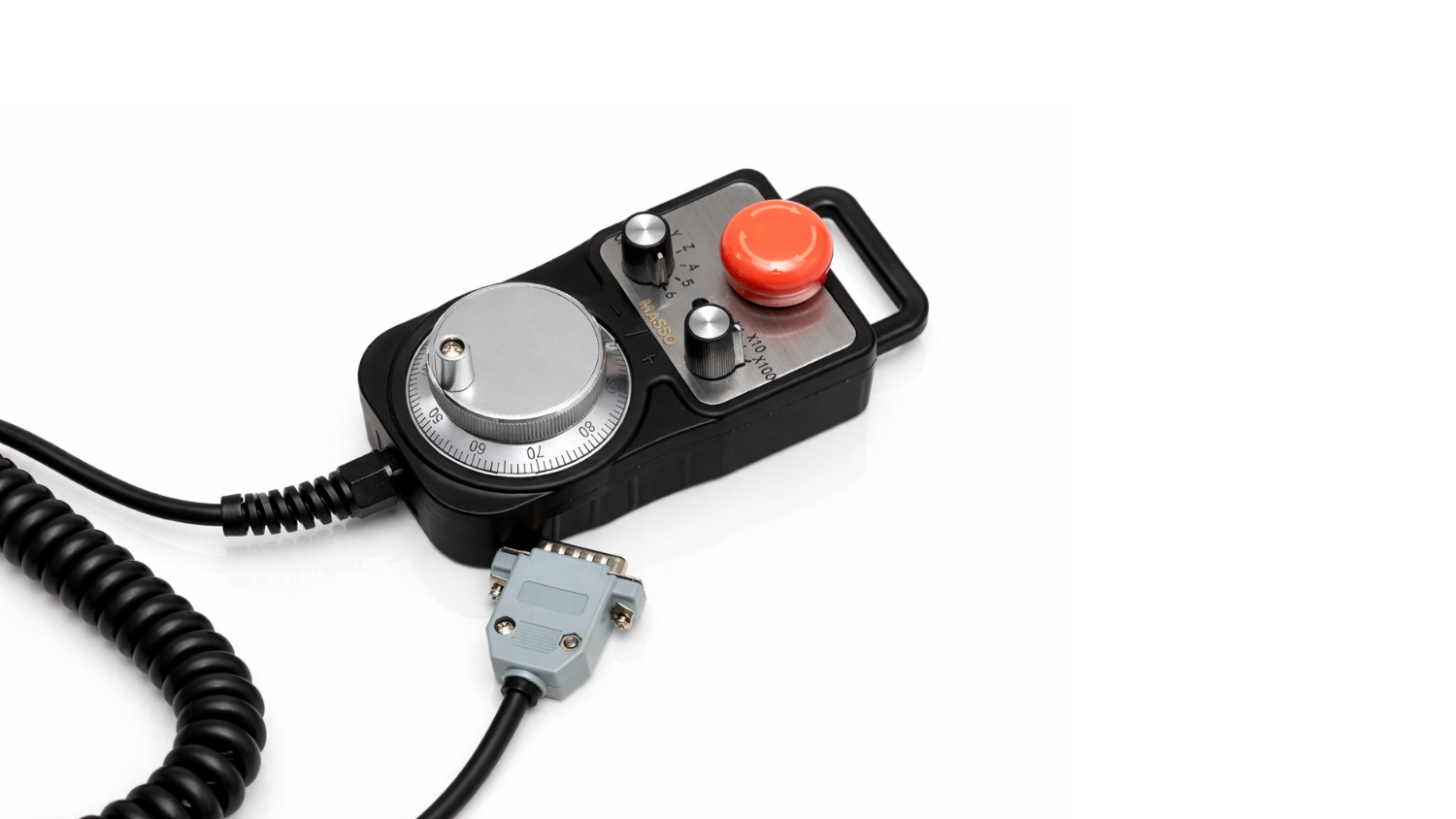

The MASSO MPG Pendant provides convenient manual axis control for your MASSO-equipped CNC machine. Its optical handwheel, axis selector and resolution switch make positioning your machine easier, with a built-in emergency stop button within reach.

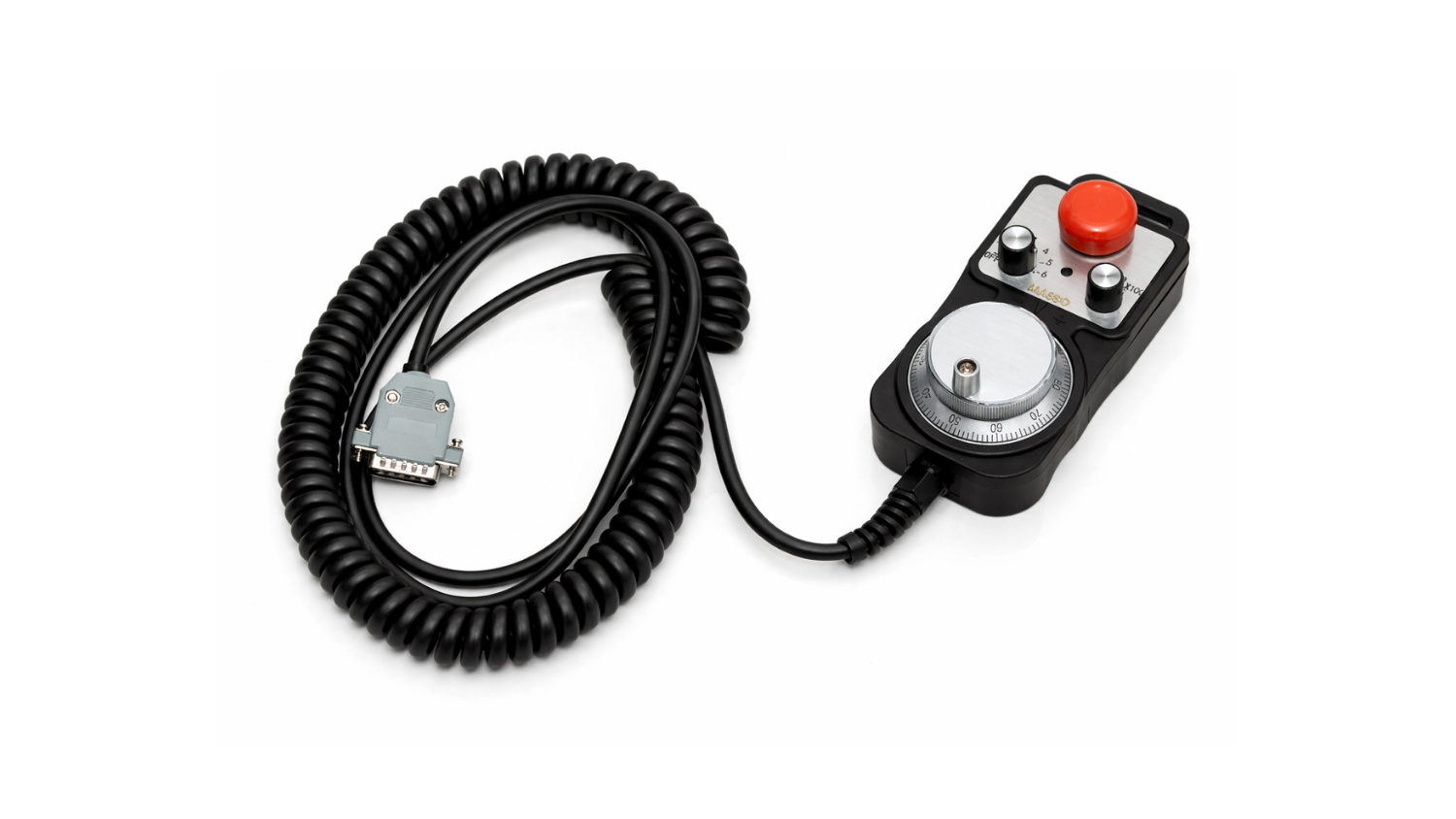

Designed for direct connection to MASSO controllers, the pendant comes with a pre-wired connector and requires no additional software or drivers. The coiled cable stretches up to 3 metres, while built-in magnets and a mounting hook offer convenient storage when the pendant is not in use.
Includes:
-
1 × MASSO MPG Pendant with built-in E-Stop, attached coiled cable and pre-wired connector.
Specifications
-
Compatibility: MASSO G3 and MASSO G3 Touch controllers.
-
Connection: Pre-wired DB15 connector.
-
Handwheel: Optical sensor operation.
-
Axis Selection: X, Y, Z, 4th and 5th axes, subject to your controller configuration.
-
Jog Resolution Settings: ×1, ×10 and ×100.
-
Additional Control: Feed rate and spindle speed override adjustment through the appropriate MASSO screen controls.
-
Emergency Stop: Integrated E-Stop button.
-
Cable: Coiled cable, stretchable up to 3 metres.
-
Mounting: Hook or built-in magnets.
-
Software Requirements: No additional software or drivers required.
Installation note: The pendant’s E-Stop requires the controller’s E-Stop wiring to be configured according to MASSO’s installation instructions.
