Product details

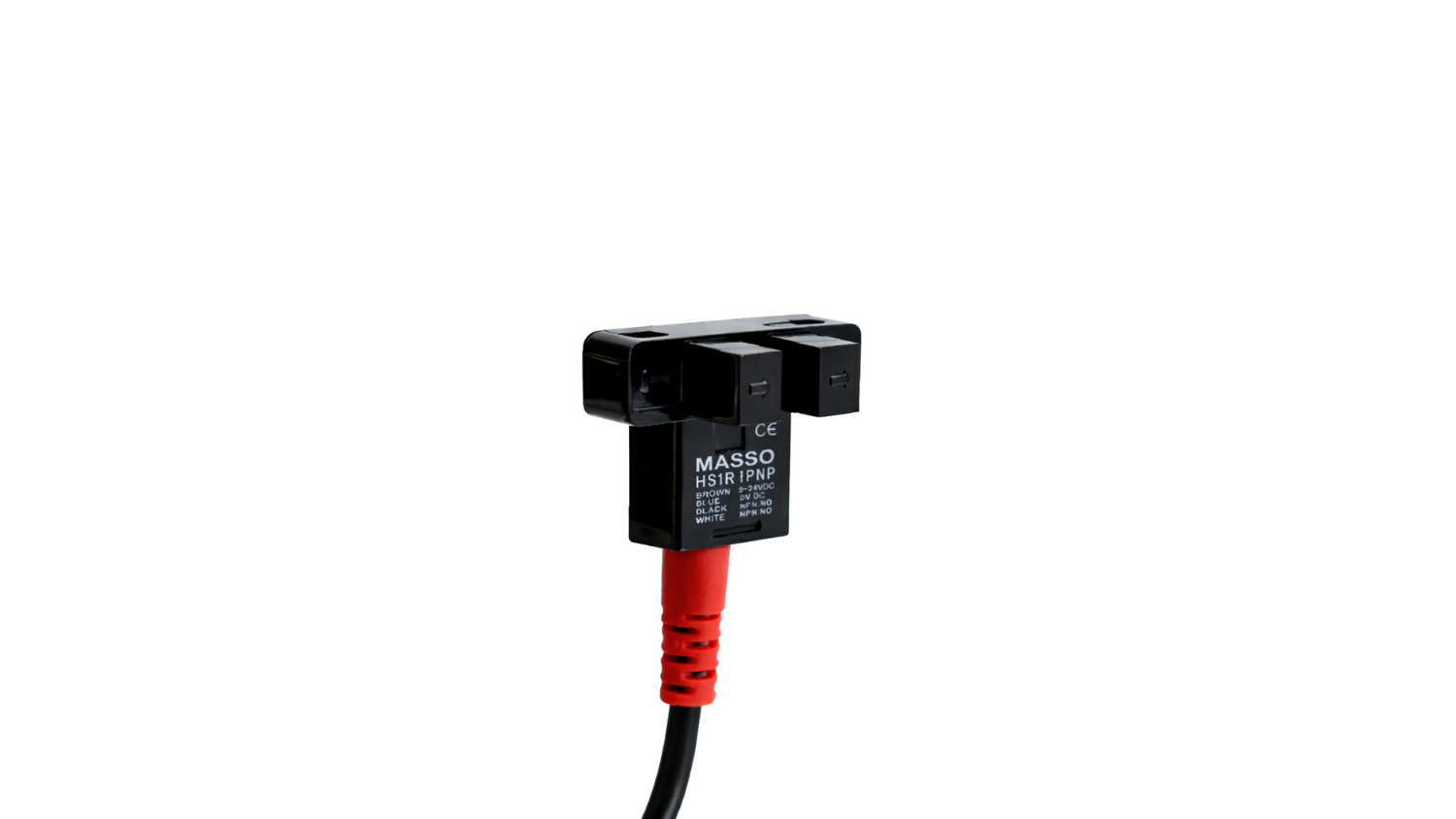

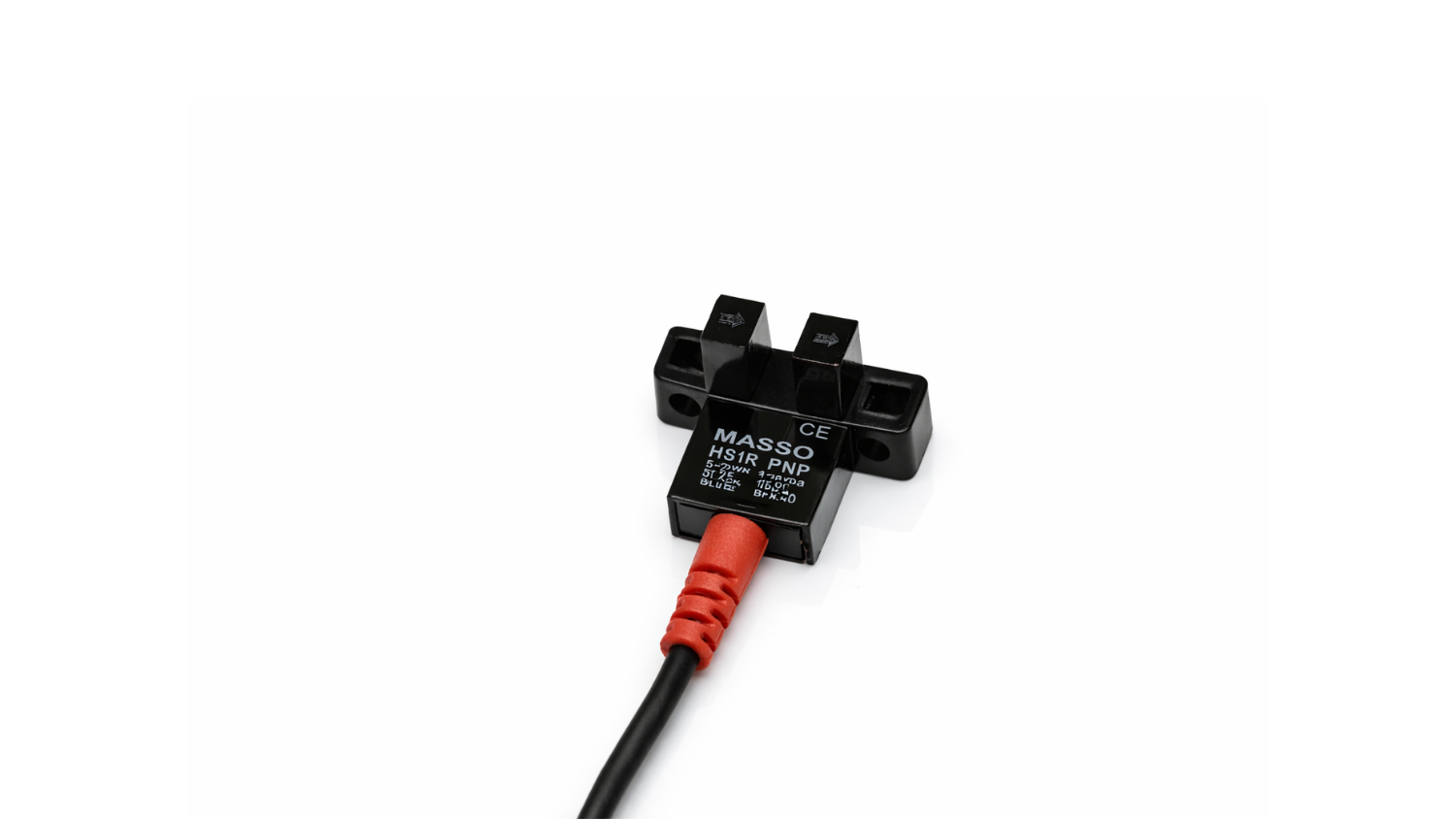

The MASSO Homing Sensor provides repeatable home position detection for your CNC machine, with homing repeatability better than 10 microns (0.01mm). Its infrared sensing design has no moving parts and detects a trigger plate passing between the sensor’s forks.
Featuring IP65 water resistance and a 9–24V DC operating range, the sensor is supplied with a 5-metre flexible cable for convenient wiring. M3 screw mounting and both normally open and normally closed outputs provide flexibility when installing it on your machine.
Includes:
-

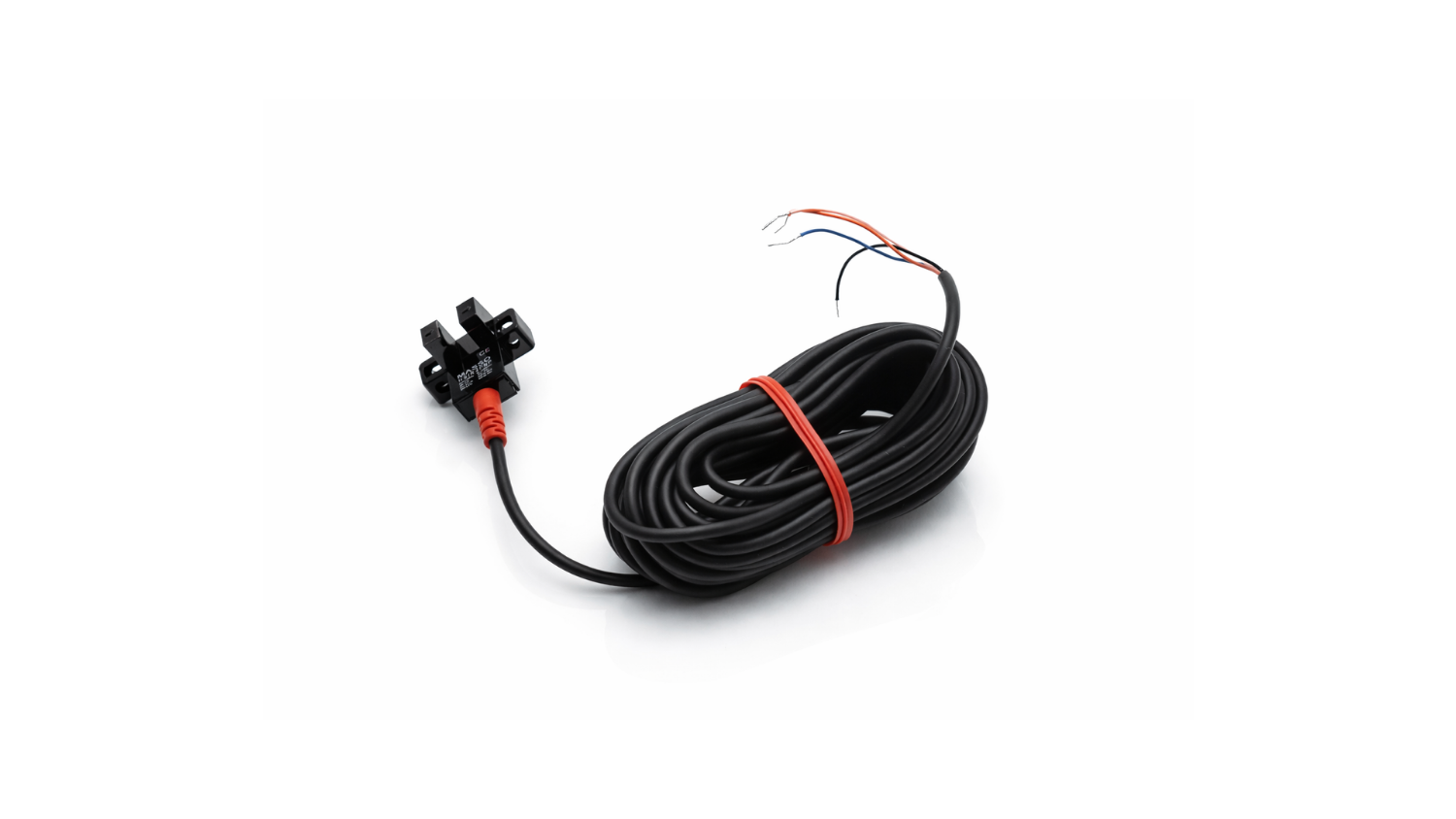

1 × MASSO Homing Sensor with 5-metre flexible cable.
Specifications
-
Compatibility: MASSO G3 and MASSO G3 Touch.
-
Sensor Type: Infrared fork sensor.
-
Homing Repeatability: Better than 10 microns (0.01mm).
-
Operating Voltage: 9–24V DC.
-
Protection Rating: IP65, water-resistant.
-
Outputs: Normally open (NO) and normally closed (NC).
-
Cable Length: 5 metres.
-
Mounting: M3 screws.
-
Trigger Method: A suitable plate passes between the forks to interrupt the infrared beam.
Installation note: Position the sensor away from direct sunlight and other external infrared sources to prevent false triggering. Reversed power polarity will damage the sensor.
