Product details
The MASSO G3 Touch Wiring Module simplifies signal wiring between your MASSO G3 Touch controller and CNC machine. It extends the controller’s connections to a DIN rail-mounted board on the machine, making cable management and installation easier.
Available with 1.5m, 3m or 5m cables, the module lets you choose the length that suits your setup. Its replaceable D-connector cables make damaged cabling easier to replace, while a built-in 1A fuse on the machine-side board protects the controller.
Includes:
-

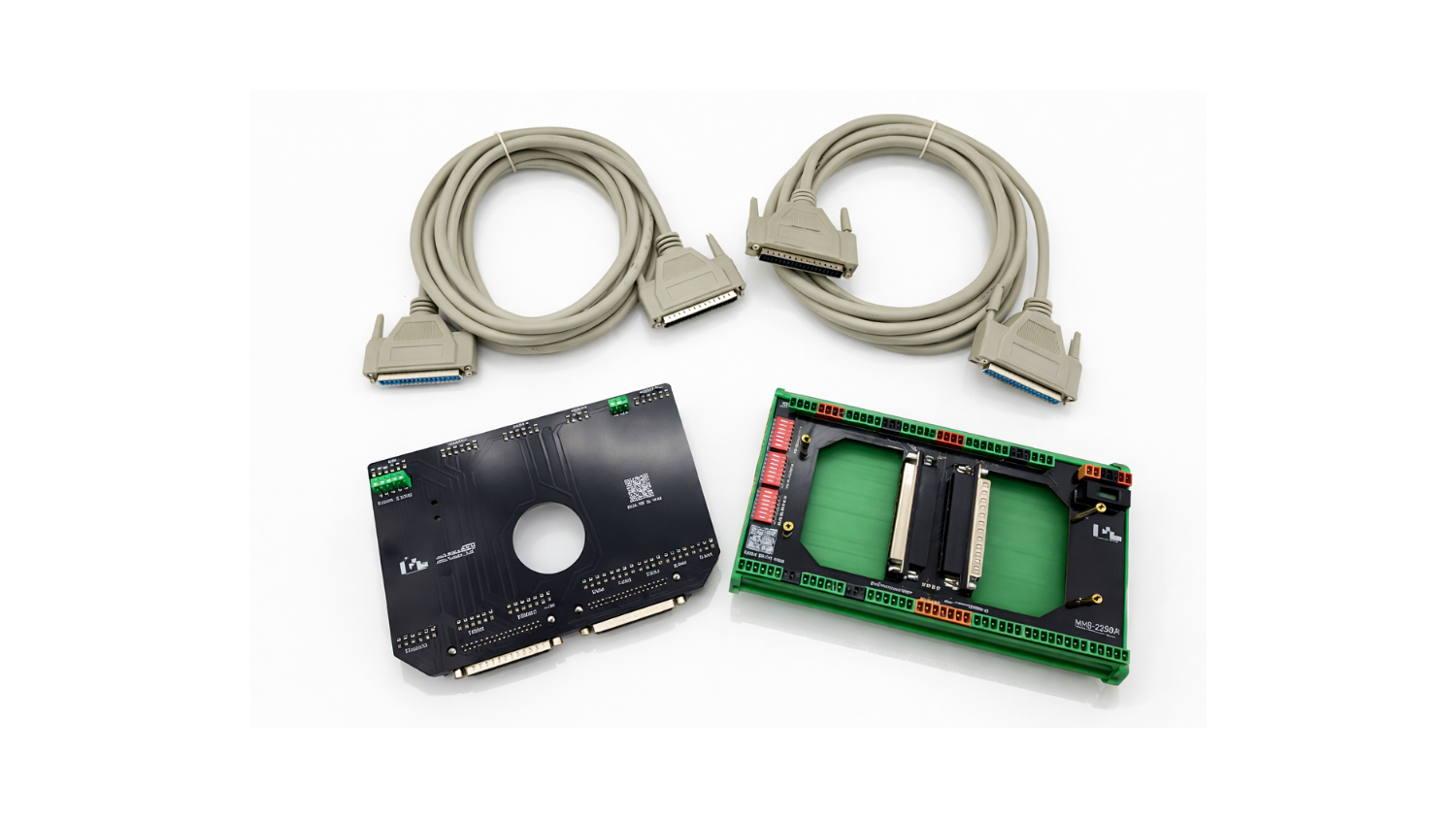

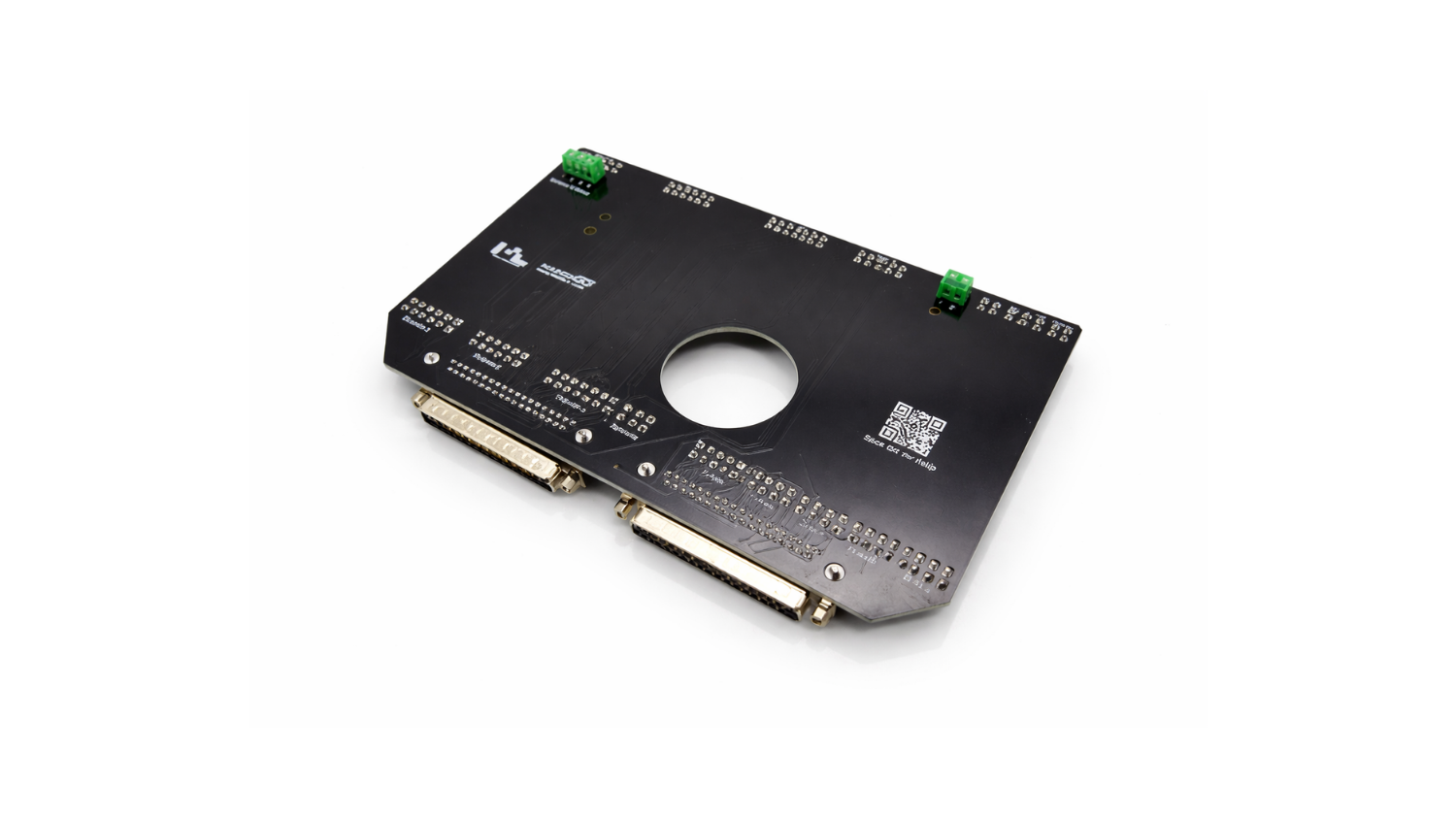

1 × Controller-side extension board.
-

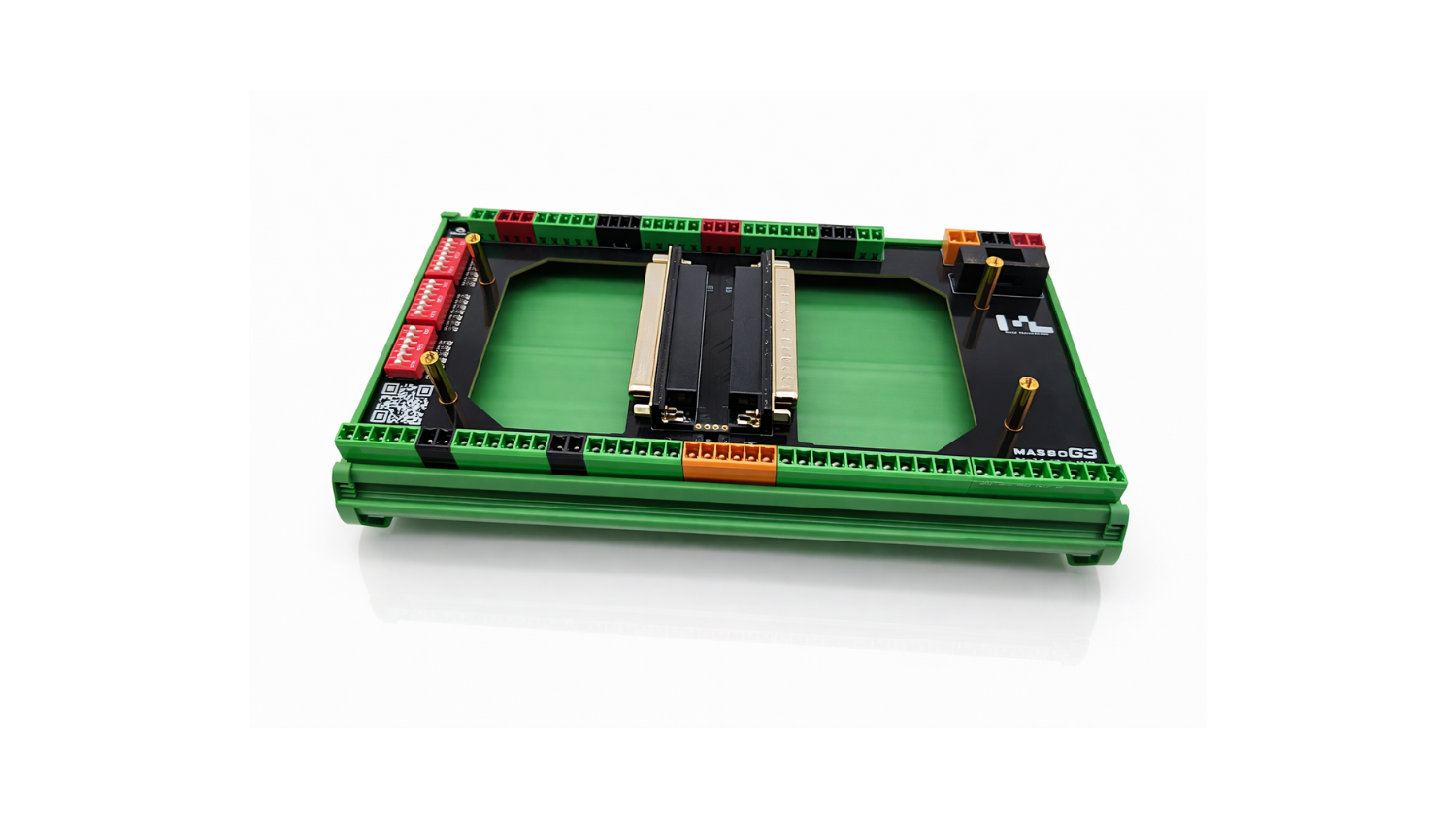

1 × Machine-side extension board with DIN rail mounting.
-
2 × 37-pin D-connector cables in the selected length.
-
4 × Short hexagonal brass spacers.
Specifications
-
Compatibility: MASSO G3 Touch.
-
Cable Length Options: 1.5m, 3m or 5m.
-
Connections: Two 37-pin D-connector cables linking the boards.
-
Mounting: DIN rail mounting for the machine-side board.
-
Fuse: Built-in 1A fuse on the machine-side board.
-
Input Pull-Up Resistors: Individually enabled using 24 DIP switches.
-
Spindle Outputs: Optically isolated clockwise and counterclockwise outputs.
Please note: The module does not extend the two analogue inputs, Inputs 1 and 2, to the machine-side board.
