Product details

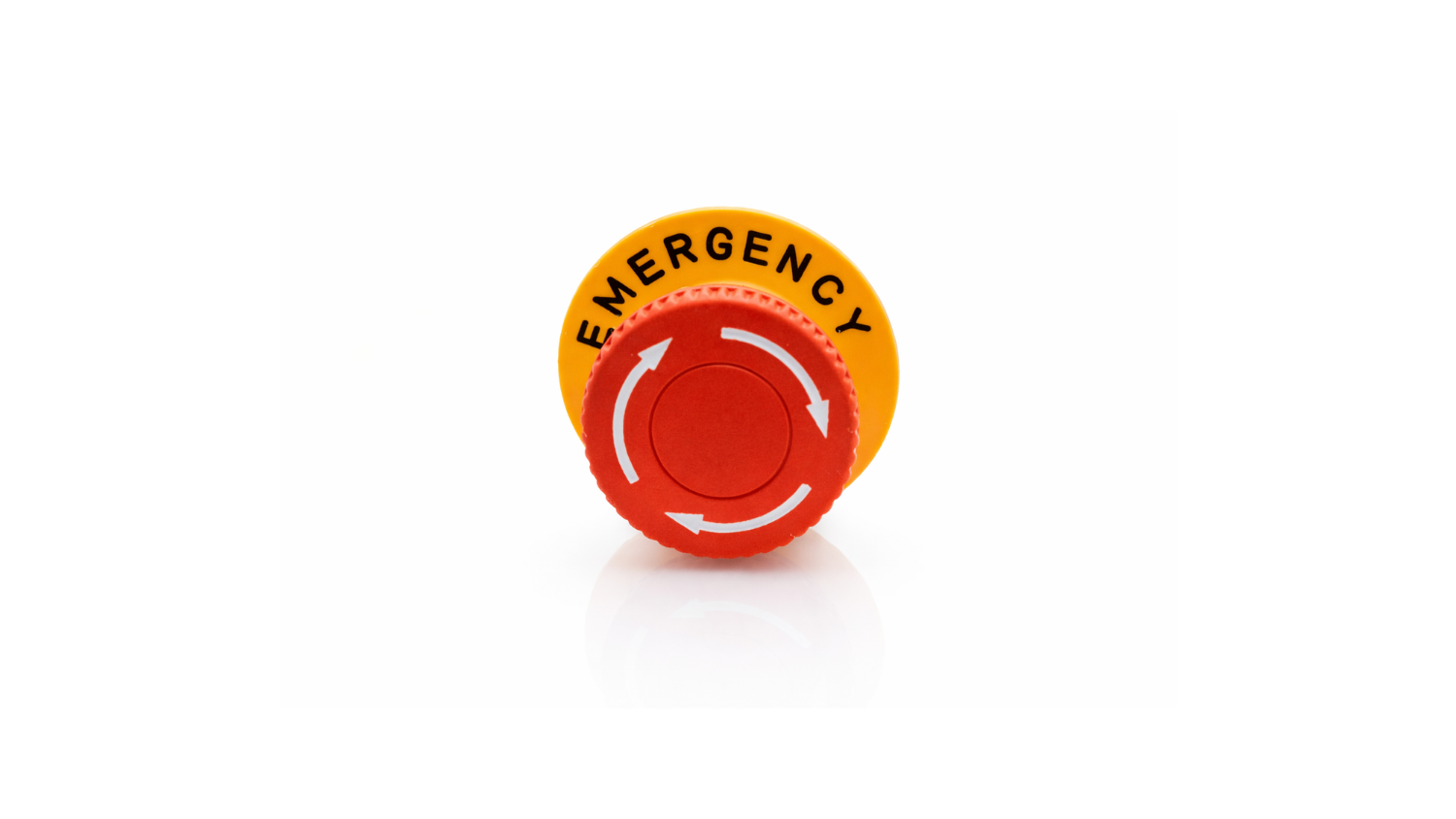

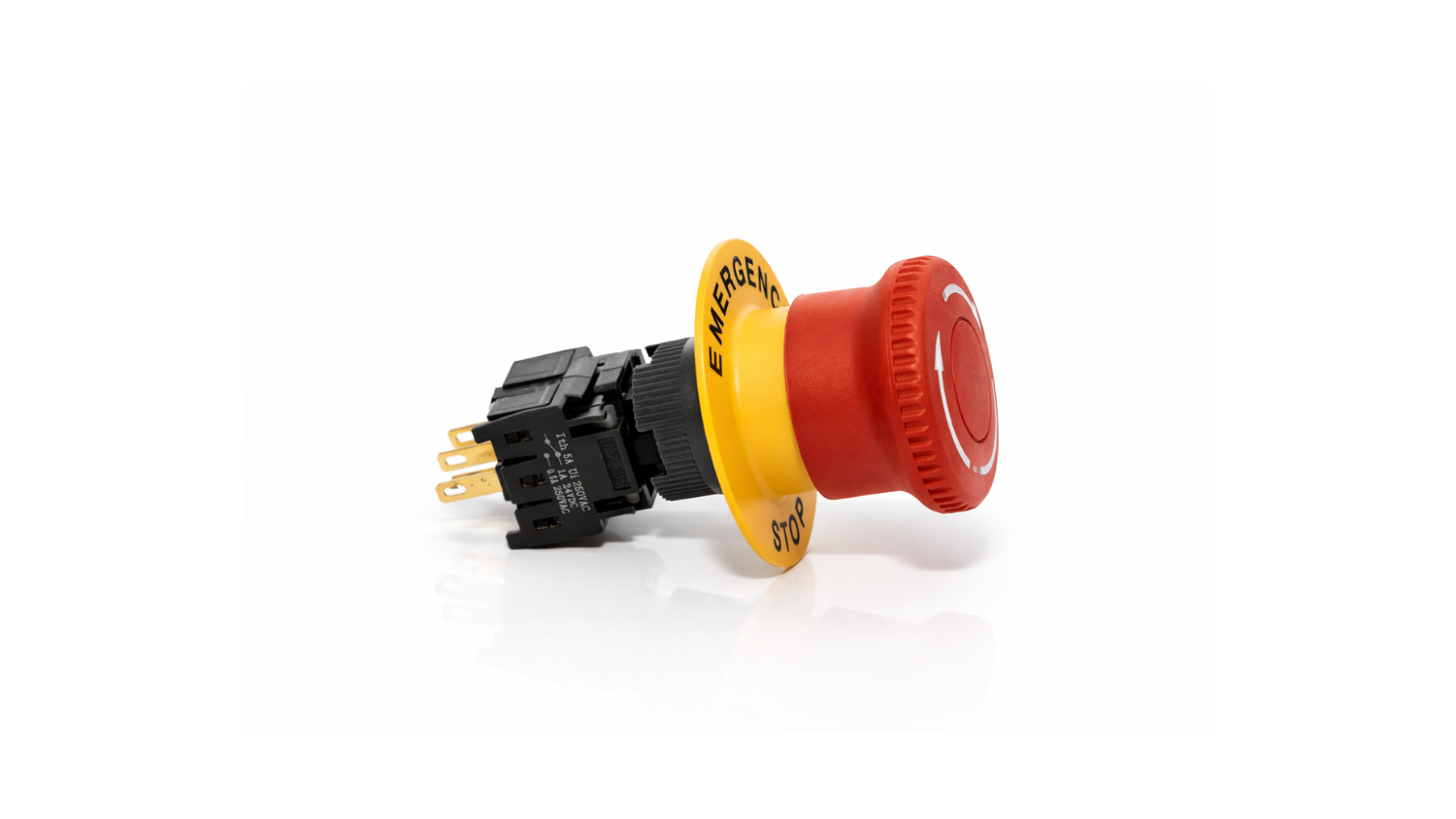

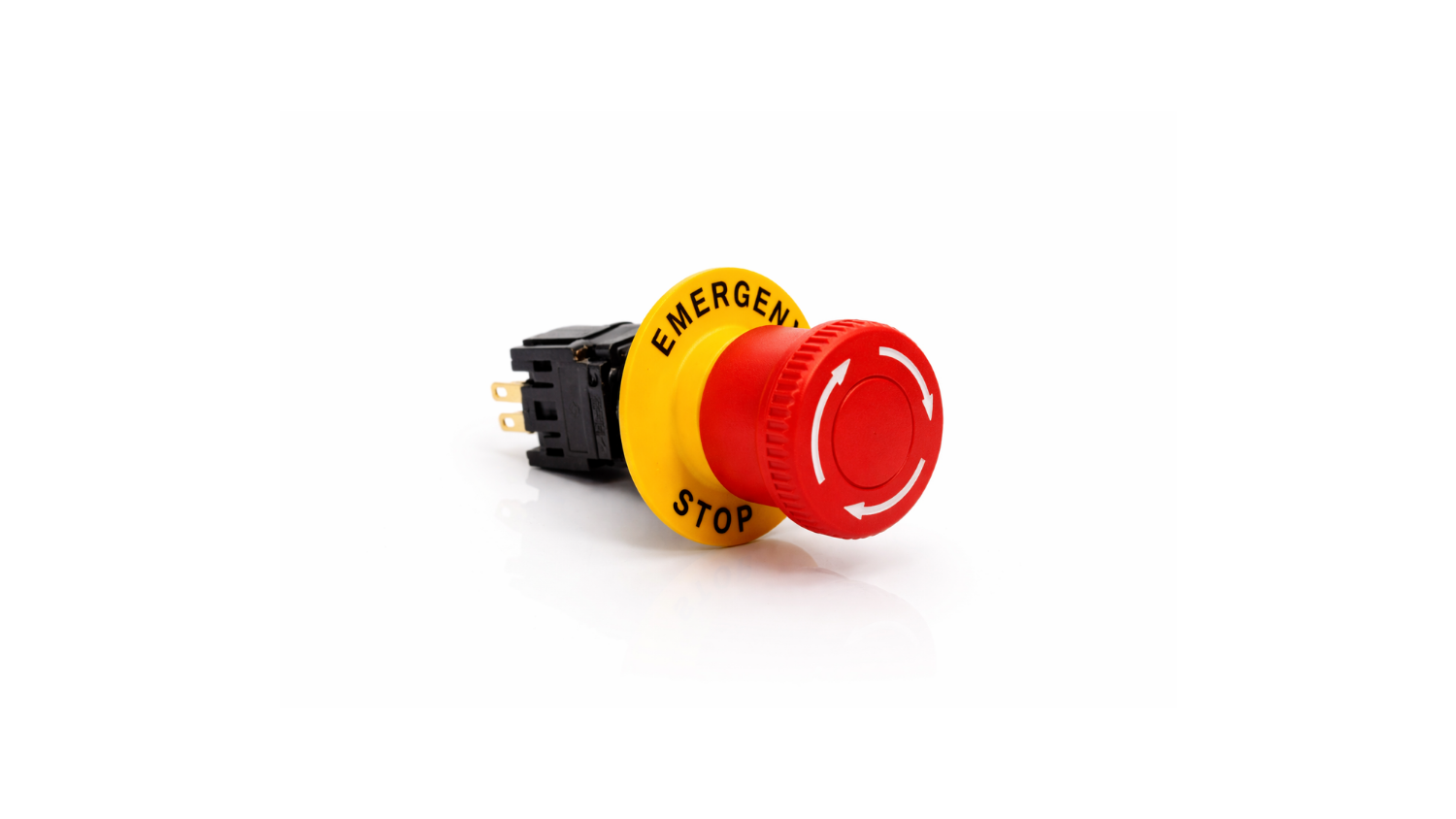

The MASSO E-Stop – Emergency Stop Switch (SPDT) features a red mushroom head and yellow label ring for clear identification on your CNC machine. Its latching action keeps the switch engaged after pressing until it is manually reset.
Rated at 24V DC, 1A, the switch provides one normally closed and one normally open contact for integration into your machine’s emergency stop control circuit. Its construction combines plastic and metal components.
Includes:
-
1 × MASSO Emergency Stop Switch with red mushroom head and yellow label ring.
Specifications
-
Contact Configuration: SPDT, as specified by MASSO; 1 normally closed and 1 normally open contact.
-
Action: Latching.
-
Electrical Rating: 24V DC, 1A.
-
Number of Terminals: 4.
-
Button Diameter: 30.2mm.
-
Yellow Ring Diameter: 40mm.
-
Overall Size: 40mm × 69mm.
-
Materials: Plastic and metal.
