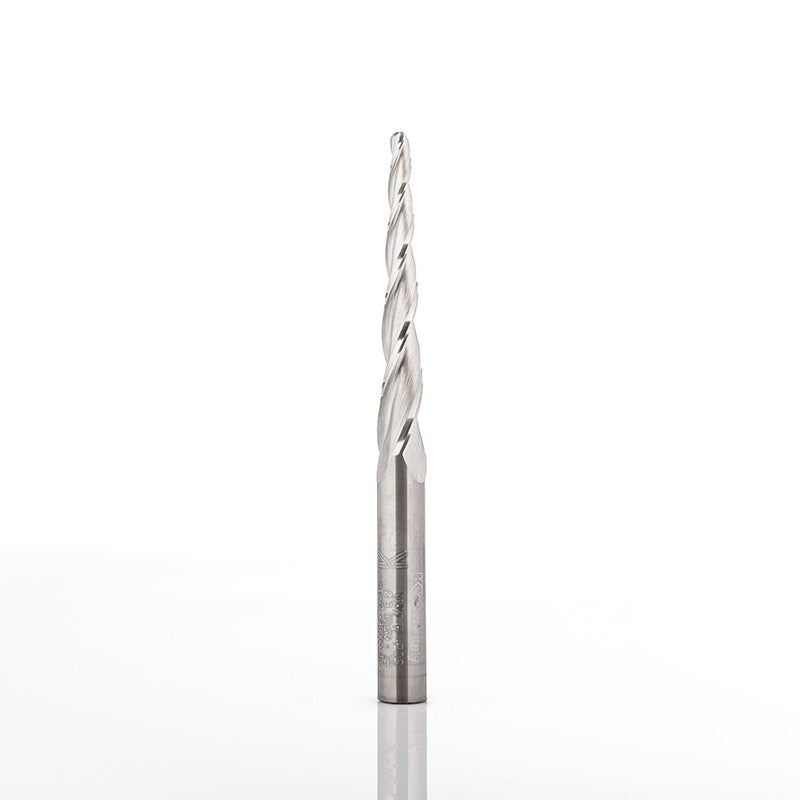

Klein tapered ball nose triple flute up cut Z3 router bit.

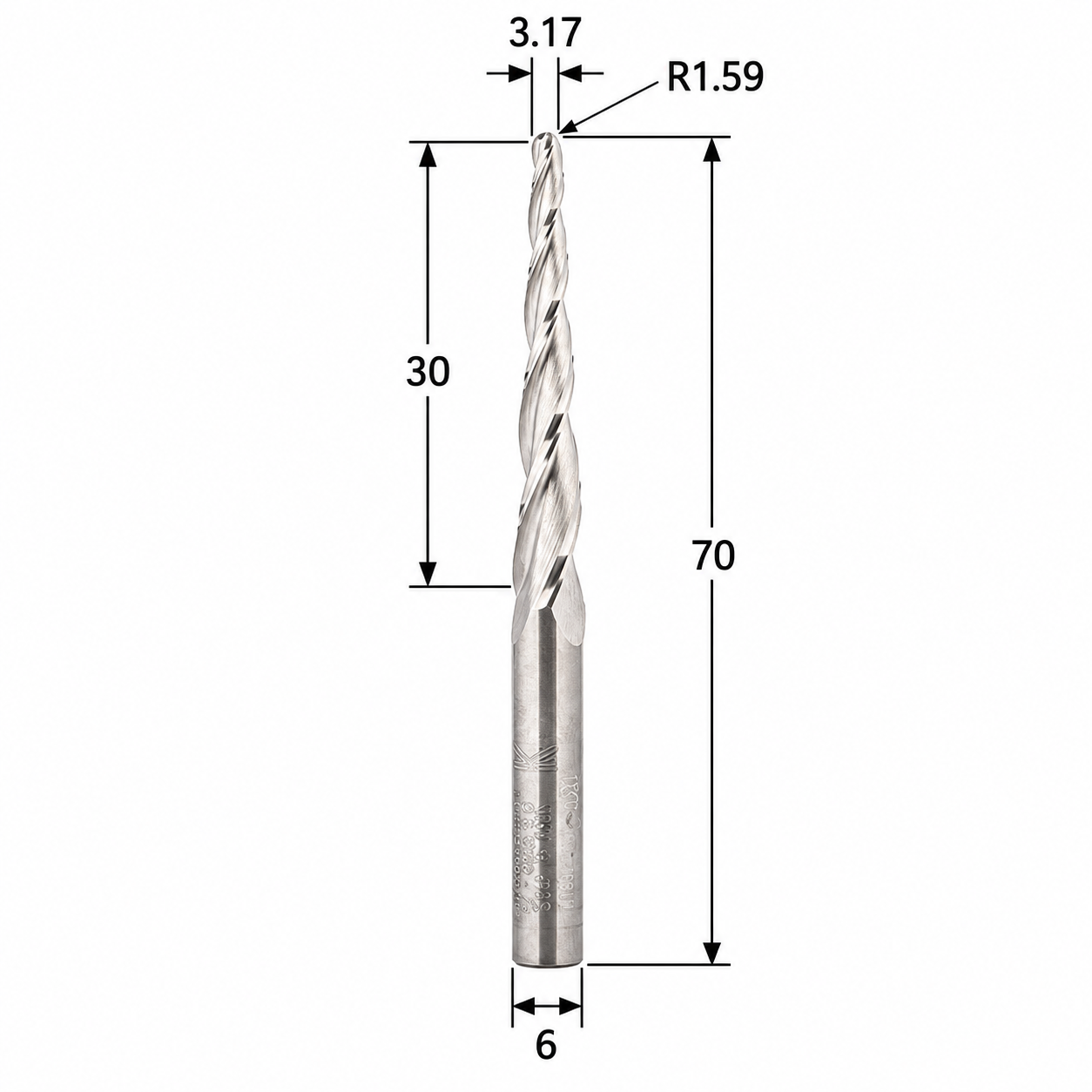

Klein tapered ball nose triple flute up cut Z3 router bit with 6 mm shank, 3.17 mm tip diameter, 1.59 mm radius, 30 mm cutting length and 70 mm overall length.

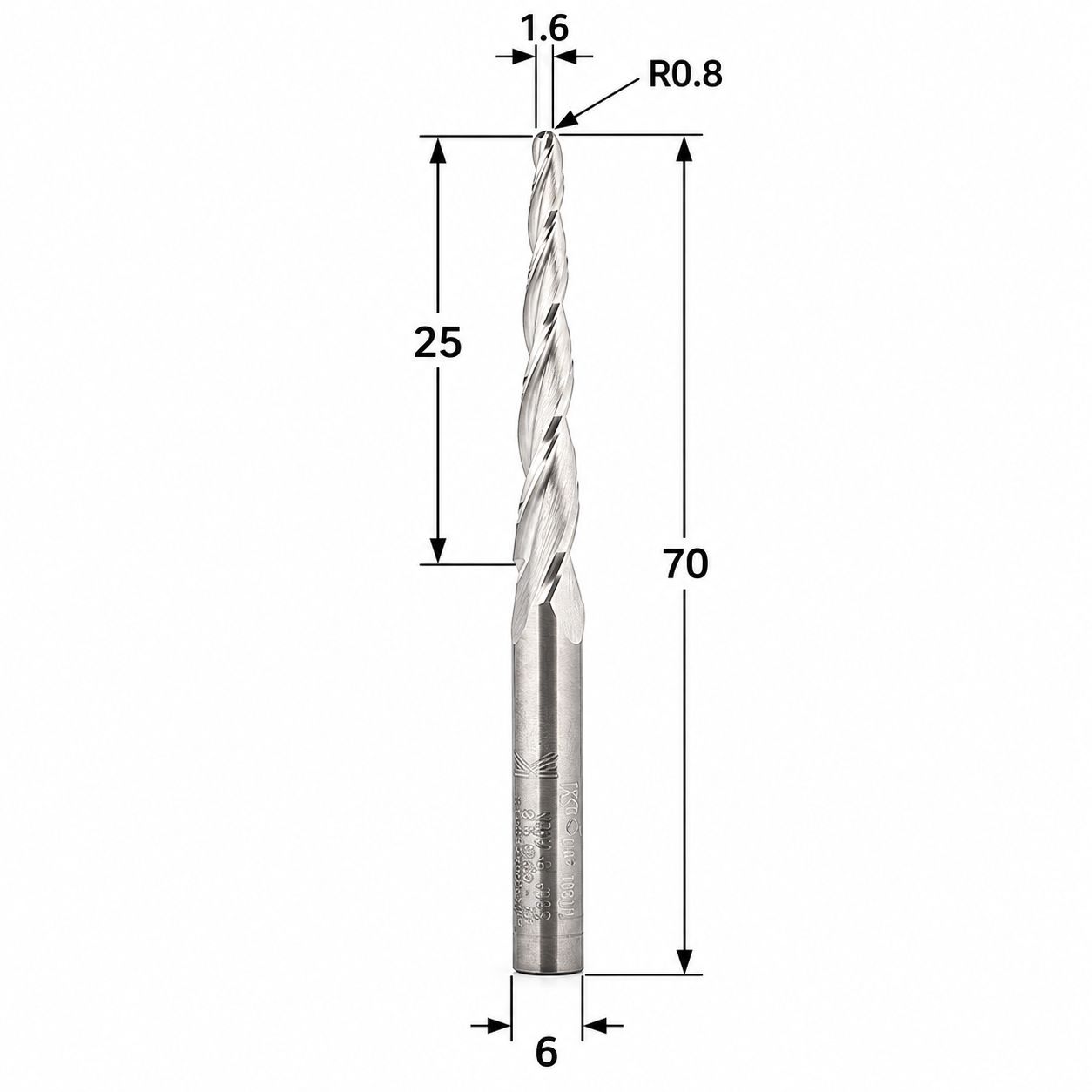

Klein tapered ball nose triple flute up cut Z3 router bit with 6 mm shank, 1.6 mm tip diameter, 0.8 mm radius, 25 mm cutting length and 70 mm overall length.

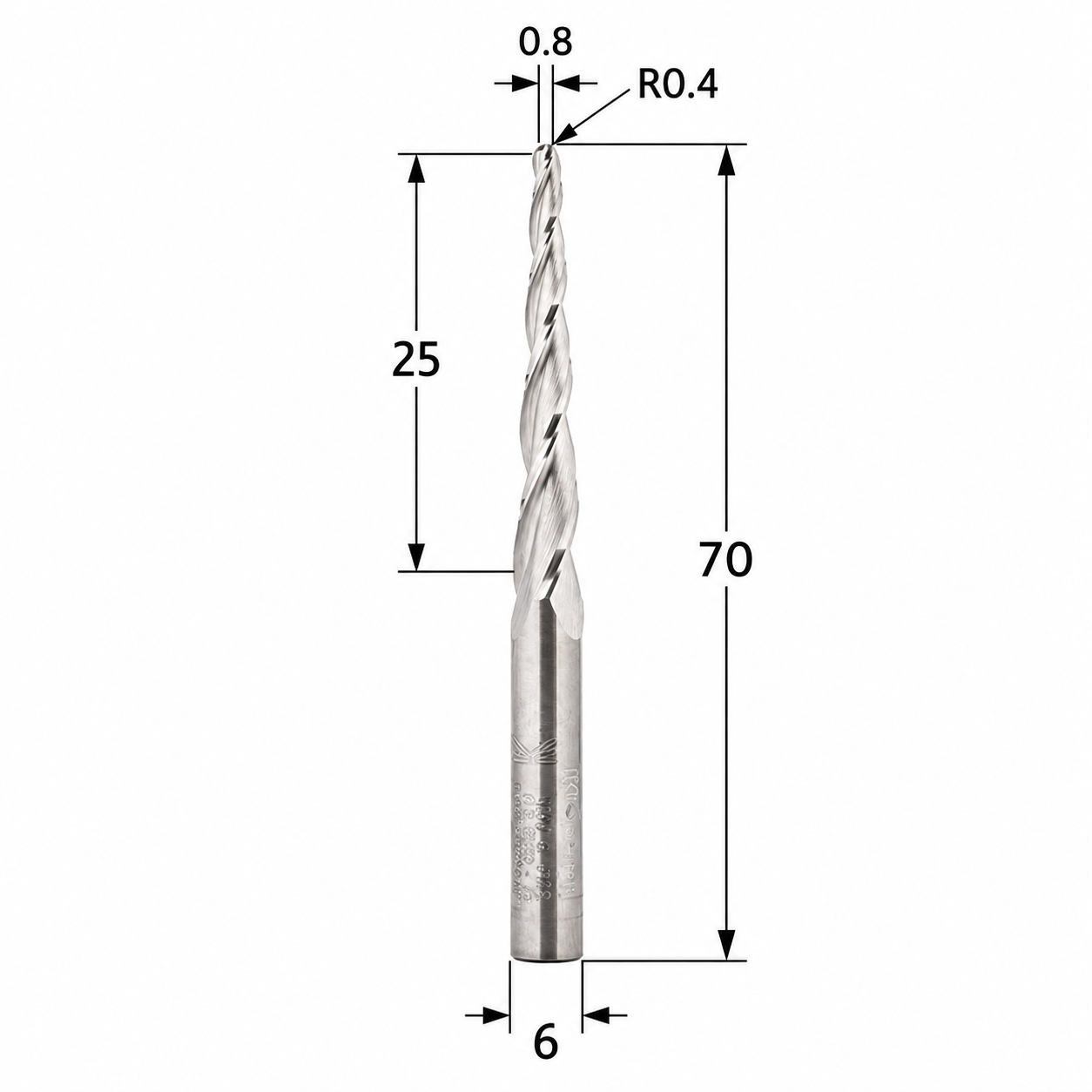

Klein tapered ball nose triple flute up cut Z3 router bit with 6 mm shank, 0.8 mm tip diameter, 0.4 mm radius, 25 mm cutting length and 70 mm overall length.

Klein S6 Tapered Ball Nose Triple Flute Up Cut Z3 (Multiple Size Options)

R 1,029.00
R 1,029.00
Sold out
Including VAT. Shipping - R100 flat rate for orders under R1200, orders R1200 and over qualify for free shipping. T&Cs apply.
Nationwide delivery across South Africa
Click & Collect from Randburg
Secure online checkout

Product details

The Klein Tapered Ball Nose Triple Flute Up Cut Z3 Router Bits combine a tapered cutting profile with a rounded ball nose tip for detailed 3D carving, relief work and curved surface machining.

Suitable for softwood, hardwood and aluminium. Available in 0.8 mm, 1.6 mm and 3.17 mm tip diameters, each with a 6 mm shank, allowing you to select the level of detail required for your project.

Includes:

  • 1 × Klein Tapered Ball Nose Triple Flute Up Cut Z3 Router Bit in the selected size

Specifications

  • Brand: Sistemi Klein

  • Flutes: 3

  • Cutting geometry: Up cut

  • Profile: Tapered ball nose

  • Shank diameter: 6 mm

  • Tip diameters: 0.8 mm, 1.6 mm and 3.17 mm

  • Overall length: 70 mm

  • Suitable materials: Softwood, hardwood and aluminium

Shank Diameter Tip Diameter Tip Radius Cutting Length Overall Length
6 mm 0.8 mm 0.4 mm 25 mm 70 mm
6 mm 1.6 mm 0.8 mm 25 mm 70 mm
6 mm 3.17 mm 1.59 mm 30 mm 70 mm
