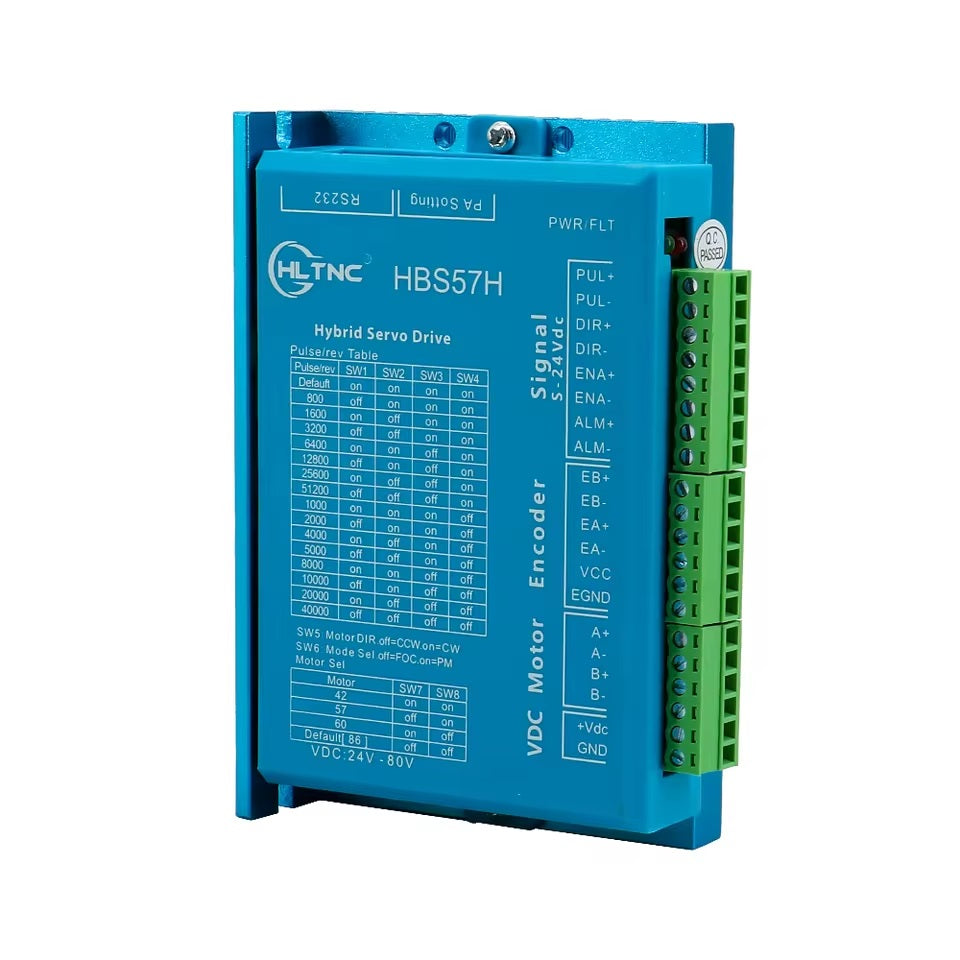

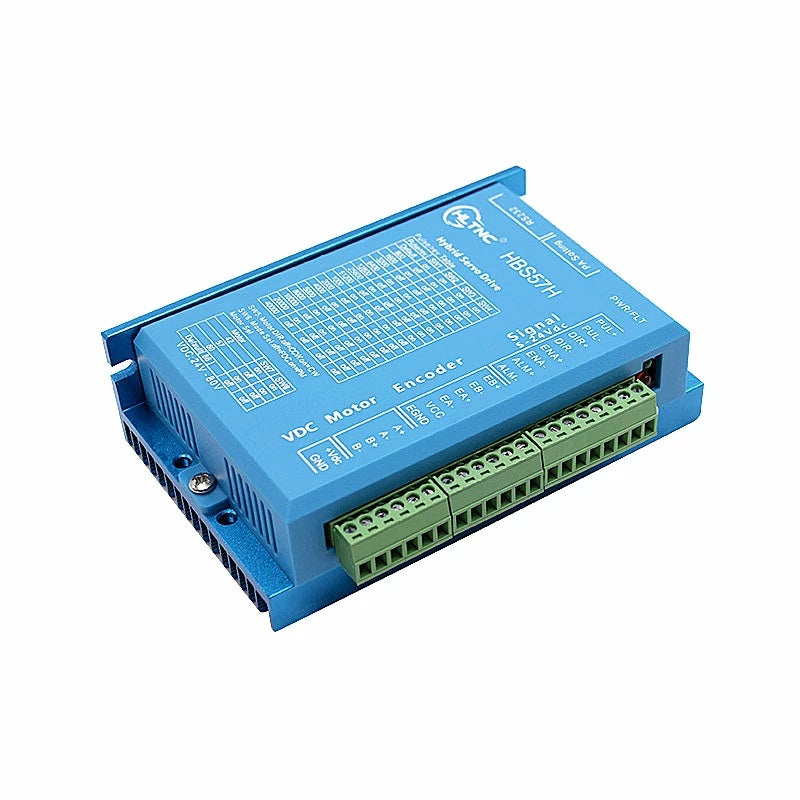

The HBS57H Hybrid Servo Drive is a high-performance closed loop driver designed for NEMA 23 hybrid servo motors. It provides fast response, accurate positioning, and smooth motion control, making it ideal for CNC routers, automation systems, and other precision motion applications.
This driver supports a wide microstepping range and operates on safe, low-voltage DC power, making it reliable and easy to integrate into new or existing CNC control systems.
Includes:
1× HBS57H Hybrid Servo Drive
Specifications:
-
Model: HBS57H
-
Input Voltage: 24–48V DC
-
Microstepping: Adjustable from 200 to 51,200 steps/rev
-
Compatible Motor Models:
-
57HSE1.1.5N-D24
-
57HSE2.2N-D24-3M
-
-
Control Type: Closed loop / hybrid servo
-
Signal Input: Step / Direction
