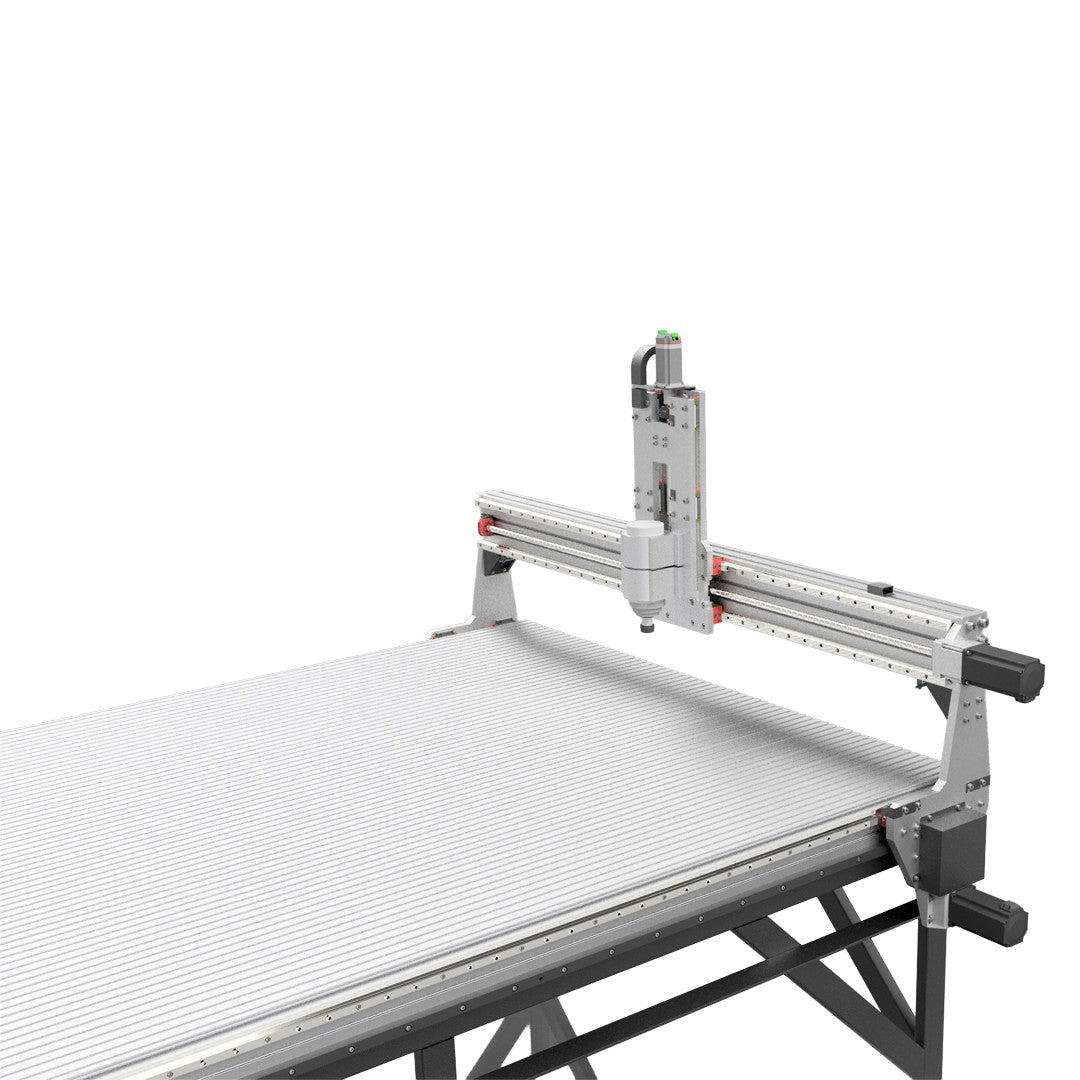

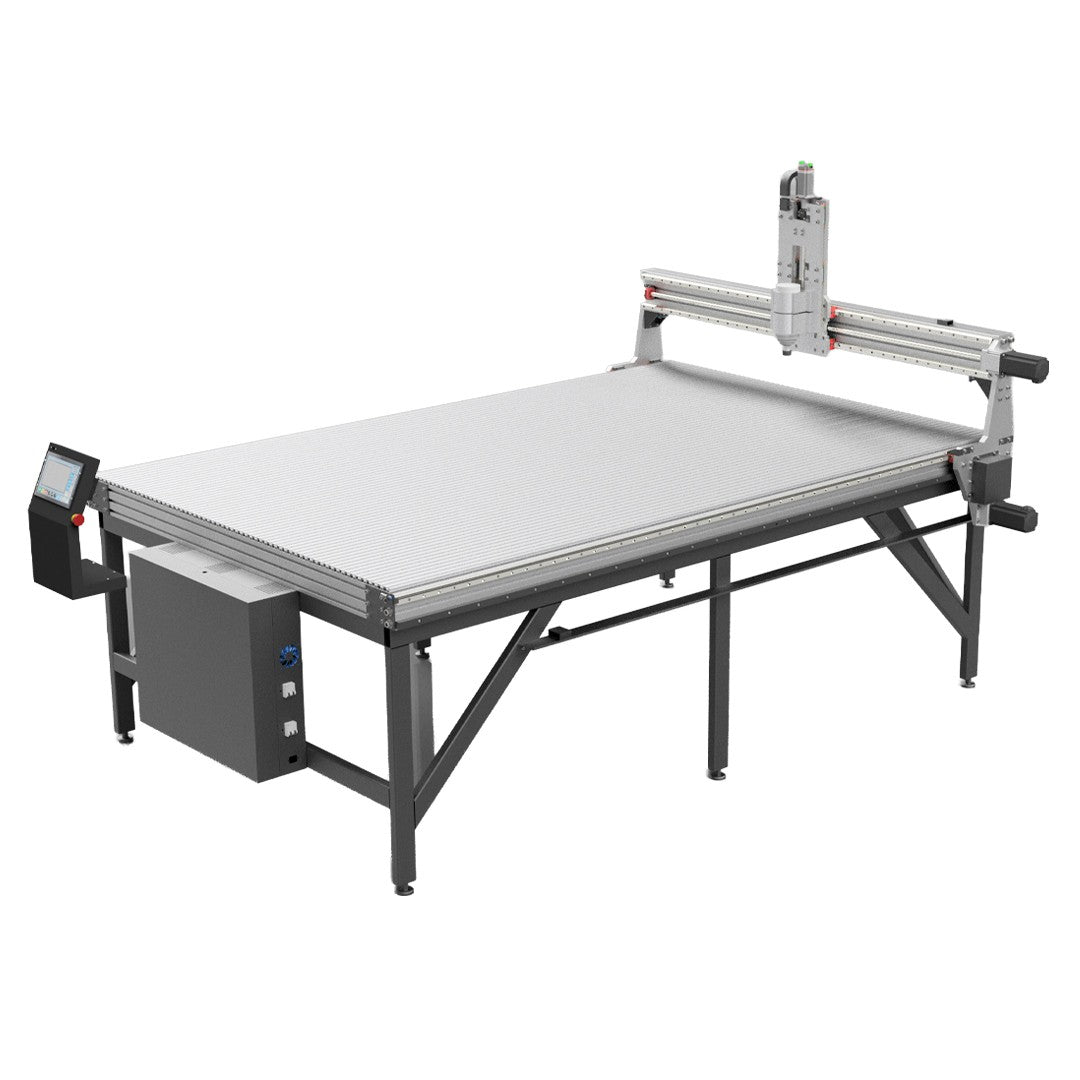

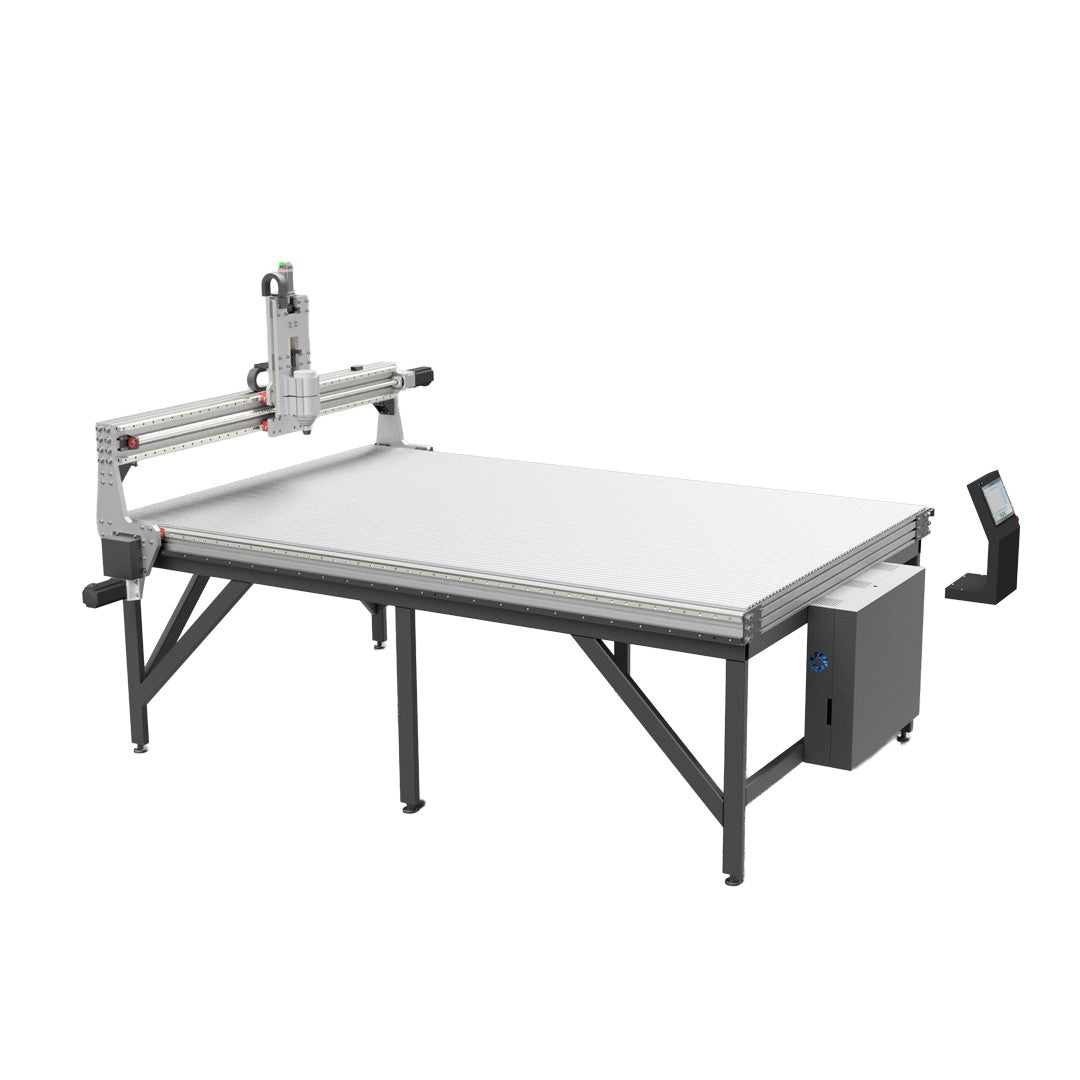

The Elite Series 3020 CNC Router is a robust, precision-built CNC machine designed and assembled by CNC Online for demanding production and workshop environments. As part of CNC Online's top-of-the-range Elite Series, the 3020 combines industrial-grade components, exceptional rigidity, and reliable performance to deliver professional machining results. Featuring a large 3000mm × 1934mm bed, the Elite Series 3020 is designed for larger sheet processing, production work, and high-volume manufacturing applications while maintaining excellent accuracy and repeatability.
Built on a heavy-duty steel base with a reinforced aluminium extrusion structure, the Elite Series 3020 offers outstanding rigidity and stability for demanding machining operations. Precision motion is achieved through HGR25 linear rails and HGW25CC bearing blocks on all axes, ensuring smooth travel, high load capacity, and dependable long-term performance.
To accommodate the increased machine size and working area, the 3020 utilises powerful closed loop 12Nm NEMA 34 stepper motors on the X and Y axes, providing the torque required for rapid movement and heavy-duty cutting applications. The machine combines a helical rack and pinion drive system on the X axis with SFE2020 ball screws on the Y axis and an SFU1605 ball screw on the Z axis, delivering an effective balance between speed, accuracy, and reliability.
At the heart of the machine is a proven 3kW water-cooled spindle, offering smooth operation, low noise levels, and the performance required for continuous machining across a wide range of materials. Designed for manufacturers, fabrication workshops, and production environments, the Elite Series 3020 CNC Router delivers industrial-grade capability in a machine built for precision, productivity, and long-term reliability.
Included:
- 1 x Elite Series 3020 CNC Router
- 1 x Steel Base Frame
| Specification | Value |
|---|---|
| Model | Elite Series 3020 CNC Router |
| Bed Size | X = 3000mm / Y = 1934mm |
| Travel Area | X = 2680mm / Y = 1750mm / Z = 215mm |
| Motors | X & Y Axis: NEMA 34 Closed Loop Stepper Motors (12Nm) / Z Axis: NEMA 23 Closed Loop Stepper Motor (3Nm) |
| Guide Rails | HGR25 Linear Rails on All Axes |
| Bearing Blocks | HGW25CC Bearing Blocks on All Axes |
| Drive System | X Axis: Rack and Pinion / Y Axis: SFE2020 Ball Screw / Z Axis: SFU1605 Ball Screw |
| Table Surface | Aluminium T-Slot Bed or Wooden Spoilboard |
| Spindle | 3kW Water-Cooled Spindle |
| Controller | DDCSV4.1 4-Axis Offline Controller |
| Frame Construction | Steel Base with Aluminium Extrusion Structure |
| Levelling Feet | Adjustable Mount Feet |
| Machine Footprint | Length: 3.21m / Width: 2.54m / Height: 2.09m |
| Overall Mass | 514kg |
| Table Height | 1.07m |
Click here to view the dimensions.
