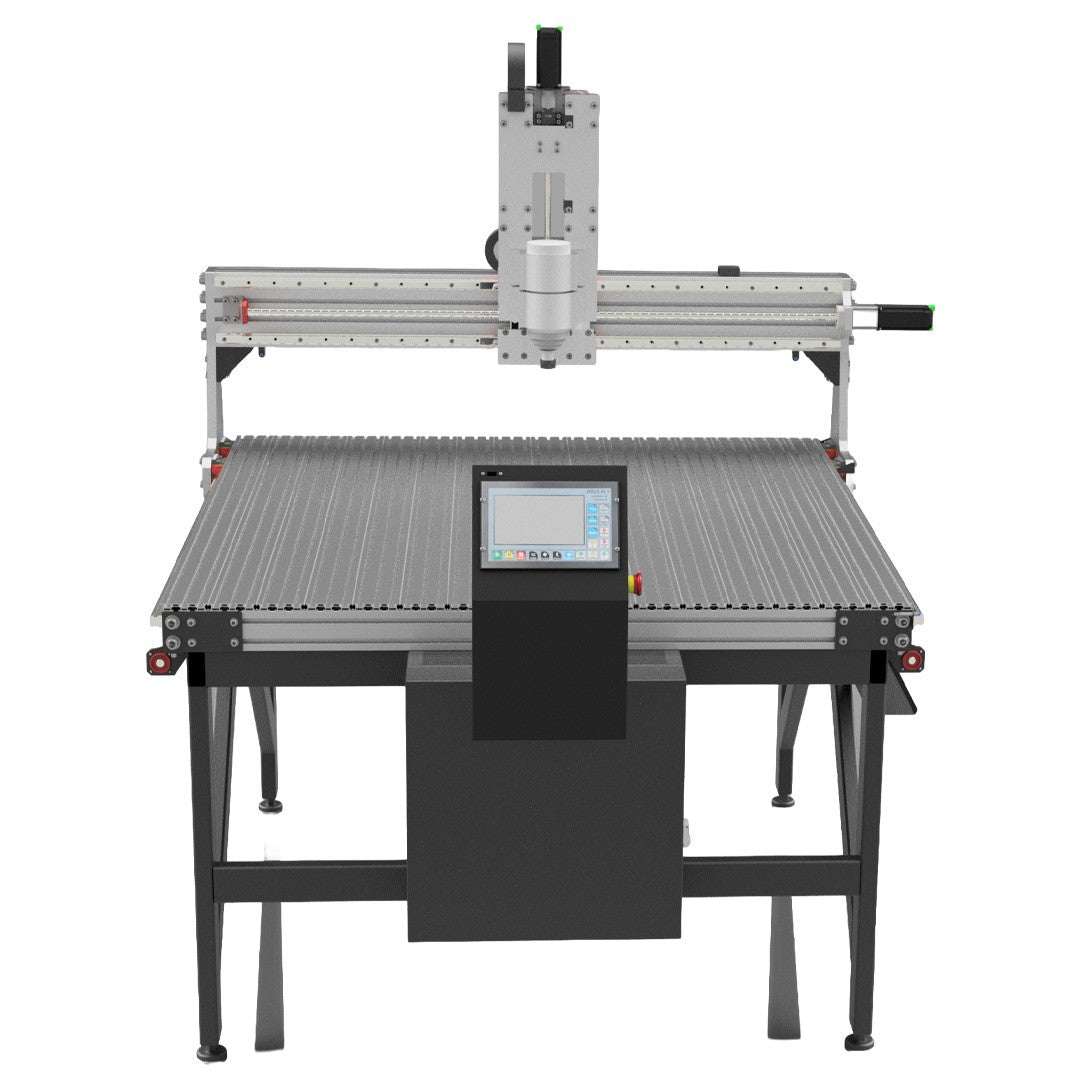

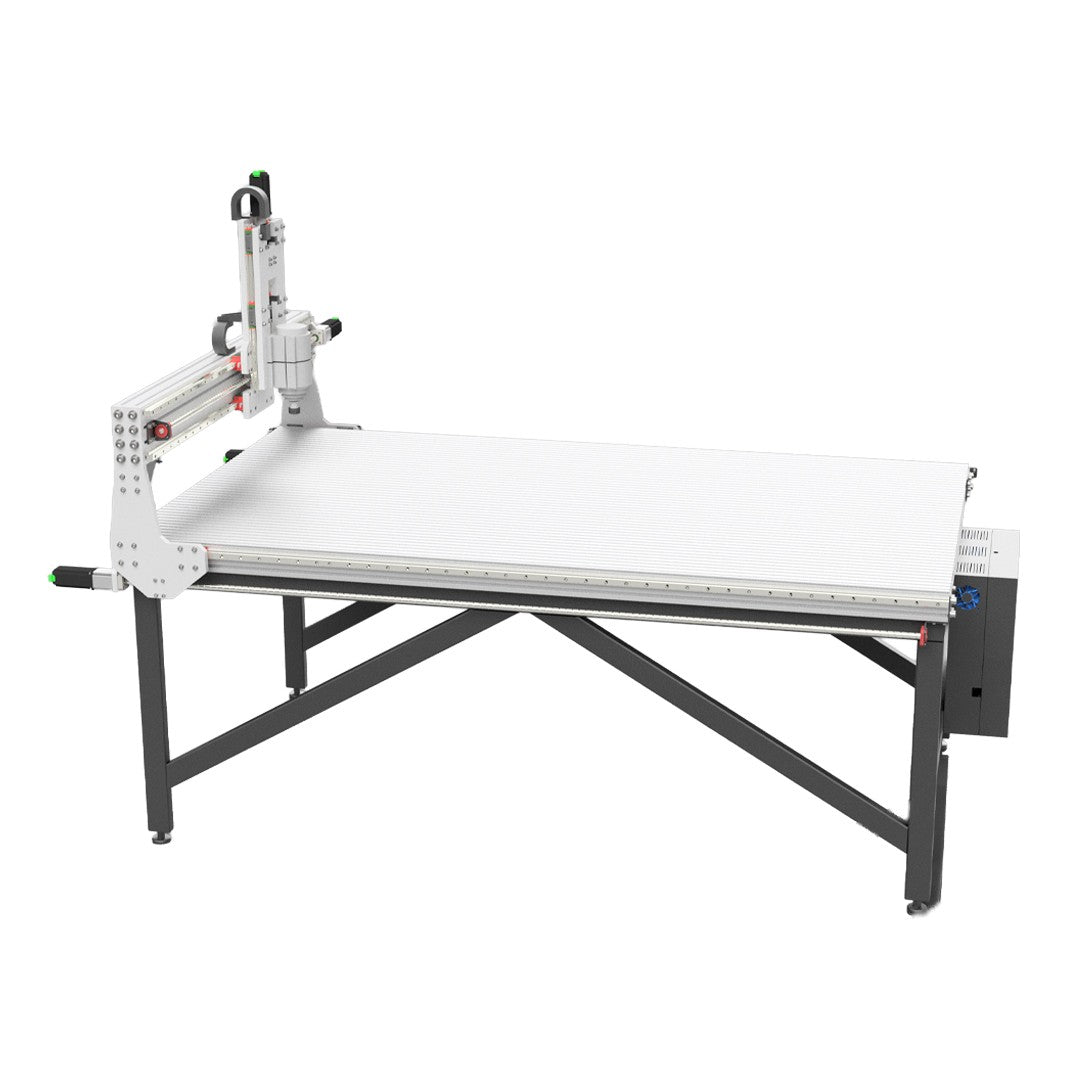

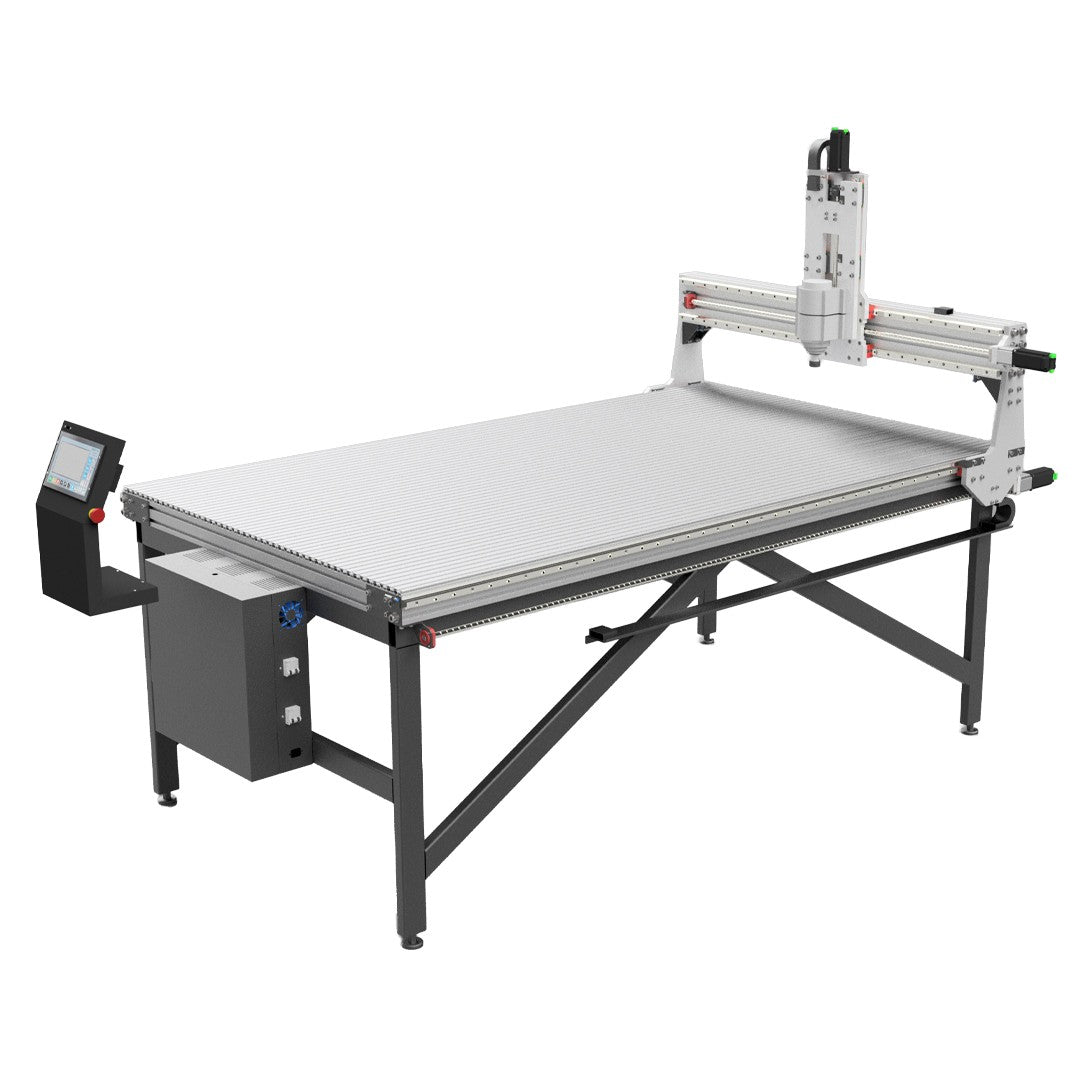

The Elite Series 2515 CNC Router is a robust, precision-built CNC machine designed and assembled by CNC Online for demanding production and workshop environments. As part of CNC Online's top-of-the-range Elite Series, the 2515 combines industrial-grade components, exceptional rigidity, and reliable performance to deliver professional machining results. Featuring a generous 2500mm × 1440mm bed, the Elite Series 2515 provides increased working capacity while maintaining the accuracy, rigidity, and versatility required for machining wood, plastics, composites, and non-ferrous metals.
Built on a heavy-duty steel base with a reinforced aluminium extrusion structure, the Elite Series 2515 offers exceptional stability while maintaining a modular and serviceable design. Precision motion is achieved through HGR25 linear rails and HGW25CC bearing blocks on all axes, ensuring smooth travel, high load capacity, and reliable long-term performance.
Each axis is driven by dedicated closed loop 3Nm stepper motors coupled to ball screw drive systems, providing accurate positioning and repeatable motion control. At the heart of the machine is a powerful 3kW water-cooled spindle, delivering the performance required for continuous operation and a wide range of cutting applications.
Designed for makers, manufacturers, and production workshops alike, the Elite Series 2515 CNC Router combines industrial-grade components with a practical machine footprint, making it an excellent solution for precision CNC routing and machining applications.
Included:
- 1 x Elite Series 2515 CNC Router
- 1 x Steel Base Frame
| Specification | Value |
|---|---|
| Model | Elite Series 2015 CNC Router |
| Bed Size | X = 2500mm / Y = 1440mm |
| Travel Area | X = 2215mm / Y = 1255mm / Z = 215mm |
| Motors | NEMA 23 Closed Loop Stepper Motors (3Nm) on All Axes |
| Guide Rails | HGR25 Linear Rails on All Axes |
| Bearing Blocks | HGW25CC Bearing Blocks on All Axes |
| Ball Screws | X & Y Axis: SFE2020 / Z Axis: SFU1605 |
| Table Surface | Aluminium T-Slot Bed or Wooden Spoilboard |
| Spindle | 3kW Water-Cooled Spindle |
| Controller | DDCSV4.1 4-Axis Offline Controller |
| Frame Construction | Steel Base with Aluminium Extrusion Structure |
| Levelling Feet | Adjustable Mount Feet |
| Machine Footprint | Length: 2.9m / Width: 1.76m / Height: 2.05m |
| Overall Mass | 300kg |
| Table Height | 1.03m |
Click Here to view the dimensions.
