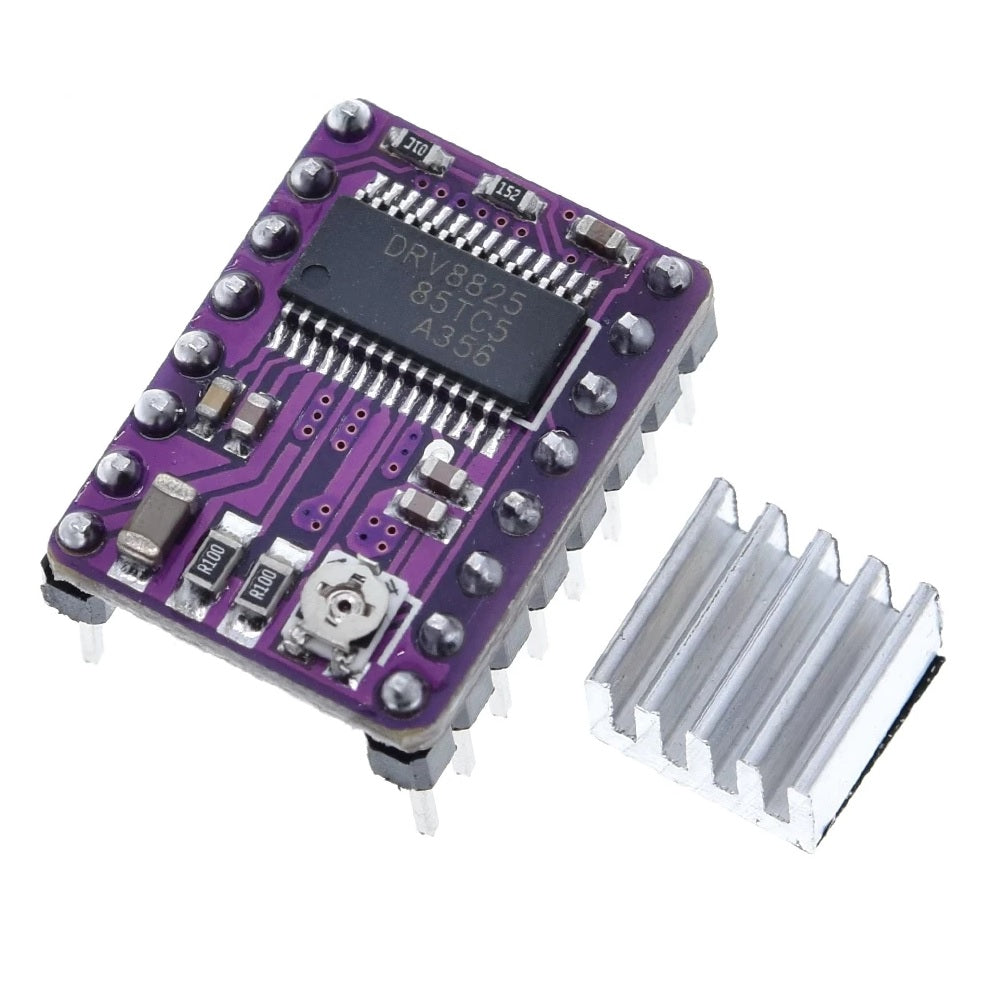

The DRV8825 stepper motor driver is an upgraded version of the A4988, offering higher current output, finer microstepping, and improved overall performance. Ideal for 3D printers, CNC machines, and robotics, this driver provides smooth motion control and reliable operation.
It features adjustable current limiting, allowing you to safely drive stepper motors at higher voltages to achieve faster step rates and improved torque.
Includes:
-
1× DRV8825 Stepper Motor Driver
-
1× Heatsink
Specifications:
-
Max Output Current: 2.2A
-
Max Input Voltage: 45V
-
Microstepping Modes:
-
Full Step
-
Half Step
-
1/4 Step
-
1/8 Step
-
1/16 Step
-
1/32 Step
-
-
Adjustable Current Control: Set maximum output using the onboard potentiometer
-
Protections:
-
Over-temperature thermal shutdown
-
Over-current shutdown
-
Under-voltage lockout
-
