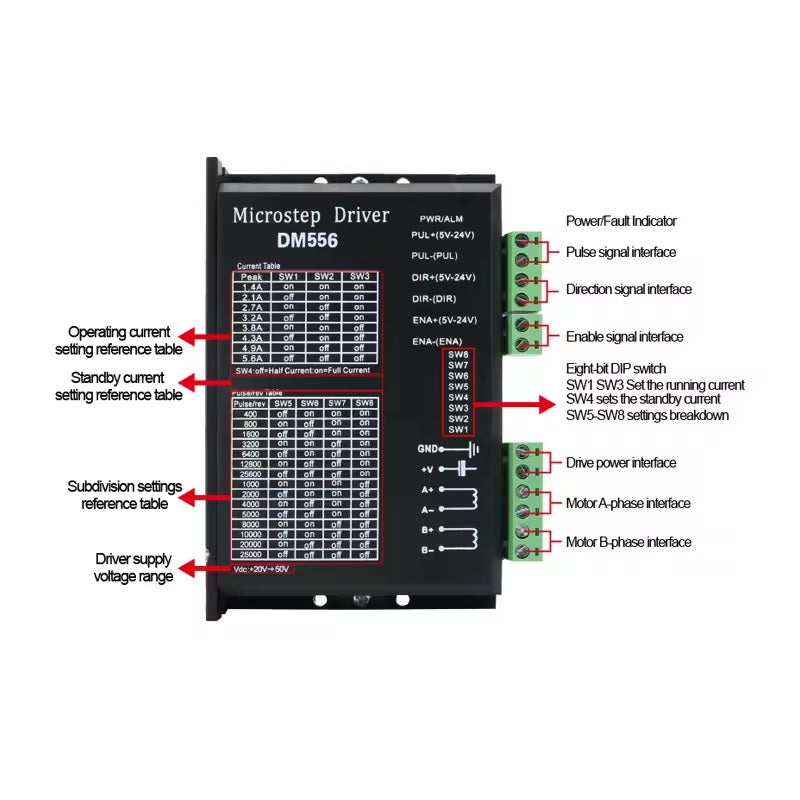

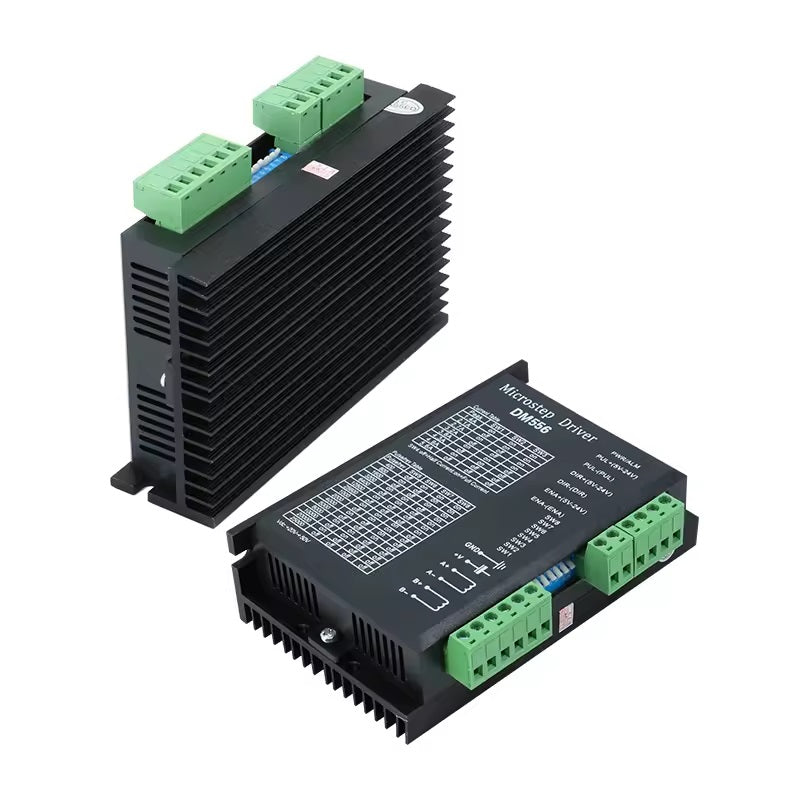

The DM556 Microstep Driver is a compact, high-performance driver designed for NEMA 17, NEMA 23, and similar open loop stepper motors. It provides precise motion control, fine microstepping resolution, and efficient current management, ensuring smooth, quiet operation across a wide speed range.
Ideal for CNC routers, 3D printers, laser engravers, and automation systems, the DM556 driver delivers stable torque, low vibration, and reliable performance even in demanding applications.
Includes: 1× DM556 Microstep Driver
Specifications:
-
Model: DM556
-
Compatible Motors: NEMA 17 / NEMA 23 Open Loop Stepper Motors
-
Input Voltage: 20–50V DC
-
Microstepping: 1/2 – 1/256
-
Control Mode: Step and Direction (Pulse Signal)
