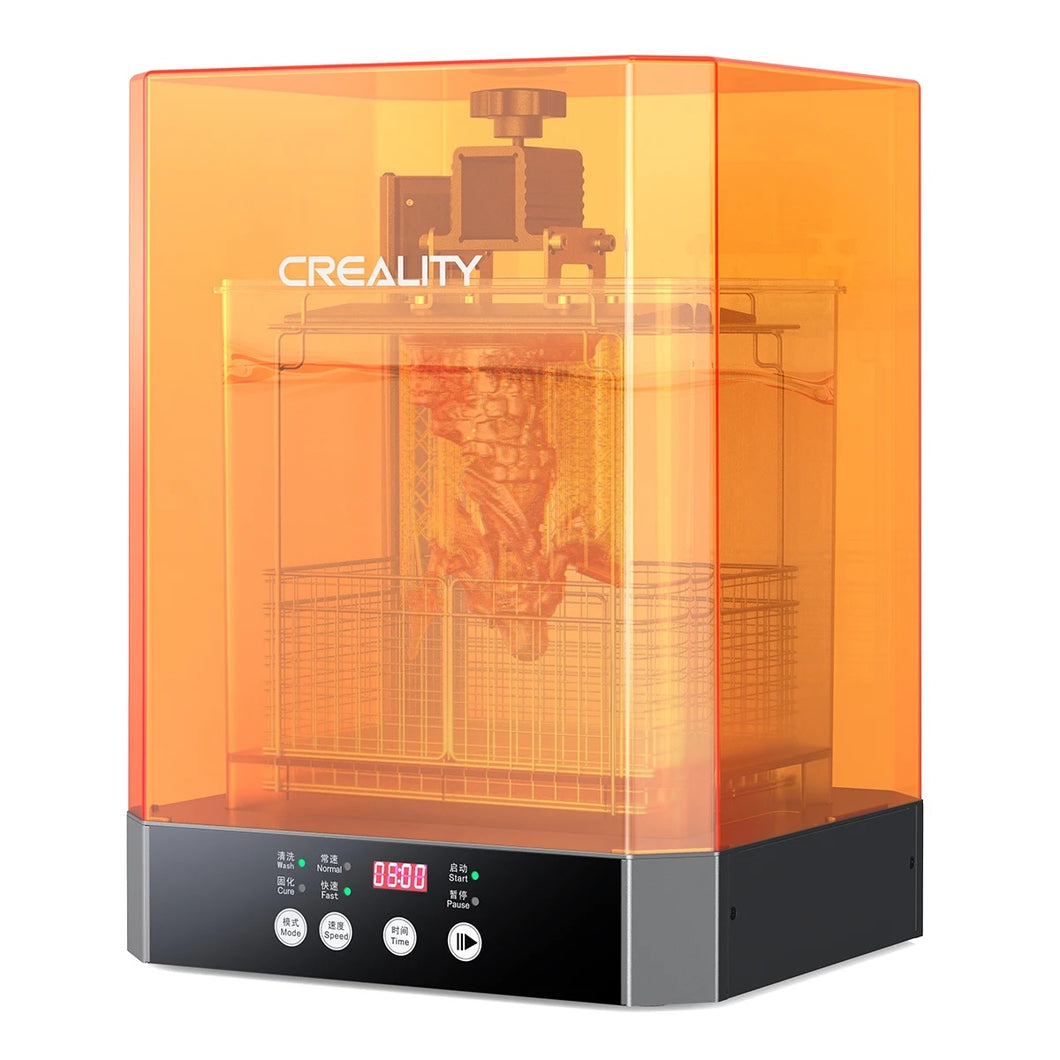

UW-03, 3rd Gen Curing and Washing Machine
Why Do You Need a 2-in-1 Wash and Cure Machine?
Fresh resin prints are often covered with messy impurities and under-cured resin that may impair the final quality. This can be fixed by the 2-in-1 UW-03
Ever Stronger Vortex for a Cleaner Wash
A Mighty Vortex Cleans All
UW-03 features a powerful magnetic propeller to stir up a mighty vortex of water/alcohol. It can rinse off stubborn resin residues in every nook and cranny of miniatures or figurines.
Efficient Square Space for Easier Cure
Intense 360 Degrees of UV Exposure
An enhanced array of 405nm UV LEDs brings about an intense UV exposure. As the turntable rotates, the model surface gets solidified quickly and evenly. So, your prints can become strong and durable
Wonderful User Experience as Always.
Triple Precautions for Safety
- The tinted lid blocks 99.9% of UV light from harming human eyes.
- The curing process will stop if the UV-blocking lid is not in place. Zero hazard from the working UV light or turntable.
- Fully sealed washing container. No more leakage, spilling or volatilization of liquid during the washing process.
Handy Buttons for Control
Speed and timer for WASH/CURE can be set in seconds to reflect the resin type, model size and complexity. The physical buttons give you tactile cues while operating.
Specifications
Product Dimensions: 325 x 303 x 436mm
Package Dimensions: 378 x 346 x 507mm
Net Weight: 5.4kg
Gross Weight: 7.5kg
Printing Speed: 1.5s/layer
Wash volume: 210 x 160 x 200mm (6.72L)
Cure Volume: 215 x 165 x 300mm (10.64L)
UV Wavelength: 405nm
UV LED: 18 UV LEDs
Timer Setting: 5-30min
Speed Mode: Fast/Normal
Control Mode: Physical Buttons
Enclosure: Fully Enclosed
Container Material: PP
Basket Material: Stainless Steel
Input Voltage: 100-240V
Output Voltage: DC 24V
Rated Power: 60W
UI Languages: English, Japanese
