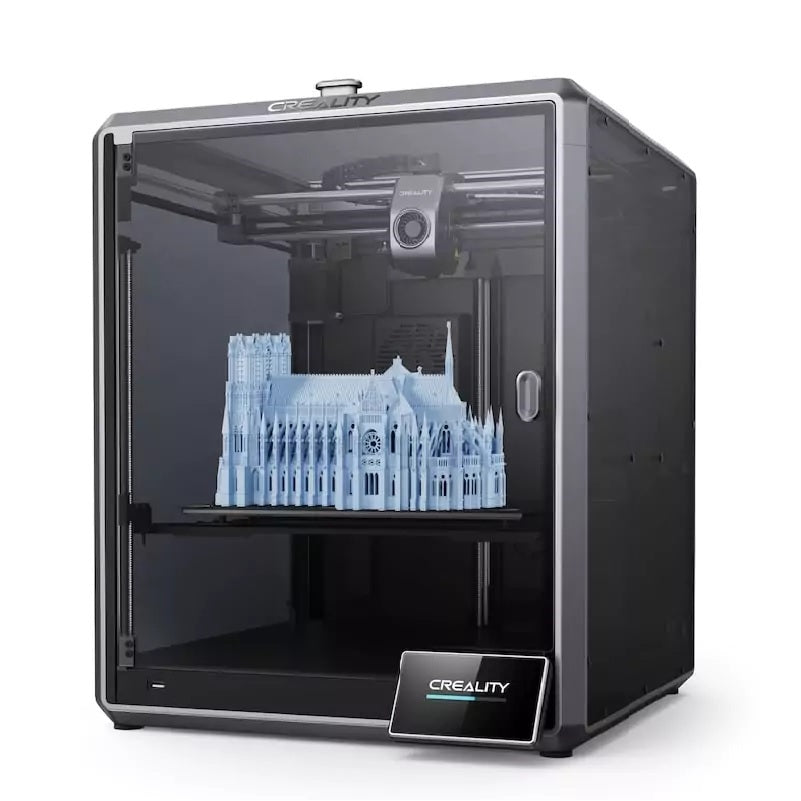

K1 Max. Speedy. Larger. Smart.
Super Power of Speed
12X Faster, Defy Limitations
K1 Max reaches 600mm/s* in only 0.03s based on 20000mm/s² acceleration. It can be as productive as several 3D printers together.
Nimble Setup for Speed
K1 Max combines the nimble Core XY with a 190g lightweight printhead for less motion inertia. Agile and swift.
Max. 32mm³/s Flow
New ceramic heater, encircling the entire hot End. It heats to 200℃ in 40s and melts the filament instantly. Dual-gear direct extruder, delivering strong extrusion force. Hotend with a titanium alloy heatbreak and a hardened steel nozzle, working well in up to 300℃.
Get Cool Models On the Fly
Model Cooling by Dual Fans
A large fan on the printhead with air ducts cools the model directly. An 18W auxiliary fan in the build chamber enhances the cooling effect, too. The model hardens before any stringing and warping could happen. It allows support-free bridges and overhangs.
Max Capacity, Efficient Use of Space
K1 Max boasts a 300x300x300mm large build volume, great for rapid prototyping or design verification. It also offers a high build volume to printer size ratio of 25.5%. K1 Max is the most size-efficient Fused deposition modeling 3D printer in its class.
AI-assisted Carefree Printing
AI LiDAR Takes Care of the First Layer
Still worry about the first layer? Just leave it all to the AI LiDAR of K1 Max. The 1 μm resolution LiDAR will scan the first layer on its own. It will pause printing and tell you immediately if something goes wrong.
AI Camera Keeps a Keen Watch
K1 Max uses an AI camera to watch over spaghetti failure, foreign objects, debris, etc. It will alert you when an error occurs. It also supports real-time monitoring and creates time-lapses for sharing.
Smart System, Unbridled Performance
K1 Max adopts the smart Creality OS. It features a straightforward UI, and syncs data and commands with PC, phone, Cloud, and add-on modules. The snappy dual-core 1.2GHz CPU powers high-speed printing with ease. The 8G ROM stores up to 400 model files and enables quick writing and reading.
Trustworthy Print Quality
Rigid Frame, Stable Quality
The frame of K1 Max is built with rigid die-cast aluminum alloy parts. It enables steady printing at high speed. And the print quality is excellent the whole time.
Delicate Texture without Z-banding
The upgraded Z-axis with more accurate positioning reduces Z-banding effectively. The texture has never been so subtle.
Smooth Surface with Input Shaping
A G-sensor in the printhead measures the resonance frequencies of high-speed printing and shapes the input to mitigate it. No more ghosting or ringing on the print.
Hands-free Auto Leveling
Strain sensors in the heat bed generate an accurate leveling mesh for auto compensation.
Minimal Operations, If Any
- Quick Self Test with the tap of a button
- Quick Heating Heatbed
- Flexible Build Plate
Effective Air Purifier
The built-in air filters will purify unhealthy compounds generated during printing, making printing much more pleasant.
Specifications
Printing Technology: Fused deposition modeling
Build Volume: 300x300x300mm
Product Dimensions: 435x462x526mm
Package Dimensions: 508x508x608mm
Net Weight: 18kg
Gross Weight: 23kg
Printing Speed: ≤600mm/s
Acceleration: ≤20000mm/s²
Printing Accuracy: 100±0.1mm
Layer Height: 0.1-0.35mm
Extruder: Dual-gear direct drive extruder
Filament Diameter: 1.75mm
Nozzle Diameter: 0.4mm
Nozzle Temperature: ≤300℃
Heatbed Temperature: ≤100℃
Build Plate: Flexible build plate
Leveling Mode: Dual Hands-free auto leveling
File Transfer: USB drive, Ethernet, WiFi
Display Screen: 4.3" color touch screen
AI Camera: Yes
AI LiDAR: Yes
Power Loss Recovery: Yes
Filament Run-out Sensor: Yes
Air Purifier: Yes
Input Shaping: Yes
Lighting Kit: Yes
Sleep Mode: Yes
Rated Voltage: 100-240V~, 50/60Hz
Rated Power: 1000W
Supported Filaments: ABS, PLA, PETG, PET, TPU, PA, ASA, PC, PLA-CF, PA-CF, PET-CF
Printable File Format: G-Code
Slicing Software: Creality Print, Compatible with Cura, Simplify3D, PrusaSlicer
File Formats for Slicing: STL, OBJ, AMF
UI Languages: English, Spanish, German, French, Russian, Portuguese, Italian, Turkish, Japanese, Chinese
