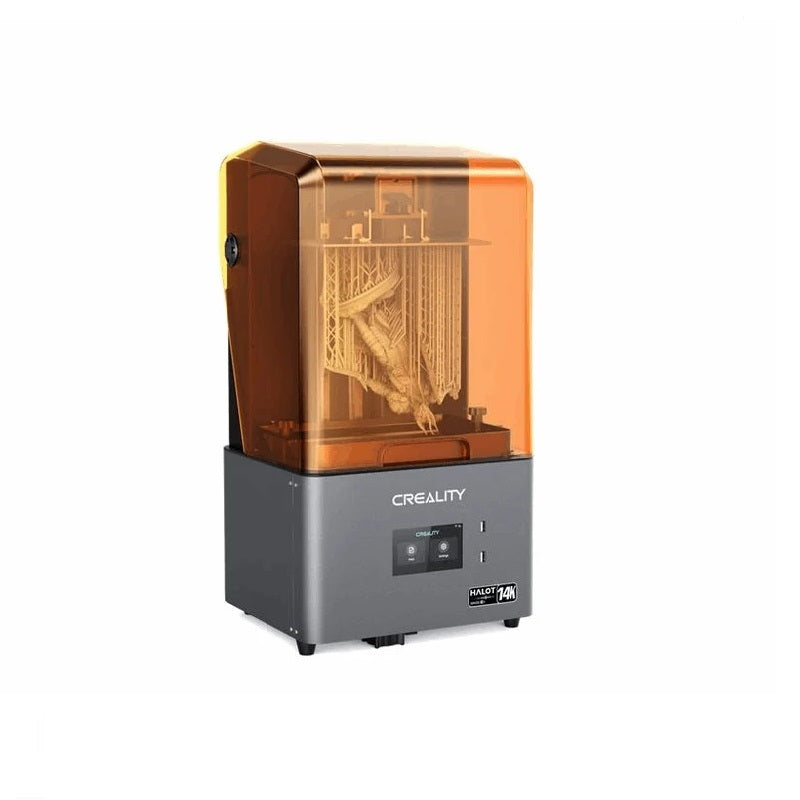

Halot-Mage S 14K, Stunning Details & Speed
Finest Details Come to Life with a 14K LCD
Stunning 14K, Utterly Exquisite
HALOT-MAGE S features a premium LCD screen with 14K ultra-high resolution. It has the magic to render shapes, textures and fabrics exactly as designed. Each 3D print represents a true-to-life art piece.
Integral Light Source 3.0, Pro-level Fidelity
As the 3rd iteration of the integral light source, it can deliver a strong and uniform UV light that cures each resin layer precisely and consistently. Hence, the print will be neat, sharp shapes with accurate dimensions.
Size & Quality, No More Trade-off
The 10.1" LCD underpins a 223*126*230mm build volume. Time to vivify your masterpiece in a decent size. No more holding back your creative talent.
Resin Printing Takes to Flight
"Dynax+" Mode, Ultra Fast
HALOT-MAGE S offers a 3-4x faster "Dynax+" mode that can be turned on with one tap of a button. It is able to finish a 15cm tall model in just one hour.
Agile & Steady "Dynax" Motion System
The build plate can be lifted and lowered in just 1.2s, then ready to print the next layer. With steady motion, there will be minimal layer lines.
Speed-intended "Pictor" Release Film
The 3-layered “Pictor" film is durable and able to reduce the peel force by 35%*. So, the build plate can be released without a hitch. There is also a spare FEP film for replacement (only suitable for regular-speed printing).
Print Success Bound to Happen
Great Adhesion with Laser-carved Build Plate
HALOT-MAGE S adopts a CNC-machined aluminum alloy build plate to bear a uniform first layer. The plate surface adopts a special laser-carved pattern selected out of dozens of patterns. It ensures stronger adhesion to and quicker removal of the models.
2.25X Leveling Tension with Non-slip Adapter
The build plate adapter is brushed, which boosts the friction by 2.25 times to 3530N*. So, the leveling state is firmly locked without slacking.
Smarter Experience, Neat and Quick
Smart HALOT OS, Freedom of Control
The latest HALOT OS enables easy remote printing from a phone or PC. With network, it can directly download sliced model files from the built-in Creality Cloud personal model library, Now, printing is beyond the limits of time, space and device.
Smart Air Purifier, Odor-free Joy
The purifier can switch ON/OFF according to the printing status. With a newly developed activated carbon filter, it is more efficient in absorbing resin odor. At the back is a vent hole to connect an exhaust tube.
Specifications
Printing Technology: LCD MSLA
Build Volume: 223 x 126 x 230mm (6462cm³)
Product Dimensions: 333 x 270 x 608mm
Package Dimensions: 421 x 356 x 672mm
Net Weight: 13.13kg
Gross Weight: 16.35kg
Printing Speed: ≤150mm/h
Layer Height: 0.05-0.2mm
LCD Screen: 10.1" Mono LCD
LCD Resolution: 14K (13320*5120）
XY Resolution: 16.8x24.8μm
Light Source: Integral Light Source 3.0
Light Uniformity: ＞90%
File Transfer: USB Drive, RJ45 Ethernet Cable, WiFi
Release Film: High-speed "Pictor" Film /Regular FEP Film
Smart Resin Pump: Optional
Air Purifier: Yes
Noise Level: 49dB(1m)
Rated Power: 100W
Resin: 405nm Resins
Slicing Software: HALOT BOX/CHITUBOX/Tango
Computer OS: Windows/Mac
File Formats for Slicing: STL/OBJ
Display Screen: 4.3"
Apps For Cloud Printing: Creality Cloud
Light Intensity: 3500±10%μW/cm²
UI Languages: English, Spanish, German, Dutch, Portuguese, Polish, Russian, Turkish, Italian, Chinese, Japanese, Korean
