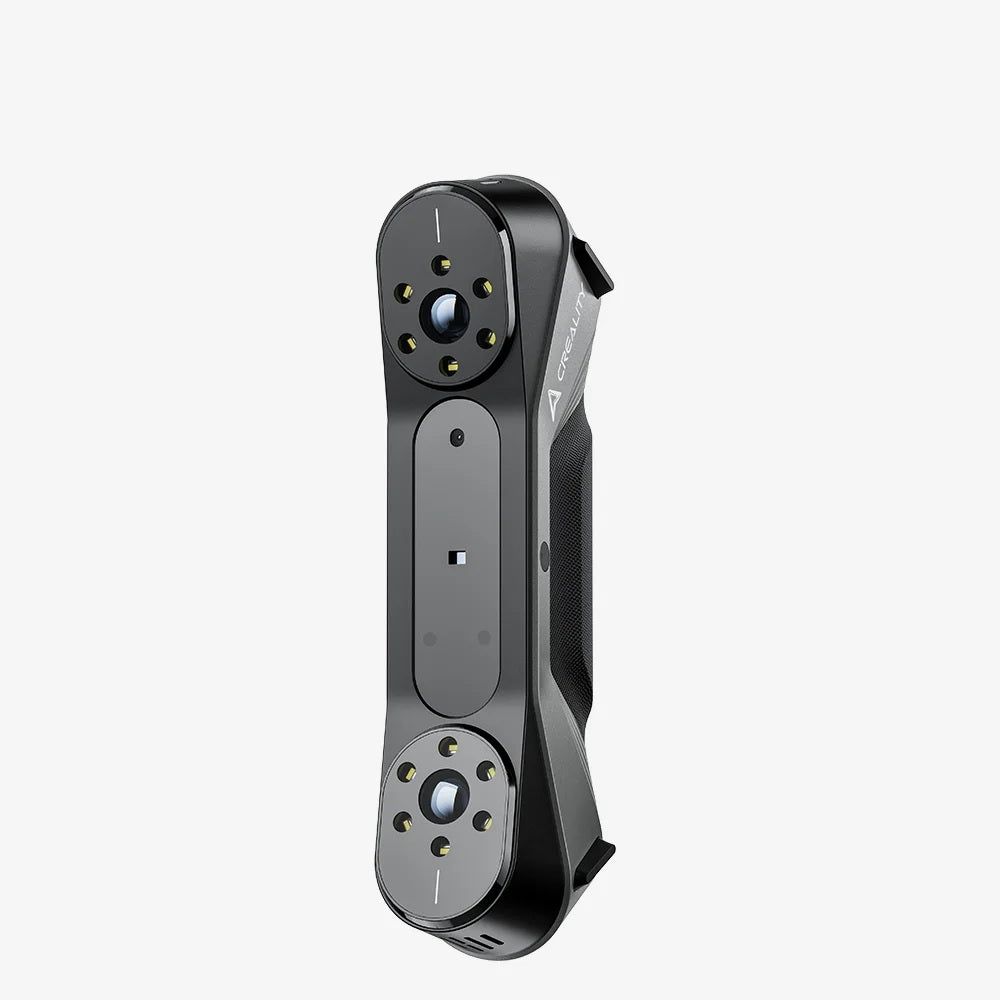

Creality CR-Scan Raptor 3D Scanner

CR-Scan Raptor 3D Scanner, Hybrid Blue Laser & NIR, Metrology Grade Accuracy

The First Multiple-line Blue Laser Consumer 3D Scanner

BLUE LASER & NIR

The CR-Scan Raptor integrates an innovative combination of blue laser and infrared light sources, covering scanning of small, medium, and large objects, which can meet the needs of diverse industrial 3D scanning scenarios.

7 Laser Lines, Metrology Grade Accuracy

7 parallel blue laser lines for fine scanning details, single laser line is very thin, up to 0.1mm to obtain sharper and clear edges.

High-speed Scanning Beyond Your Imagination

• Blue Light Scanning Speed up to 60fps
• NIR Scanning Speed up to 20fps

Unique Face & Body Algorithm

Face & body mode is equipped with a unique face mapping algorithm that captures more details, a human body scan only needs a few minutes.

Infrared Structured Light Scanning

Markerless Scanning

The CR-Scan Raptor utilizes speckle matching 3D imaging, No markers needed for feature-rich workpieces. Objects can be scan quickly and directly.

Accurate and Detailed Scanning

High Performance Structure

• ϕ 20 mm large depth of field lens
• Low distortion lens < 5%
• 9-elements glass lens
• Metal lens barrel and holder

The CR-Scan Raptor covers near and far distance scanning, and is equipped with good stability in high and low temperatures, providing reliable measurement scanning results.

Advanced temperature compensation algorithm

It can improve temperature stability.

Versatile Scanning for All Sizes

Combining line lasers with infrared structured light, the CR-Scan Raptor can scan objects ranging in size from 5*5*5 mm² - 2000*2000*2000 mm². Effortlessly scanning small figurines, bolts, faces, human bodies, automobile components, and more.

Anti-shaking for Smooth Scanning

Equipped with One-Shot 3D imaging technology, the CR-Scan Raptor is naturally stabilized and less likely to tracking loss.
Fast backtracking speed ensures smoother handheld scanning.

Scan Black/Metal Objects without Sprays

Even without scanning spray, you can scan
cars, car parts, tires, and other black/metal objects
to get the desired model effect.

24-bit Full-Color Scanning

Equipped with 12 circular LED texture lights, it can enhance
the brightness of color mapping in dark environments
and truly present the color of objects.

Intuitive Experience

Ring indicator light, providing real-time scanning status feedback; Paired with buttons, it offers comfortable and straightforward operation.

Lightweight and Portable, One-hand Control (Light 372g)

Effectively reduces long-term work fatigue

High Precision Glass Calibration Board Utilizes high-precision glass substrate calibration board for accuracy calibration, you can maintain the high precision of the scanner, maintain accuracy.

Specifications

3D imaging camera resolution: 1920 x 1200

Color Supplemental Light: 12 white LEDs

Marker Recognition Enhancement: 12 blue LEDs

Laser Safety: Class I (eye safe)

Button: Mechanical

IMU: Yes

Output format: OBJ/STL/PLY

Input Power: 12V 2A

Data Interface: TypeC/USB3.0

Device Dimensions: 215mm × 50mm × 74mm

Device Weight: 372g

Calibration board: High-precision glass calibration board

Wireless Scanning: Supported with Scan Bridge

Operating temperature: -10°C to 40°C

Operating humidity: 0-90%RH

System Support:

• Windows: 10/11 (64-bit), 17-Gen7 processor, Nvidia graphics card (6GB VRAM), 16GB RAM or higher

• macOS: 11.7.7 and above, Apple M1/M2/M3 processors, 16GB RAM or higher

Scanning Mode Specifications Comparison
