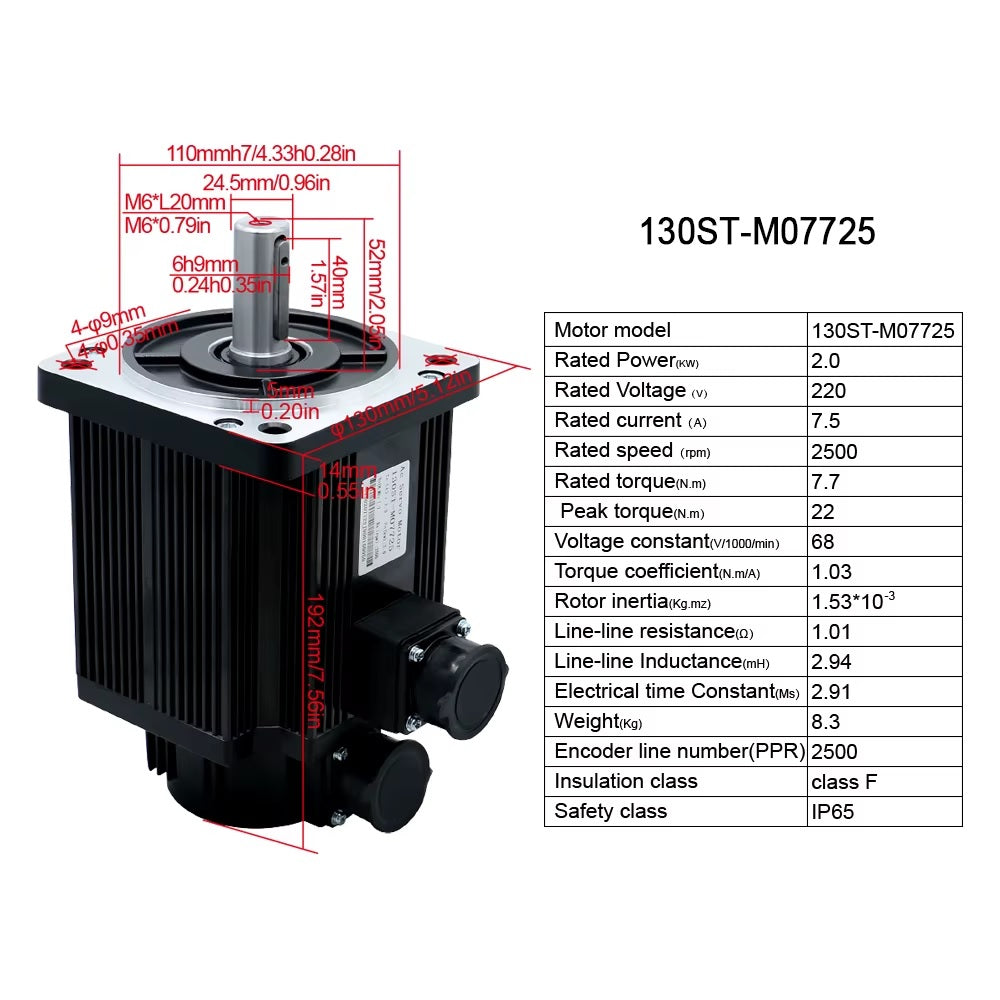

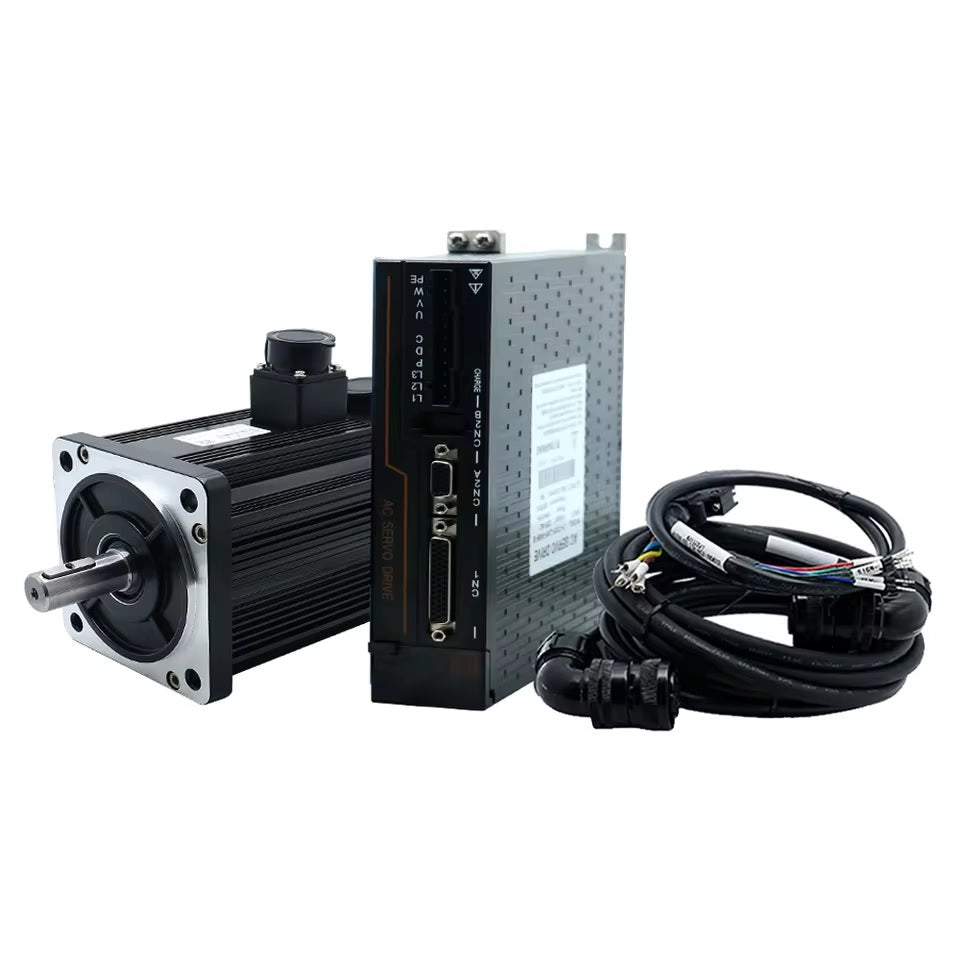

130ST-M07725 2kW Servo motor with magnetic 17 bit Absolute Encoder

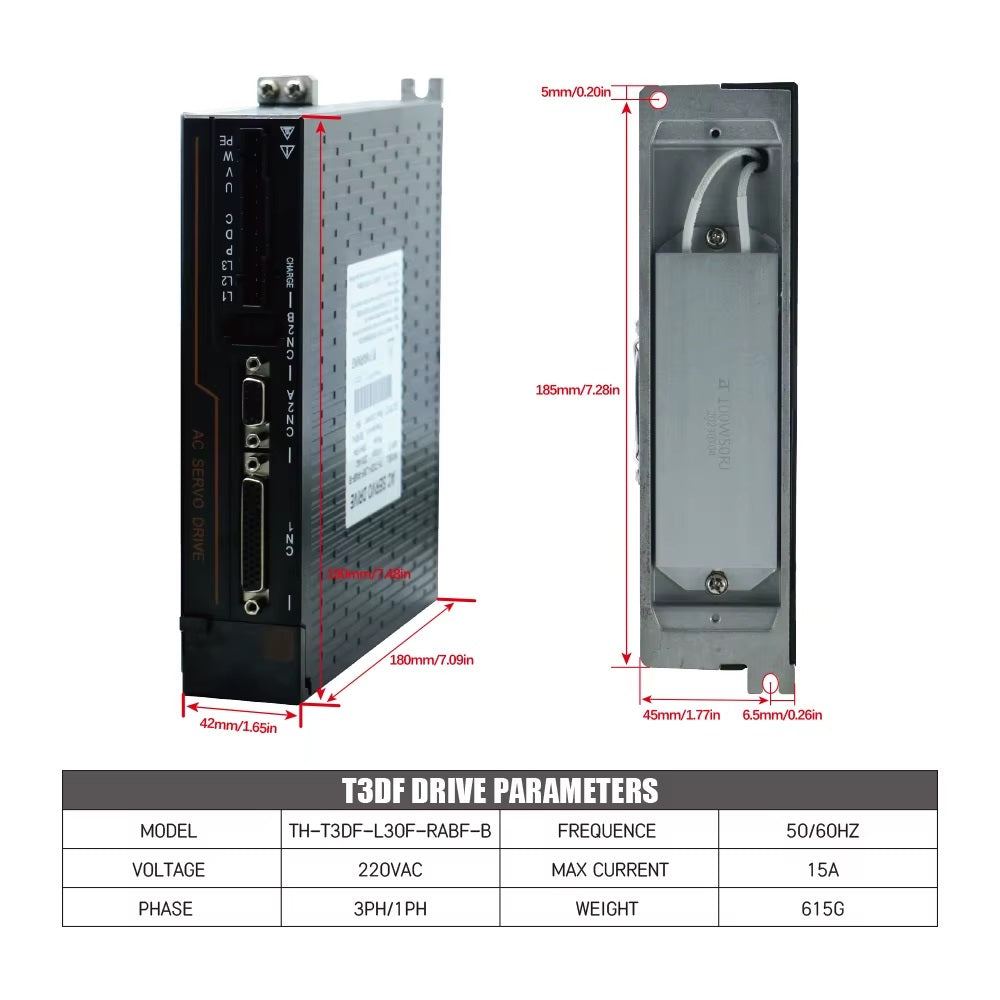

T3D-L30F RABF AC Driver
3 Meter Encoder Cable, Power Cable & Control Signal Cable
Nema 52 (130mm x 130mm)
Shaft Diameter: 22mm
Key: 6mm
Rated Power: 2kW
Rated Voltage: 220v
Rotor Pole Pairs: 5
Rated Torque: 7.7Nm
Instantaneous Max Torque: 22Nm
Rated Speed: 2500rpm
Max Speed: 3000rpm
Rated Current: 7.5A
Instantaneous Max Current: 14.4A
Torque Coefficient: 1.03±10% Nm/A
Line-line Resistance: 1.01Ω @ 20℃
Line-line Inductance: 2.94mH @20℃
Rotor inertia: 1.53x10^-3 Kg.mz
Max radial load: 392N
Max axial load: 147N
Weight 8.3Kg
Encoder Resolution: 2500ppr
IP Rating: IP65
Induction Class: F
Insulation Resistance: More than 20m Ω DC500V
Insulation Withstand voltage: AC 1500V 1 minute
Click here to view the user manual.
