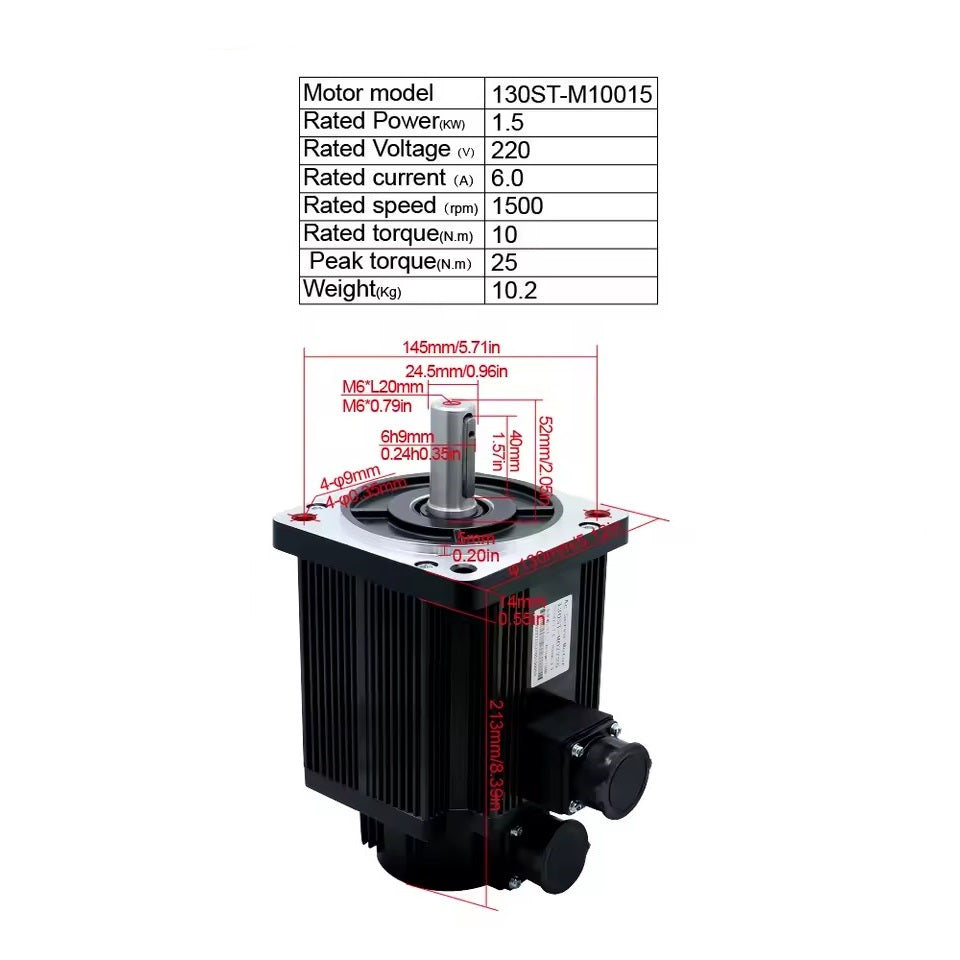

130ST-M10015 1.5kW Servo motor with magnetic 17 bit Absolute Encoder

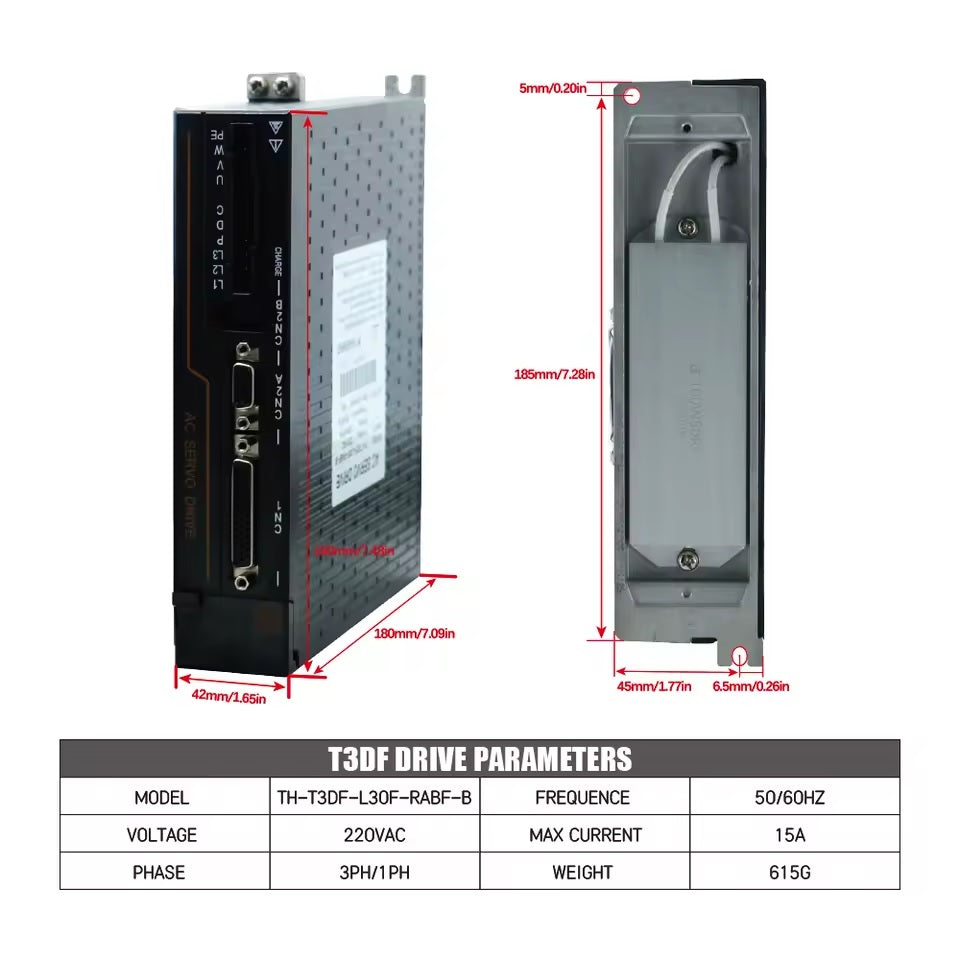

HL-T3DF AC Driver
3 Meter Encoder Cable, Power Cable & Control Signal Cable
Nema 52 (130mm x 130mm)
Shaft Diameter: 22mm
Key: 6mm
Rated Power: 1.5kW
Rated Voltage: 220v
Rotor Pole Pairs: 5
Rated Torque: 10Nm
Instantaneous Max Torque: 25Nm
Rated Speed: 1500rpm
Max Speed: 3000rpm
Rated Current: 6A
Instantaneous Max Current: 14.4A
Torque Coefficient: 1.67±10% Nm/A
Back EMF Coefficient: 56±10%x10 V/rpm
Line-line Resistance: 1.5Ω @ 20℃
Line-line Inductance: 4.37mH @20℃
Rotor inertia: 1.94x10^-3 V/rpm
Max radial load: 392N
Max axial load: 147N
Weight 10.2Kg
Encoder Resolution: 2500ppr
IP Rating: IP65
Induction Class: F
Insulation Resistance: More than 20m Ω DC500V
Insulation Withstand voltage: AC 1500V 1 minute
Click here to view the user manual.
