Product details

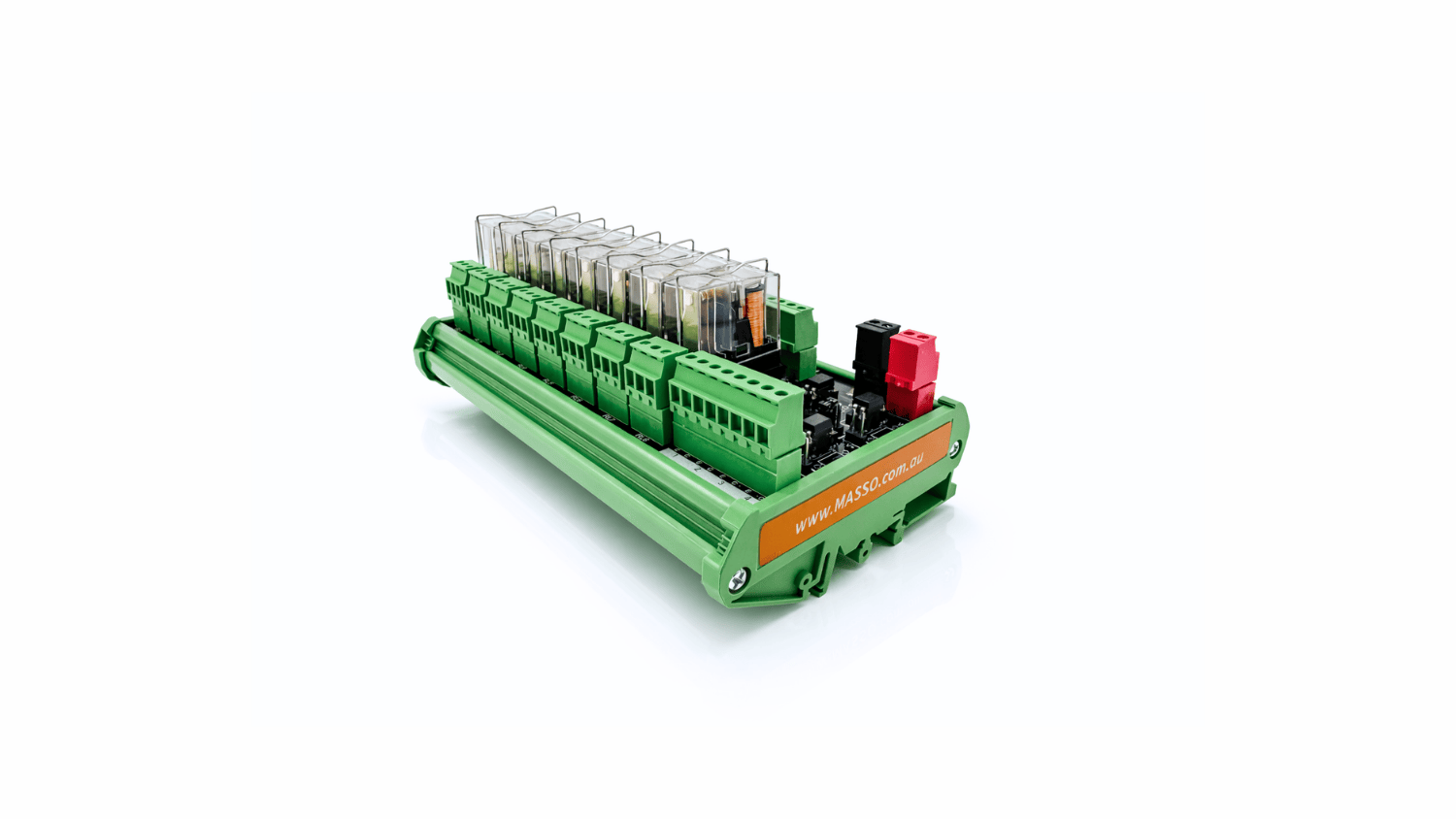

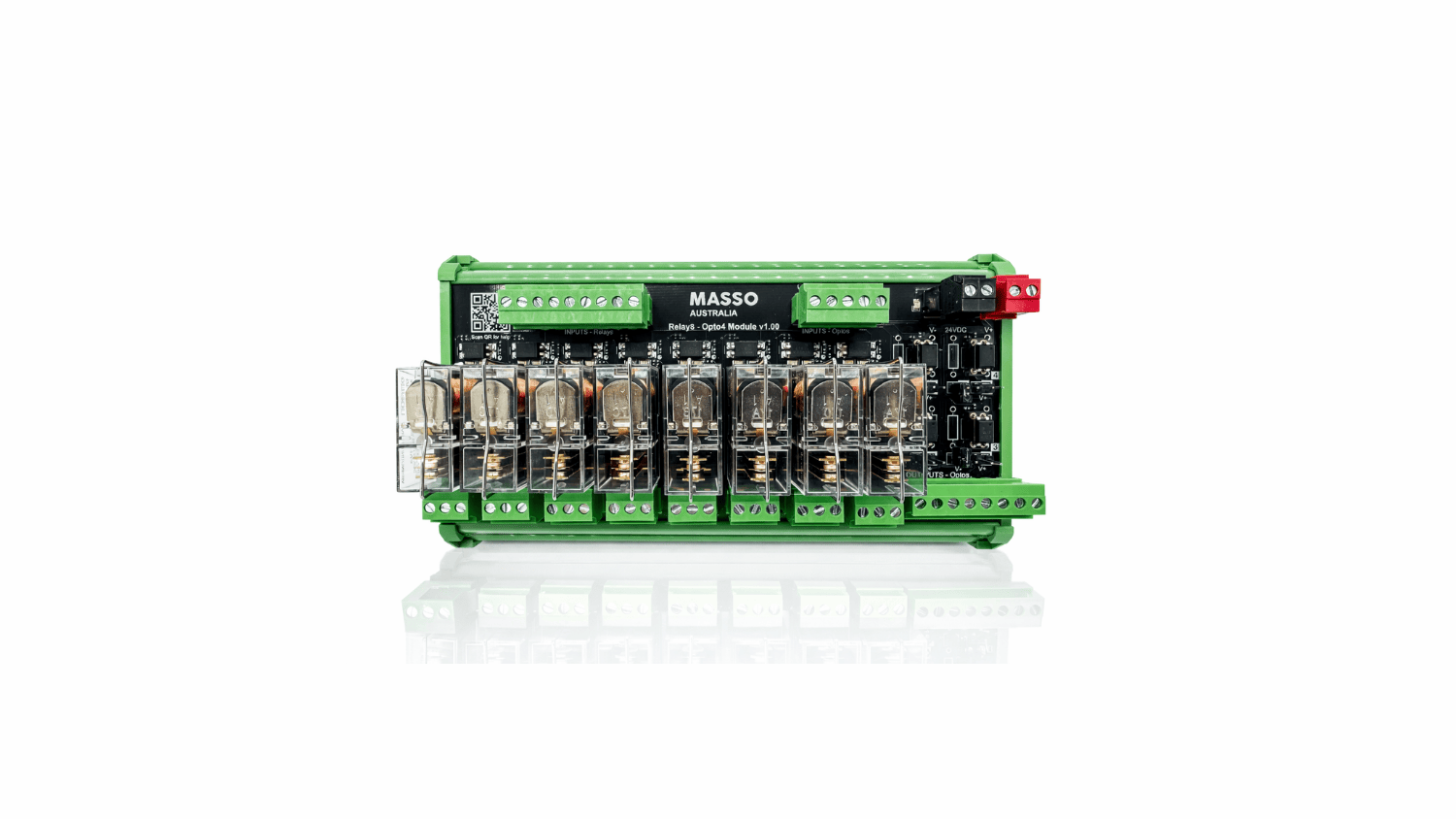

The MASSO Relay 8 – Opto 4 DIN Module connects your MASSO controller’s TTL outputs to relay switching and opto-isolated control outputs. With 8 independent relay channels and 4 opto-coupled outputs, it provides a practical interface for controlling CNC equipment such as coolant systems, vacuum tables and spindle control circuits.
Powered by a 24V DC supply, the module supports PLC and VFD control signals, while electrical isolation separates the controller from connected equipment. Multi-colour relay indicators make troubleshooting easier by showing normal operation or a failure to switch.
Includes:
-
1 × MASSO Relay 8 – Opto 4 DIN Module.
Specifications
-
Compatibility: Designed for use with MASSO controller TTL outputs.
-
Relay Outputs: 8 independent relay channels.
-
Relay Switching Rating: Up to 5A at 28V DC or 5A at 240V AC per relay.
-
Opto-Coupled Outputs: 4 isolated outputs for low-voltage control signals.
-
Input Signals: 3.3V / 5V TTL-compatible digital ON/OFF signals.
-
Power Supply Requirement: 24V DC.
-
Mounting: DIN rail mounting.
-
Status Indicators: Green indicates the relay is on and operating correctly; red indicates a control signal was received but the relay failed to switch.
-
Applications: Coolant control, vacuum systems, air solenoids, lighting, and interfacing with PLCs or VFD inputs.
