Product details

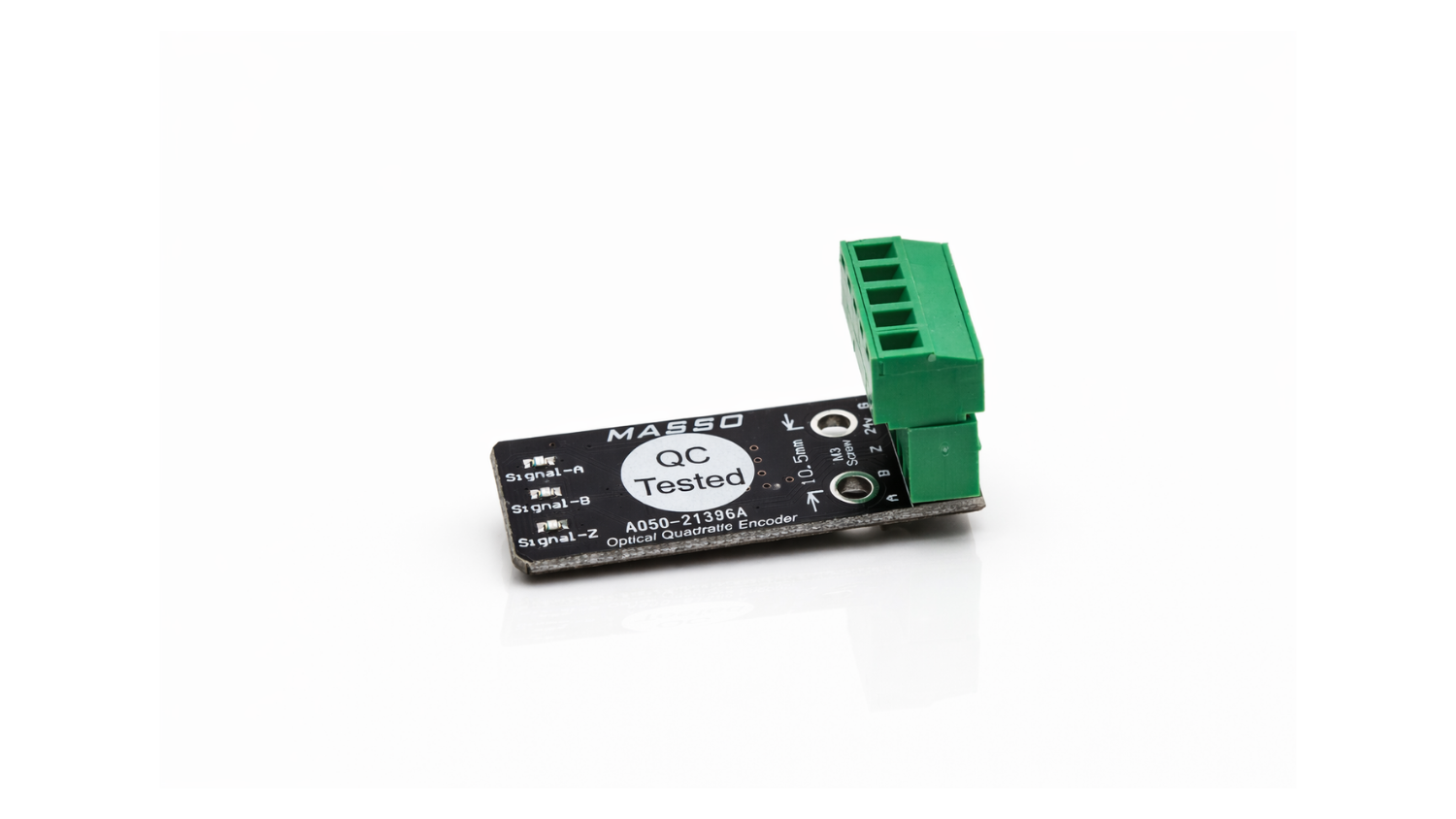

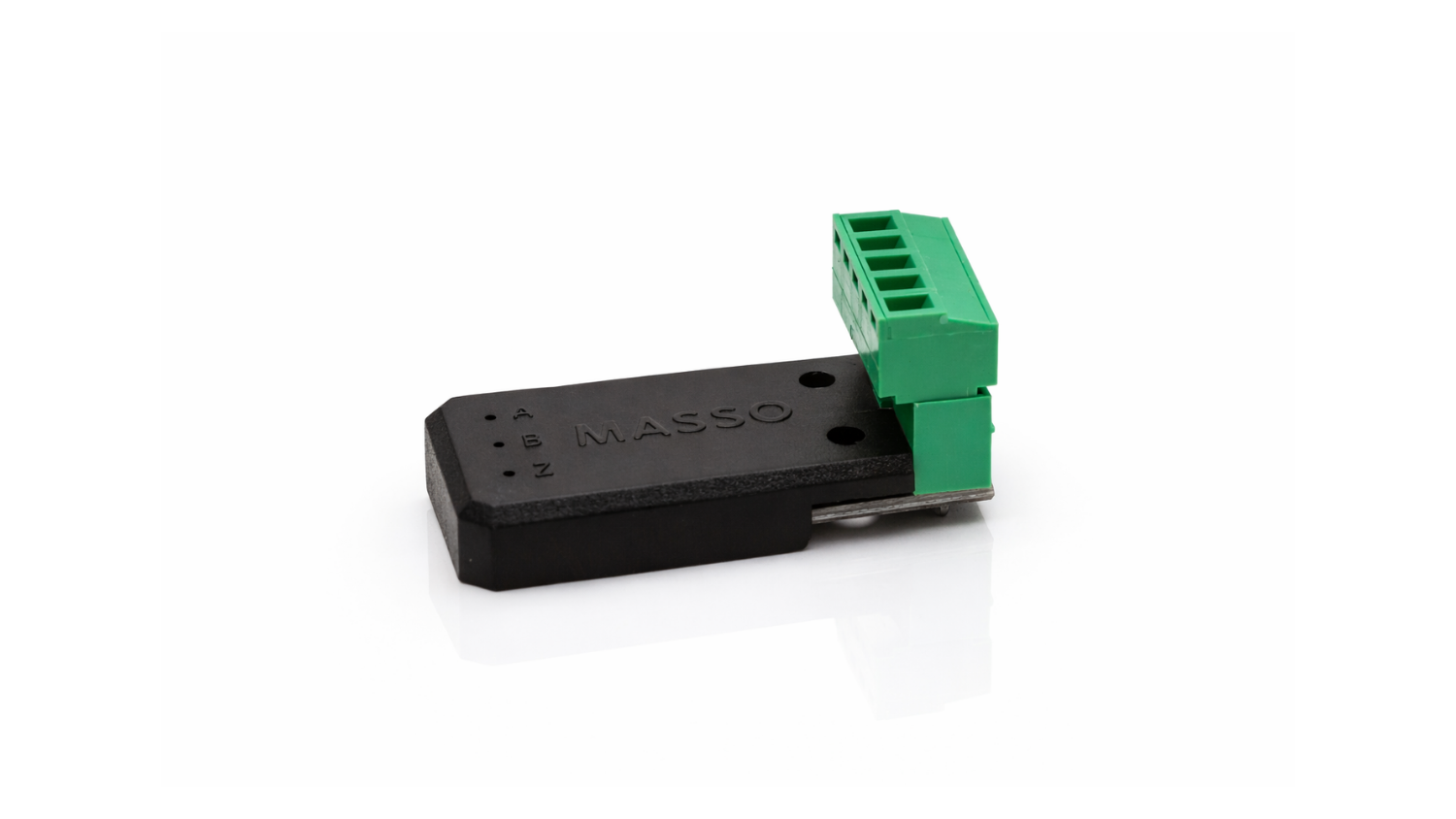

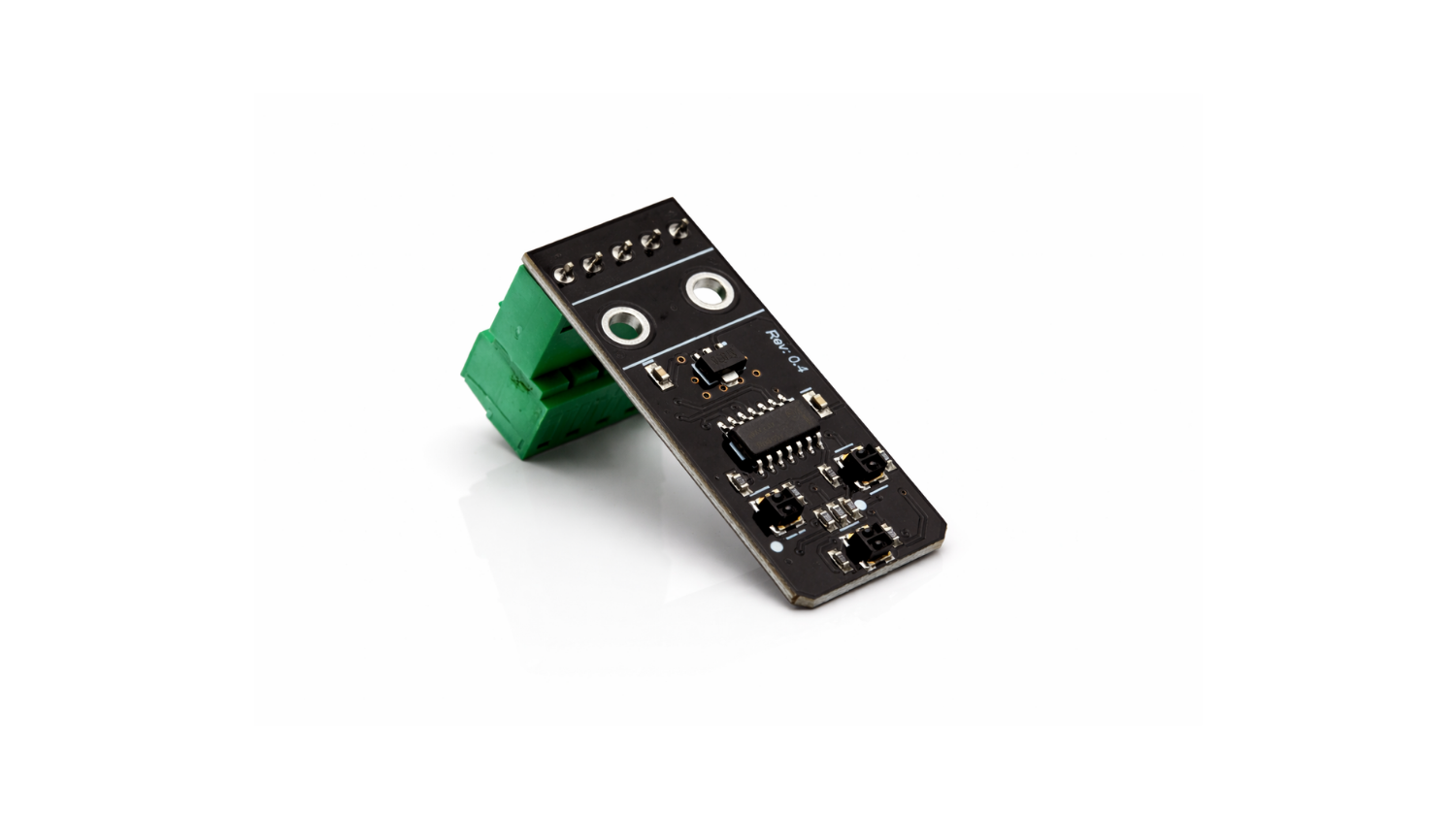

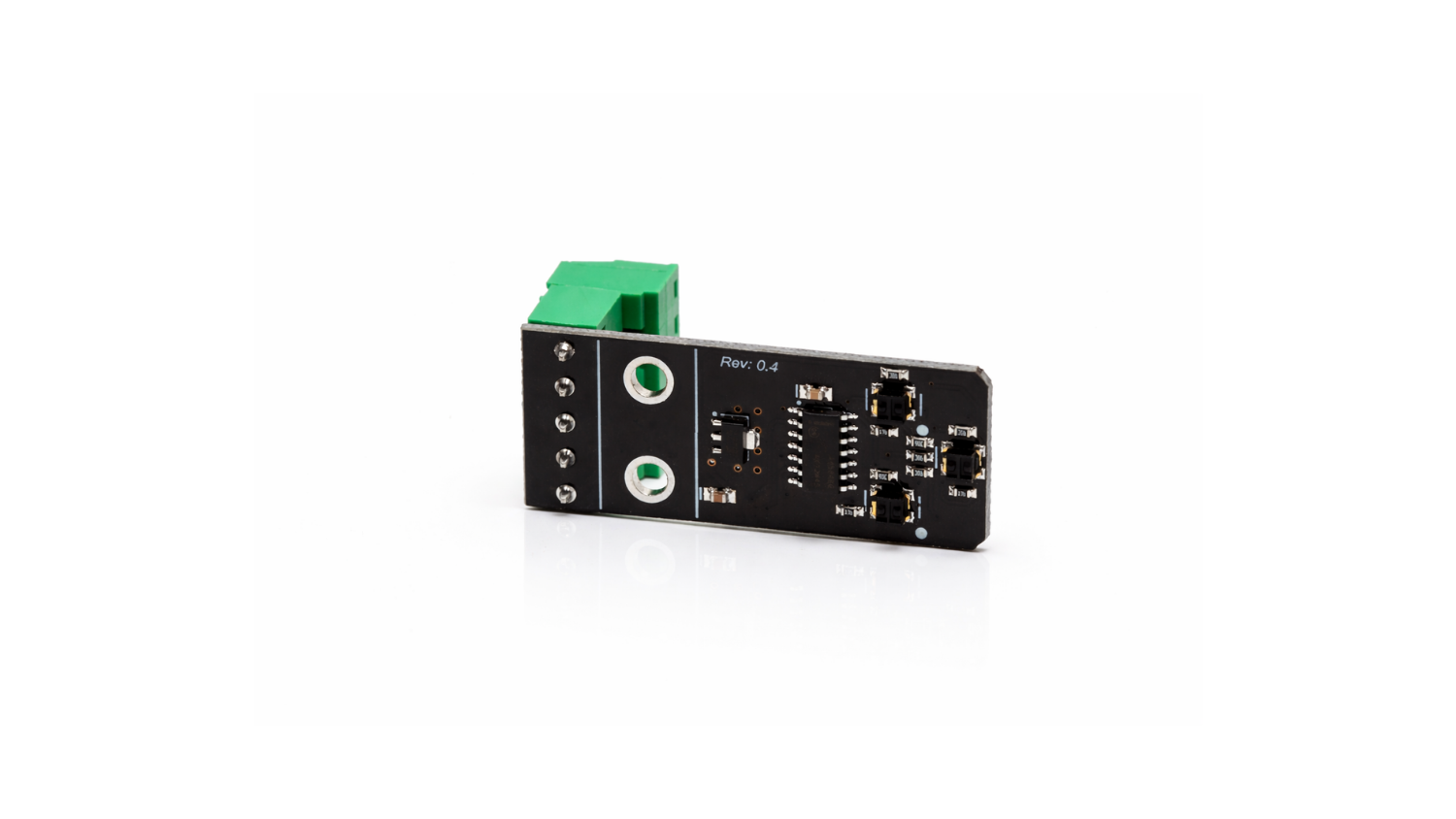

The MASSO Optical Encoder provides contactless spindle feedback for MASSO-controlled lathes, delivering quadrature signals for multi-pass threading. Its optical sensing design has no moving parts, providing accurate feedback without mechanical wear within the sensor.
Designed to mount in front of your lathe spindle pulley, the encoder reads a printed encoder disc label without requiring additional pulleys or timing belts. It operates from a 12–24V DC supply and mounts using M3 screws, making it suitable for new installations and lathe conversions.
Includes:
-
1 × MASSO Optical Encoder.
Specifications
-
Encoder Type: Contactless optical quadrature encoder.
-
Application: Lathe spindle feedback for multi-pass threading.
-
Operating Voltage: 12–24V DC.
-
Output Signal Levels: 0V LOW and 10V HIGH.
-
Sensing Mechanism: Optical, with no moving parts.
-
Mounting: M3 screws, positioned in front of the spindle pulley.
-
Encoder Pattern: Printed disc label generated to suit your pulley dimensions.
-
PPR Configuration: Set in MASSO to match the number of black segments on the label’s outer ring.
-
Operating Environment: Sensor must be protected from contact with dust and water.
Installation note: Prepare the encoder disc label using MASSO’s encoder disc generator and follow the manufacturer’s mounting and wiring instructions. Reversed power polarity will damage the sensor.
