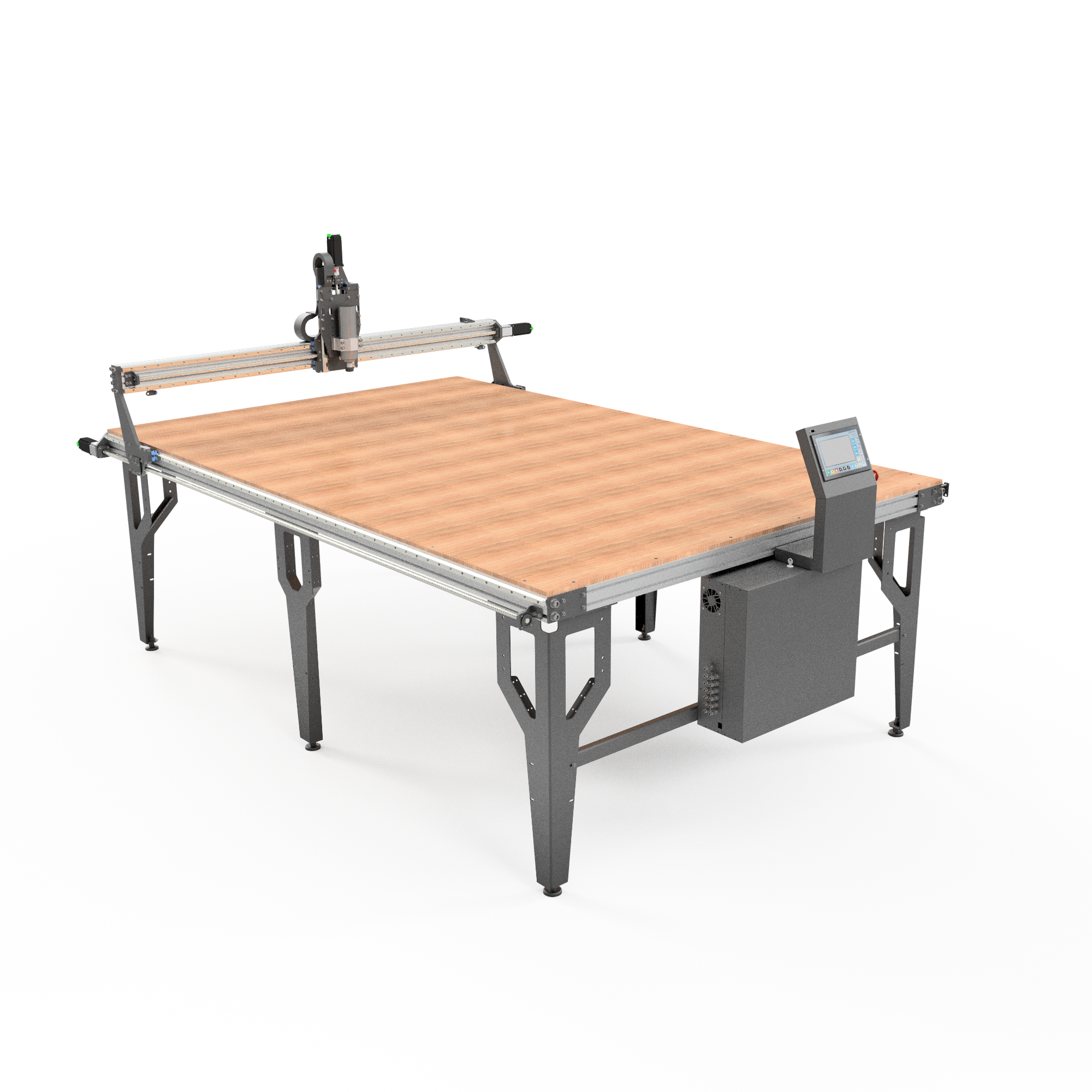

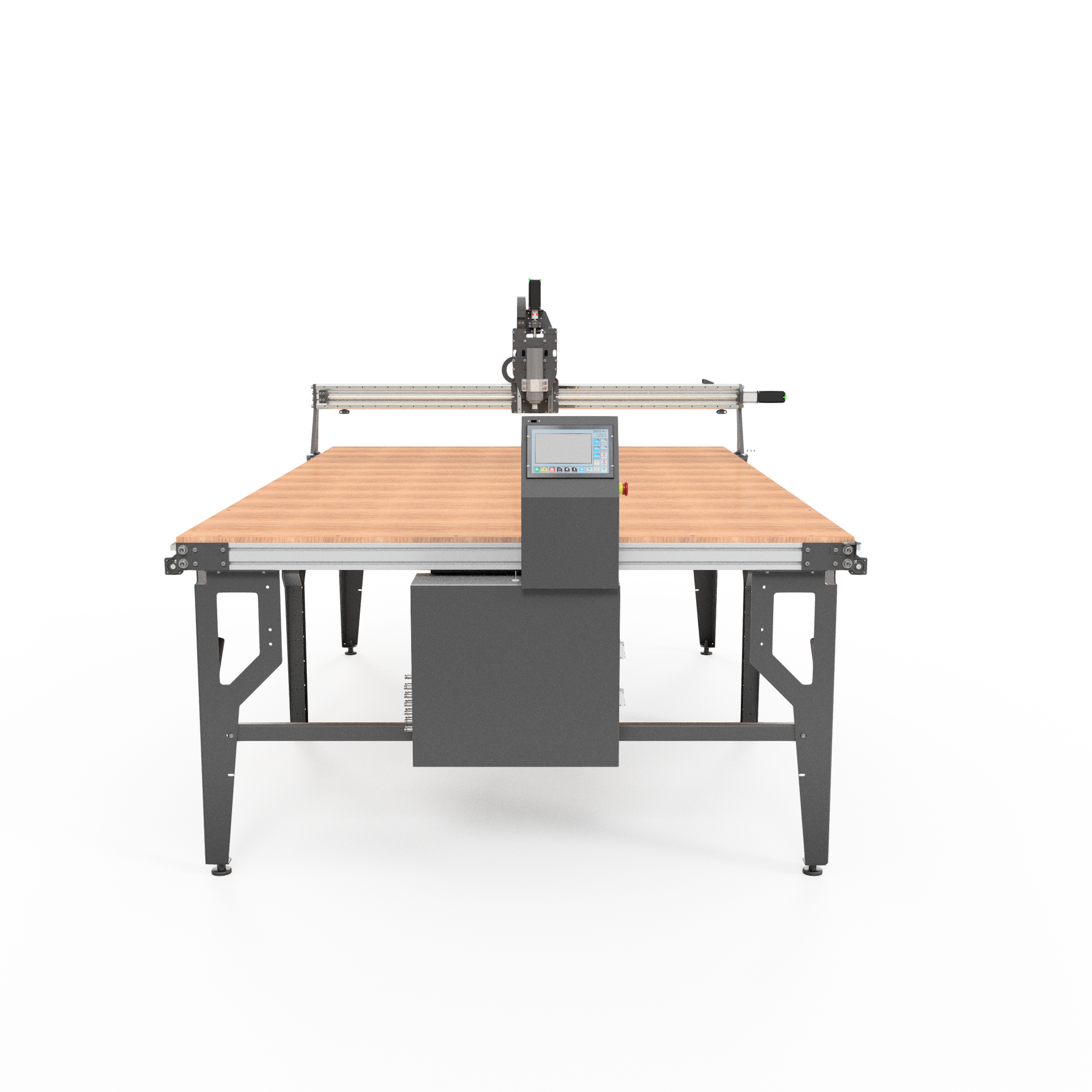

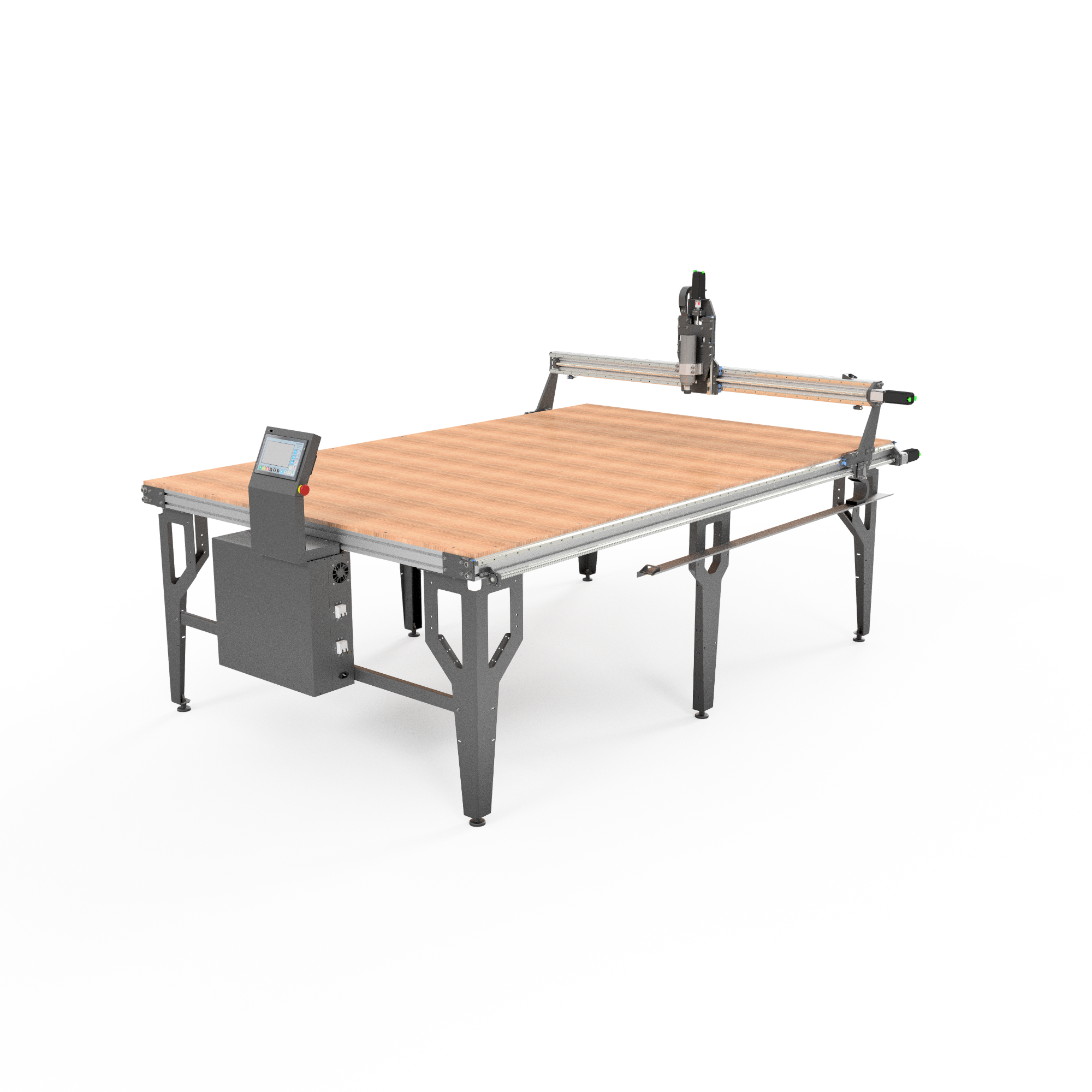

Pro Series 3020 CNC Router

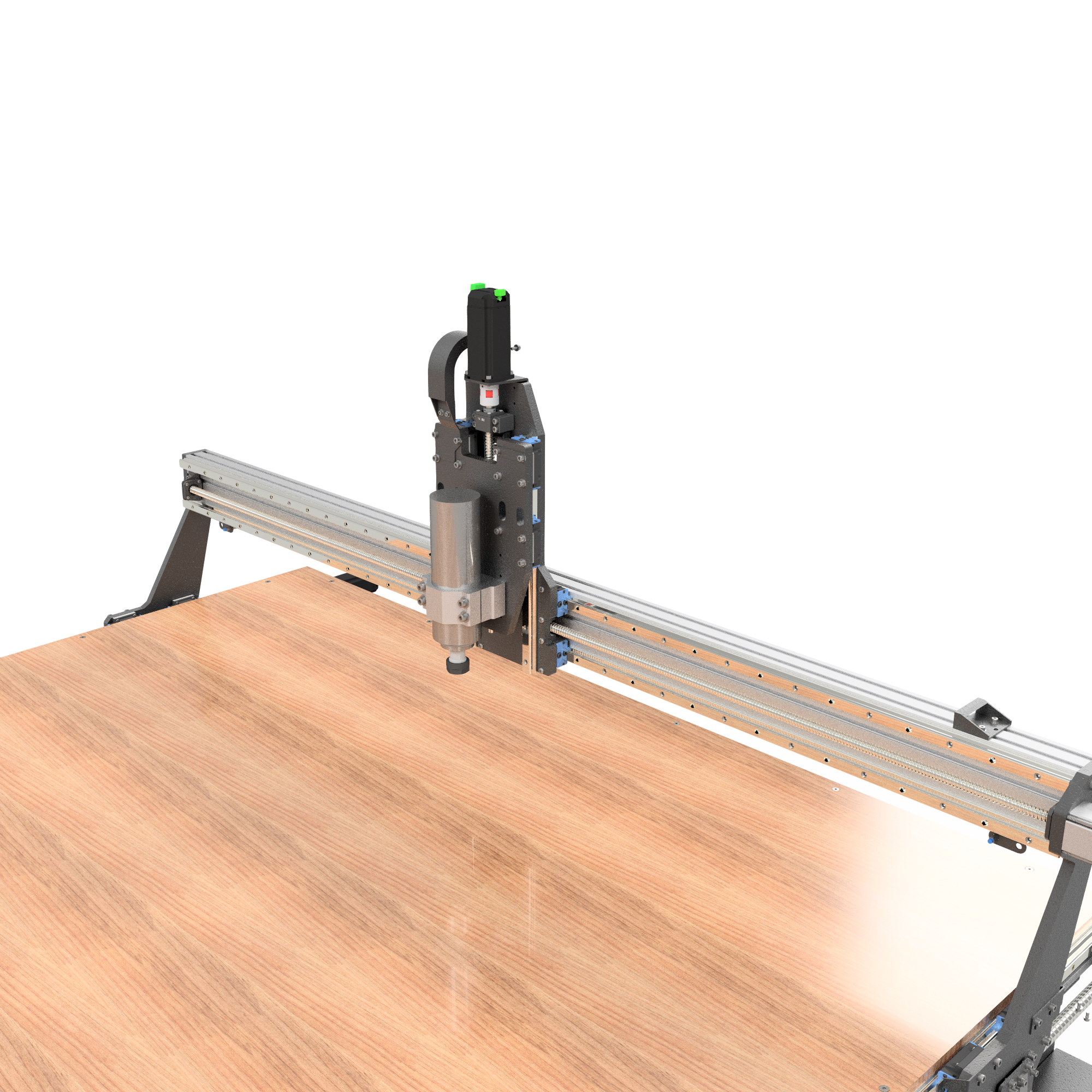

The Pro Series 3020 CNC Router is a large-format mid-range CNC machining solution designed for workshops, businesses and manufacturers requiring significantly greater working capacity while retaining the accuracy and component quality of the Pro Series. Built with HGR20 linear guide rails paired with HGW20CC bearing blocks on all axes, precision ball screw drive systems and a 2.2kW water-cooled spindle, the Pro Series 3020 provides a capable platform for routing, cutting, engraving and larger CNC machining applications.

As part of CNC Online’s Pro Series, the 3020 sits between our entry-level CNC machines and our top-of-the-range Elite Series, offering a balance of professional-grade components, performance and value. Its large 1940mm × 3000mm bed provides ample capacity for full-size sheets and larger workpieces, while 3Nm Nema 23 closed-loop motors with integrated drivers on all axes provide accurate and responsive motion control.

The Y axis is driven by an SFE2020 ball screw, while the X axis uses an SFE1616 ball screw and the Z axis an SFU1605 ball screw. Machine operation is handled by the DDCS V4.1 3-Axis Offline CNC Controller, allowing the router to operate independently without requiring a dedicated computer during machining. Adjustable mounting feet allow the machine to be properly levelled during installation for improved stability and consistent machining performance.

Please note that machines include a 6-8 week lead time.

Includes:

• 1 × Pro Series 3020 CNC Router

Optional Extras

The following optional extras can be added to your machine depending on your application and requirements:

• CW3000 Water Chiller

• Dust Shoe

• 3kW Water Cooled Spindle Kit Upgrade

• Air-Cooled Spindle Exchange

• 4th Axis Upgrade

• 3D Touch Probe

• Manual Oil Pump Kit

Please contact us at sales@cnconline.co.za for pricing, compatibility, and more information on optional extras for your selected machine.

Specifications
